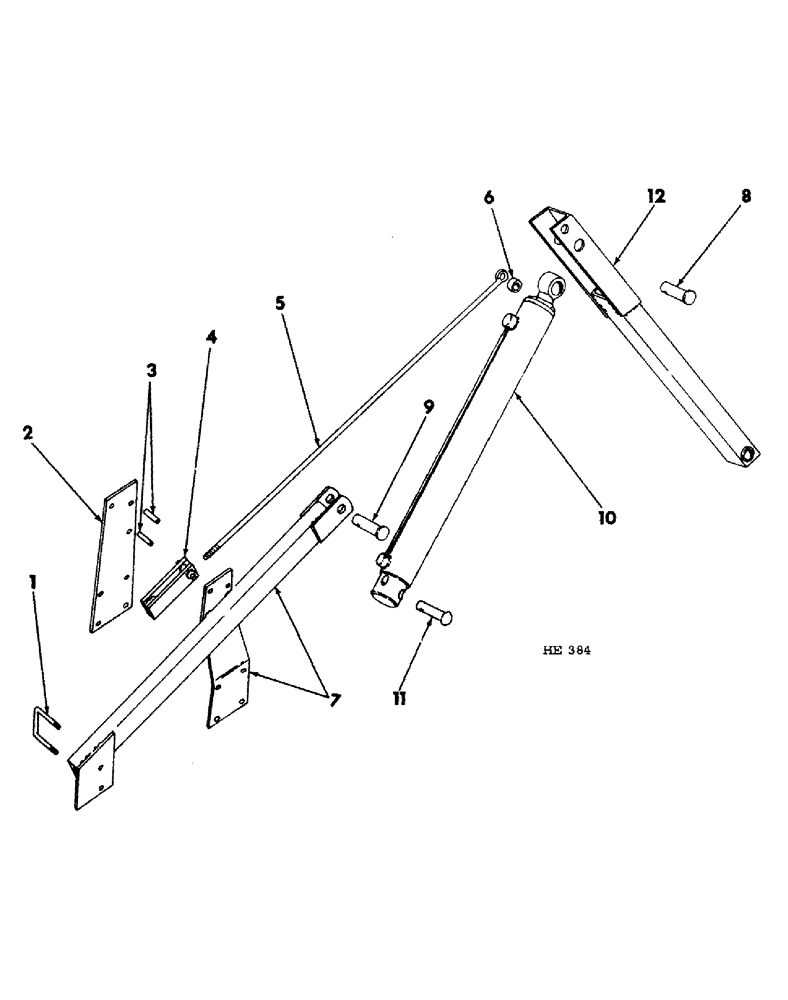

Запчасти Case IH 55 (12-22) - WING LIFT (SPECIAL)

1

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

outer control arm clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

597377R1

BAR, outer control arm support

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 X 5-1/2" TYPE 2 C-Z BOLT

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

3

663365R1

SPACER,1/2" Pipe x 2 1/4"

outer control arm pipe

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 X 3-1/2" TYPE 2 C-Z BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

597379R1

HOLDER

wing lift

1шт.

5

597382R1

ROD, wing lift

2шт.

280954

NUT,3/4"-10, G5

4шт.

23471S

WASHER

25/32 X 1-1/2 X 7 GA WASHER

2шт.

6

604577R1

SPACER

BUSHING, wing lift rod

2шт.

18731R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2", Gr 2

3/4 X 2" C-Z CRG BOLT

2шт.

569875R1

SQ HOLE WASHER

25/32 SQ HOLE X 1-3/4 X 16 GA WASHER

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

7

597372R1

ARM, wing lift outer control

2шт.

8

936587R91

PIN

hyd cyl lift upper

2шт.

Q3482

WASHER

1-5/32 X 1-3/4 X 11 GA WASHER

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

9

597054R1

PIN

outer control arm

2шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

2шт.

10

384474R92

CYLINDER

wing lift hyd (For component part refer to "wing lift hydraulic cylinder")

1шт.

11

594608R1

PIN

hyd cyl lift lower

2шт.

Q3482

WASHER

1-5/32 X 1-3/4 X 11 GA WASHER

4шт.

119202

PIN

3/8 X 2-1/4" C-PIN

2шт.

12

597369R1

ARM, wing lift control

2шт.

24003R1

HEADED PIN

1 X 4-1/4" CZ STD-HD-DLD PIN

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.
