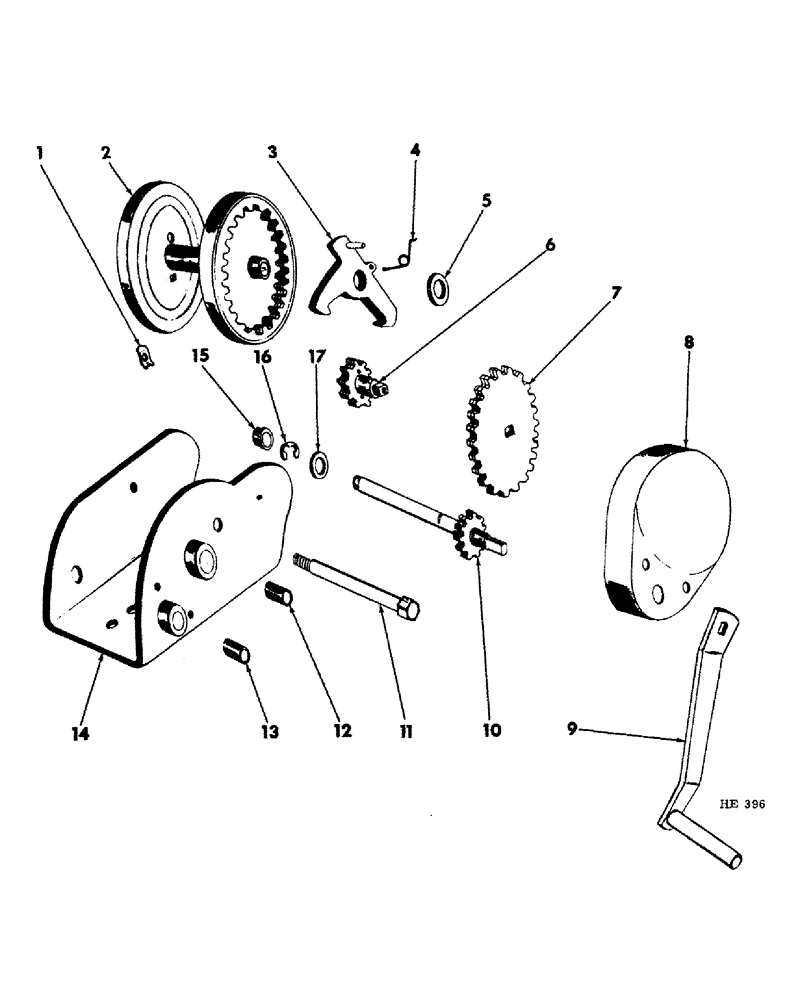

Запчасти Case IH 55 (12-20) - HAND WINCH

597637R91

WINCH

wing lift hand (Composed of all parts listed below, unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" TYPE 2 C-Z BOLT

2шт.

Not part of hand winch

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

1шт.

Not part of hand winch

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA C-Z WASHER

1шт.

Not part of hand winch

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

Not part of hand winch

1шт.

1

598043R1

CLAMP

reel cable

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

1/4 X 5/8" C-Z CRG BOLT

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

598042R1

REEL

cable

1шт.

3

598044R1

RATCHET, cable reel

1шт.

4

598045R1

SPRING, reel ratchet

1шт.

5

460908R1

WASHER

17/32 x 1-1/2 x 11 ga c-z

1шт.

6

598046R1

SHAFT, reel drive

1шт.

7

598047R1

GEAR

30T drive shaft

1шт.

106969R1

WASHER

11/32 X 1-1/4 X 16 GA C-Z WASHER

1шт.

243120R1

SCREW

5/16 X 1/2" NYLON-LK-BOLT

1шт.

8

598048R1

COVER

gear

1шт.

598052R1

GEAR COVER SCREW

2шт.

9

598050R1

ARM

HANDLE, winch

1шт.

145009

NUT

1/2" - NF TYPE LJ LK-NUT

1шт.

10

598049R1

SHAFT, back drive

1шт.

11

598051R1

BOLT

cable reel shoulder

1шт.

9416107

3/8" LK-NUT

1шт.

12

598055R1

DRIVE BUSHING

BUSHING, 3/4" upper

1шт.

13

598054R1

BUSHING

9/16" lower

1шт.

14

598053R11

BASE, hand winch (Includes 598054R1, 598055R1 & 598056R1, bushings)

1шт.

15

598056R1

BUSHING

1/2" back drive shaft

1шт.

16

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, , back drive shaft #62, .480" Dia, E-Type

1шт.

17

472635R1

WASHER

19/32 x 1 x 16 ga c-z

1шт.
