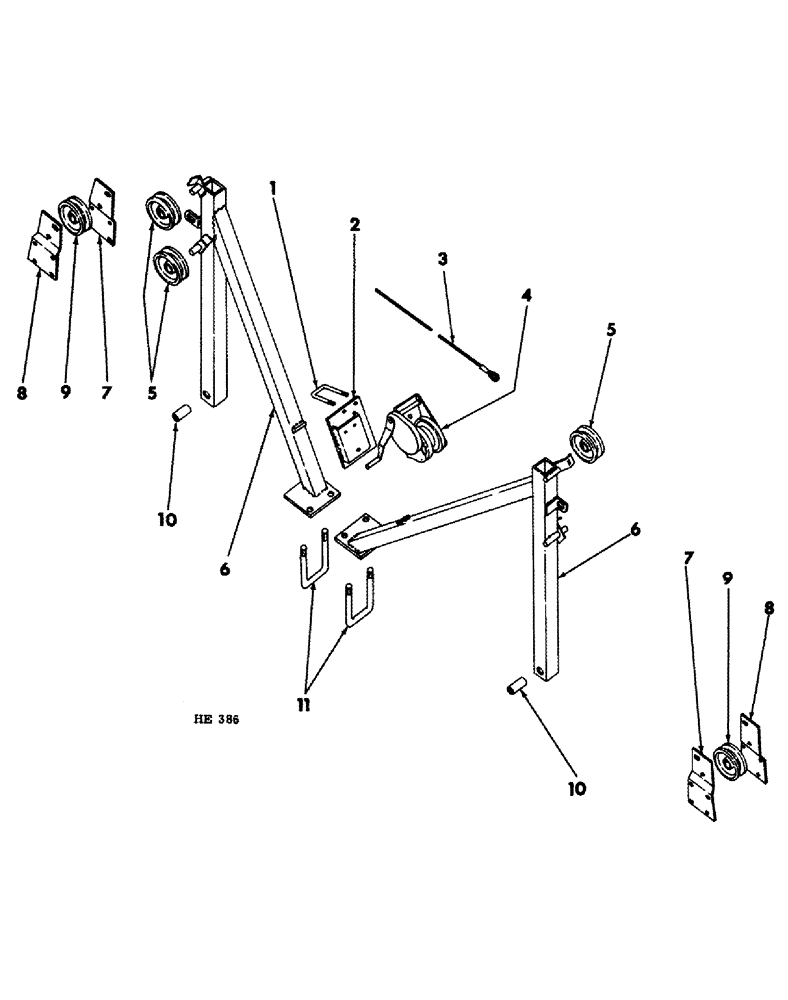

Запчасти Case IH 55 (12-18) - HAND WINCH WING LIFT (SPECIAL)

1

591609R1

BOLT

U-BOLT, winch bracket clamping

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

597633R1

BRACKET, hand winch

1шт.

3

597638R1

CABLE

hand winch

1шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA C-Z WASHER

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

4

597637R91

WINCH

wing lift hand (For component parts refer to "hand winch")

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" TYPE 2 C-Z BOLT

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" TYPE 2 C-Z BOLT

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA C-Z WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

5

605885R1

PULLEY

wing lift frame cable

3шт.

178375R1

WASHER

25/32 X 1-1/4 X 16 GA C-Z WASHER

6шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

3шт.

6

597625R1

FRAME, wing lift

2шт.

7

597639R1

SUPPORT, outer pulley

2шт.

8

597640R1

SUPPORT, outer pulley

2шт.

445608R1

1/2 X 5-1/2" TYPE 2 C-Z BOLT

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

518505R1

HEADED PIN,3/4" x 3"

3/4 X 3" STD-HD-DLD SPECIAL PIN

2шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA C-Z WASHER

2шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

2шт.

9

605885R1

PULLEY

wing lift outer

2шт.

518505R1

HEADED PIN,3/4" x 3"

3/4 X 3" STD-HD-DLD SPECIAL PIN

2шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA C-Z WASHER

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

10

597632R1

SPACER, wing lift frame bolt

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 X 4-1/2" TYPE 2 C-Z BOLT

2шт.

608081R1

WASHER

21/32 X 1-3/4 X 11 GA C-Z WASHER

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

2шт.

11

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

lift frame clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
