Запчасти Case IH 55 (12-16) - WING WHEEL CABLE LIFT

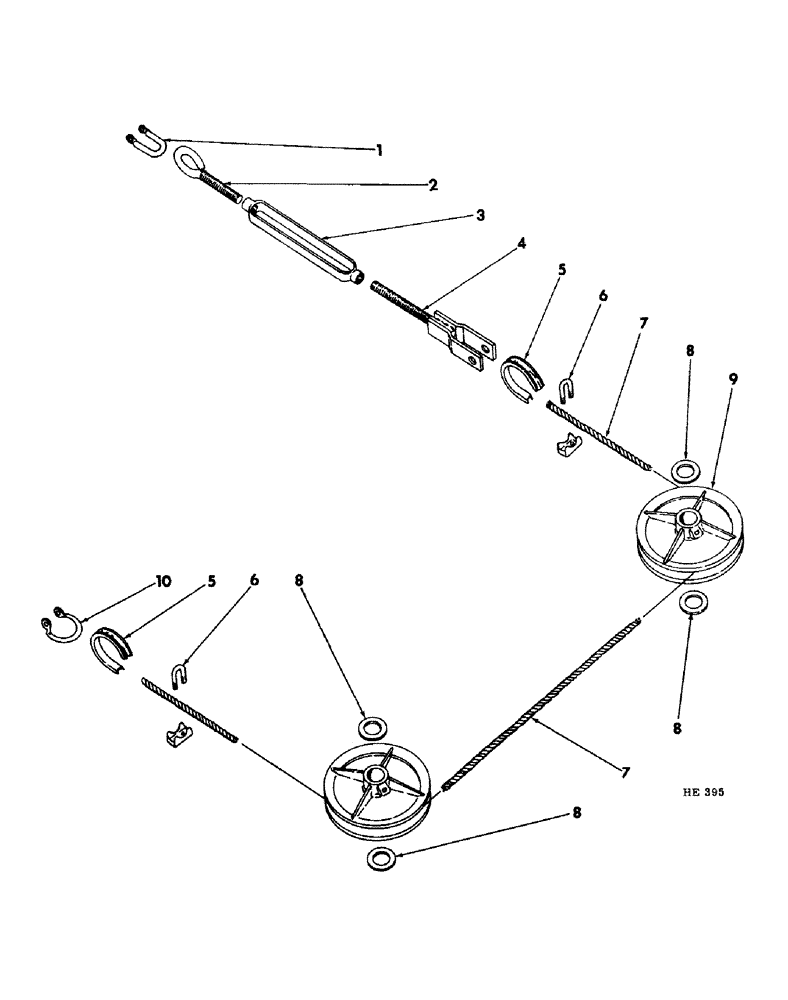

Схема запчастей Case IH 55 - (12-16) - WING WHEEL CABLE LIFT

Артикул

Название

Примечание

Количество

1

597366R1

CLEVIS, lift cable rear

2шт.

Q838

HEADED PIN,5/8" x 3 1/4"

5/8 X 3-1/4" STD-HD-DLD PIN

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

597365R1

BOLT

lift cable eye rear

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

2шт.

3

M73714

BUCKLE

TURNBUCKLE, lift cable

2шт.

4

605833R91

CLEVIS

ROD, front lift cable

2шт.

H2808

HEADED PIN,5/8" x 2"

5/8 x 2" std-hd-dld pin

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

597462R1

CUP

THIMBLE, lift cable

4шт.

6

605827R91

CLIP

CLAMP, lift cable

12шт.

7

597363R1

CABLE, lift (22 & 25 ft machine)

2шт.

7

597364R1

CABLE

lift (31 ft machine)

2шт.

8

551769R1

WASHER

1-13/32 x 2 x 16 ga

8шт.

9

605657R1

PULLEY

lift cable

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

4шт.

10

605824R91

SHACKLE

cable anchor

2шт.

Выбрано товаров: 18
