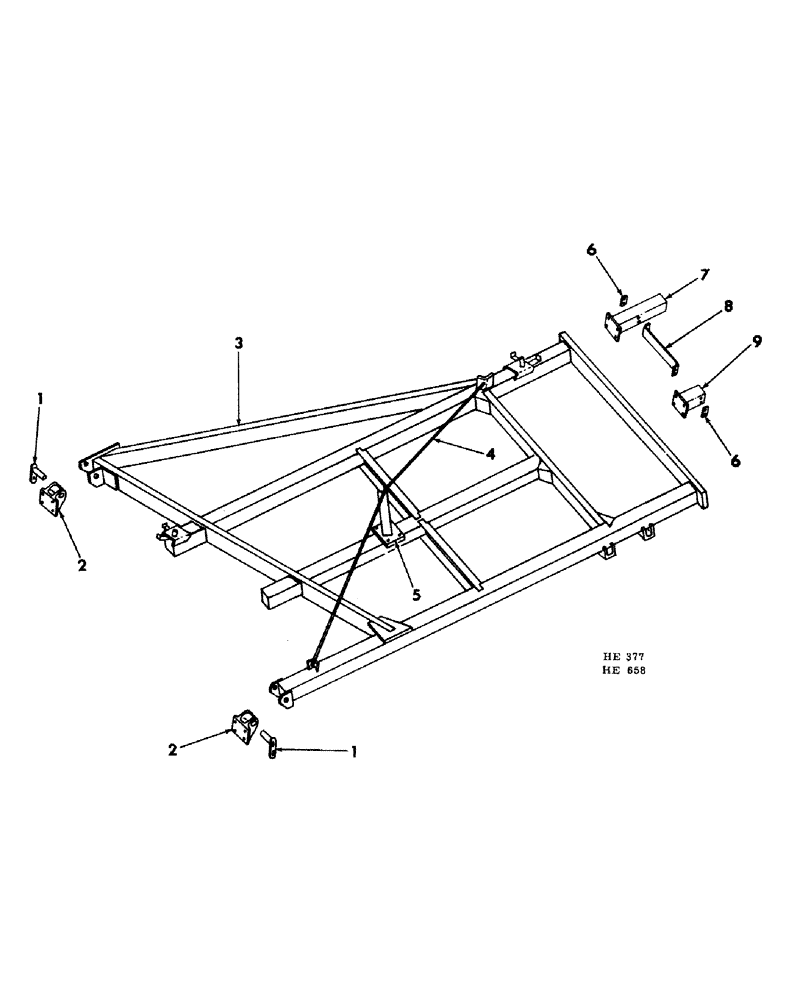

Запчасти Case IH 55 (12-15) - WING FRAME & EXTENSION (31 FT MACHINE)

1

598462R1

PIN

hinge bracket

4шт.

156480R1

SLEEVE

PIN BAR BUSHING

4шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA C-Z WASHER

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" TYPE 2 C-Z BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

597291R1

BRACKET

wing frame hinge

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" TYPE 2 C-Z BOLT

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z LK-WASHER

16шт.

3

598474R1

FRAME, wing RH shown

1шт.

3

598475R1

FRAME, wing LH

1шт.

4

598484R1

ROD, wing frame truss

2шт.

280954

NUT,3/4"-10, G5

8шт.

5

598485R1

SUPPORT, truss rod

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" TYPE 2 C-Z BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

6

608339R1

BLOCK

extension support (Special)

4шт.

22477R1

5/8 X 5-3/4" C-Z CRG BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

608332R91

EXTENSION

frame second (Special)

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

5/8 X 3-1/4" TYPE 2 C-Z CRG BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

608338R1

STRAP

extension connecting (Special)

2шт.

9

608331R91

EXTENSION

frame first (Special)

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 X 3-1/4" TYPE 2 C-Z BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
