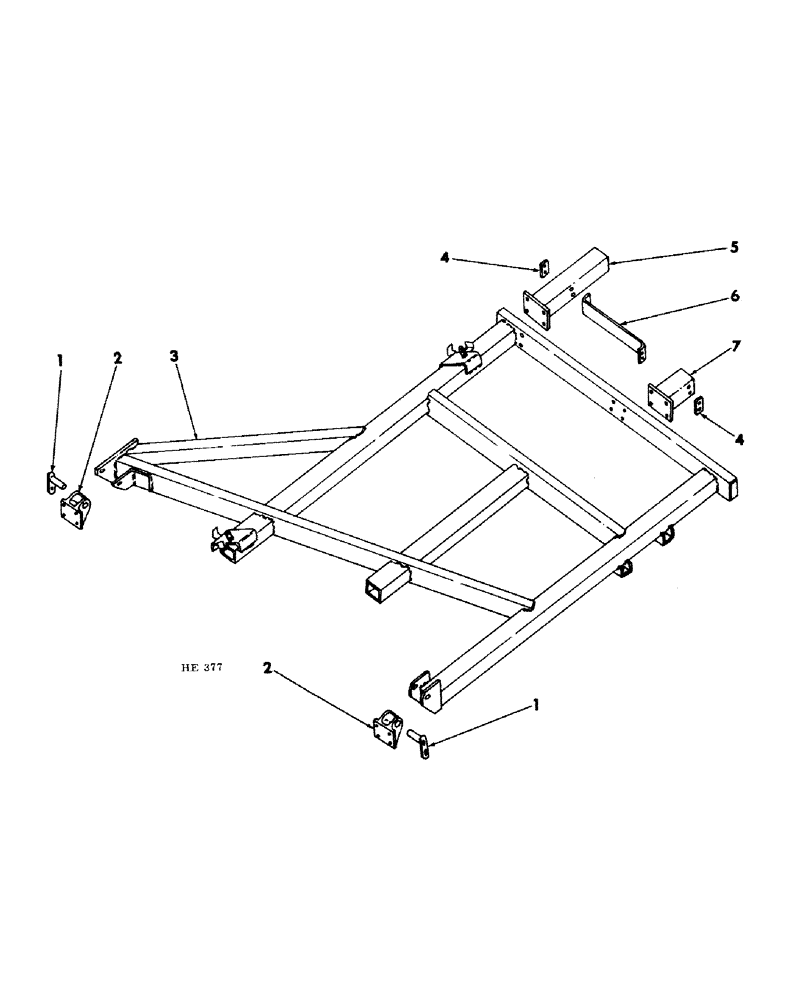

Запчасти Case IH 55 (12-14) - WING FRAME & EXTENSION (22 & 25 FT MACHINE)

1

598462R1

PIN

hinge bracket

4шт.

156480R1

SLEEVE

PIN BAR BUSHING

4шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA C-Z WASHER

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" TYPE 2 C-Z BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

597291R1

BRACKET

wing frame hinge

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" TYPE 2 C-Z BOLT

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z LK-WASHER

16шт.

3

597266R1

FRAME, wing LH

1шт.

3

597267R1

FRAME, wing RH shown

1шт.

4

608339R1

BLOCK

extension support (Special)

2шт.

22477R1

5/8 X 5-3/4" C-Z CRG BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608332R91

EXTENSION

frame second (Special)

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

5/8 X 3-1/4" TYPE 2 ZINC CRG BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

608338R1

STRAP

extension connecting (Special)

2шт.

7

608331R91

EXTENSION

frame first (Special)

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 X 3-1/4" TYPE 2 C-Z BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
