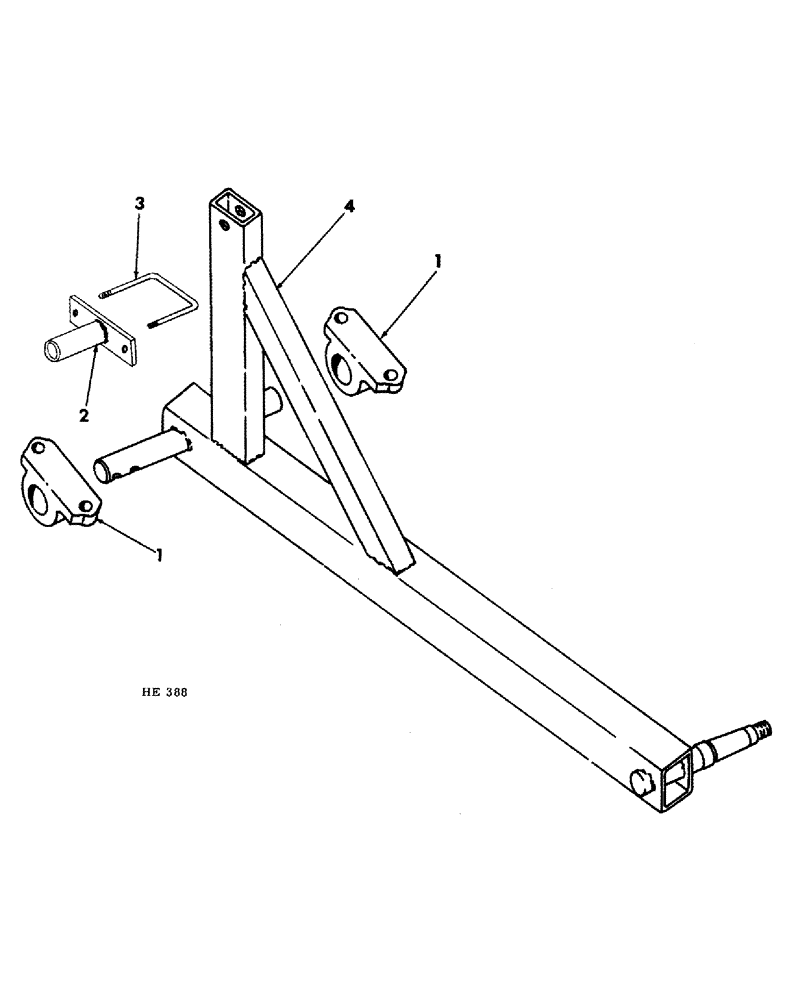

Запчасти Case IH 55 (12-13) - WING FRAME AXLE

1

597346R1

BEARING CARRIER

axle hanger bracket

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

NLS

NO LONGER SERVICED

5/8 X 1-1/2" TYPE 2 C-Z BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

2

598905R1

STOP ASSEMBLY, axle (1968 & since)

2шт.

3

598903R1

"U"-BOLT, stop connecting (1968 & since)

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

AXLE, wing frame (LH) (1967 to 1968) (Order 1 - 598908R1 axle w/1 - 598905R1 stop assembly, 1 - 598903R1 "U" bolt, 2 - 120378 nut, 2 - 120384 lk-washer)

1шт.

4

598908R1

AXLE, wing frame (LH shown) (1968 & since)

1шт.

4

AXLE, wing frame (RH) (1967 to 1968) (Order 1 - 598909R1 axle w/1 - 598905R1 stop assembly, 1 - 598903R1 "U" bolt, 2 - 120378 nut, & 2 - 120384 lk-washer)

1шт.

4

598909R1

AXLE, wing frame (RH) (1968 & since)

1шт.
