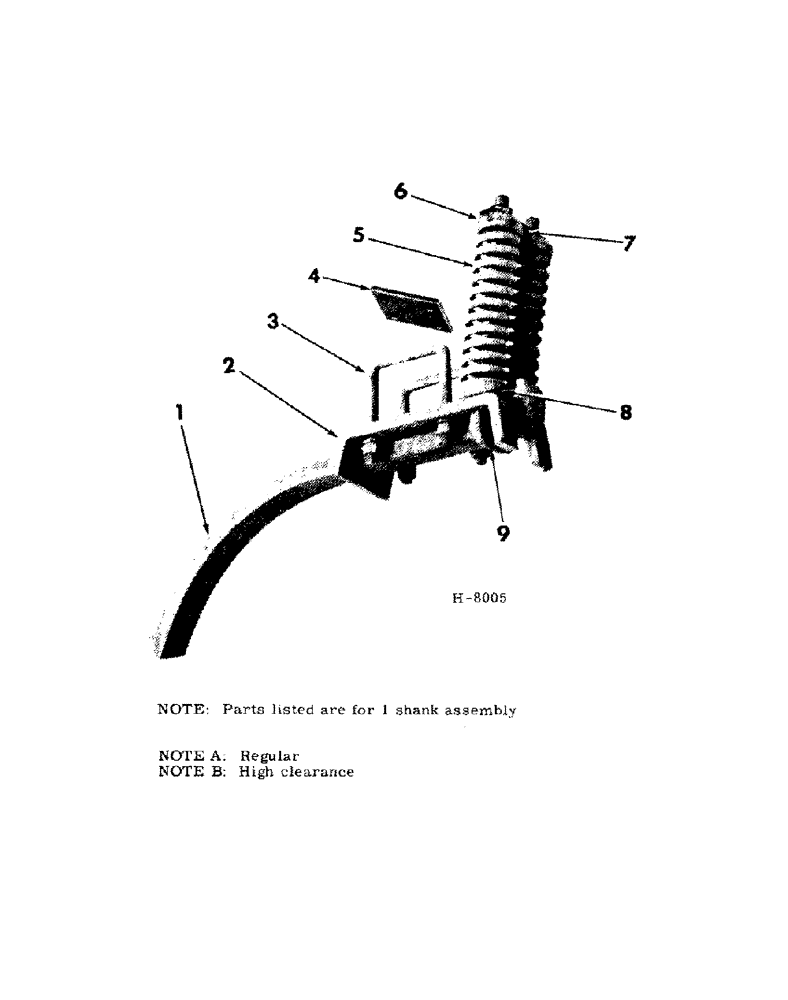

Запчасти Case IH 55 (12-11) - CUSHION SHANK

1

608341R1

SHANK

tooth (Note A)

1шт.

1

609130R1

SHANK

tooth (Note B)

1шт.

2

608346R1

BRACKET

clamping (Note A)

1шт.

2

609131R1

BRACKET

clamping (Note B)

1шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

clamping bracket (Note A)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

592239R1

BLOCK

clamping (Note B)

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" TYPE 2 C-Z BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

608347R1

SPRING

trip (Note A)

2шт.

5

609133R1

VALVE SPRING

SPRING, trip (Note B)

2шт.

6

608348R1

RETAINER

spg upper

2шт.

7

591755R1

STRIP

cushion spg tie

1шт.

8

608349R1

RETAINER

spg lower

2шт.

9

602331R1

BOLT,U, 3/4" - 10 x 13.20"

U-BOLT, spring (Note A)

1шт.

9

609132R1

U-BOLT,U, 3/4" - 10 x 14.6"

spring (Note B)

1шт.

280954

NUT,3/4"-10, G5

2шт.
