Запчасти Case IH 55 (07-06[A]) - HIGHWAY SAFETY LIGHTING OR SLOW MOVING VEHICLE EMBLEM MOUNTING PARTS

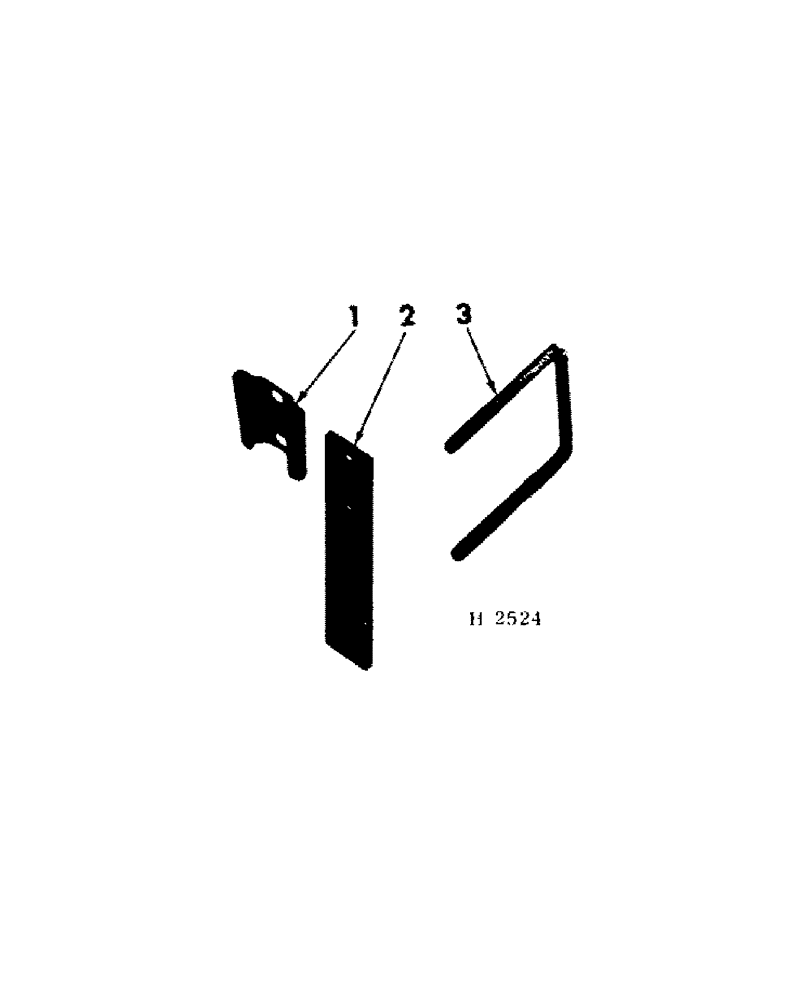

Схема запчастей Case IH 55 - (07-06[A]) - HIGHWAY SAFETY LIGHTING OR SLOW MOVING VEHICLE EMBLEM MOUNTING PARTS

Артикул

Название

Примечание

Количество

1

398976R1

BRACKET

warning lamp mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

134238R1

WASHER

11/32 X 7/8 X 16 GA. WASHER

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

608328R1

BAR

warning lamp connecting

1шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

connecting bar

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

Выбрано товаров: 8
