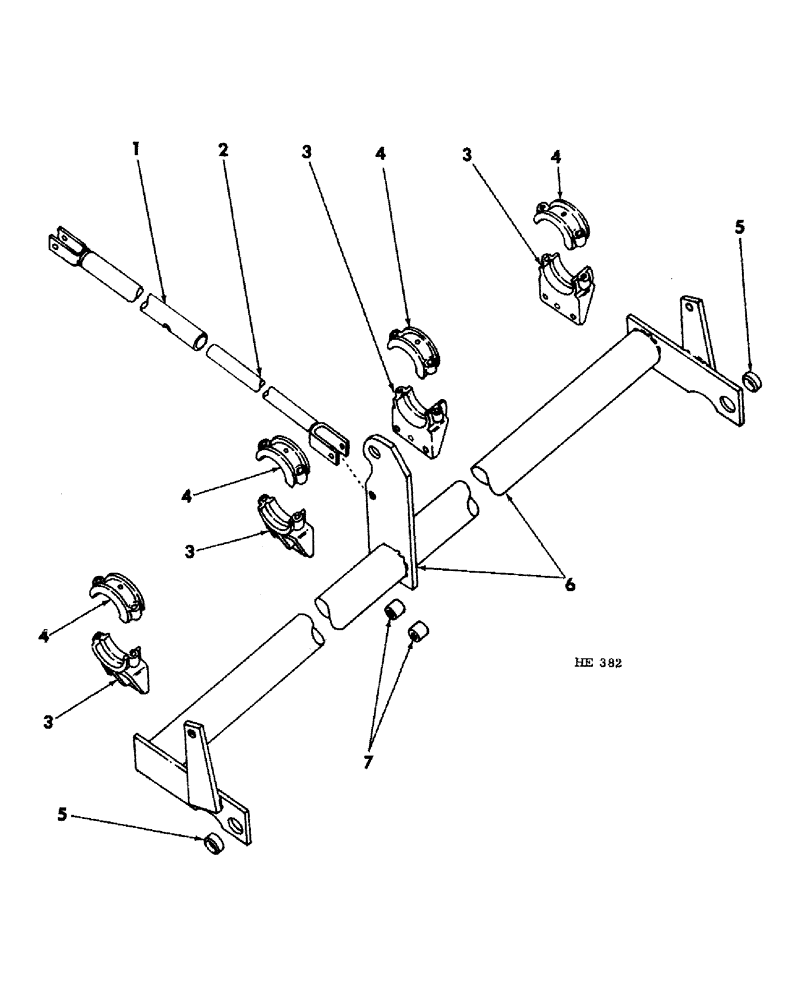

Запчасти Case IH 55 (12-09) - ROCKSHAFT (25 & 31 FT MACHINE)

1

597344R1

TUBE, rockshaft transport lk 29.62" Length

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

3/4 X 2-1/2" STD-HD-DLD SPECIAL PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

597341R1

ROD, rockshaft transport lk

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

3/4 X 2-1/2" STD-HD-DLD SPECIAL PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

3

605663R2

BRACKET

BEARING, rockshaft

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" TYPE 2 C-Z BOLT

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

6шт.

4

605664R1

CAP

rockshaft brg

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

8шт.

5

591525R1

BUSHING

main wheel lift bar

2шт.

6

597333R2

ROCKSHAFT (Includes 591525R1, bushings)

1шт.

7

666463R1

SPACER, center brg

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 X 3-1/2" TYPE 2 C-Z BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

2шт.
