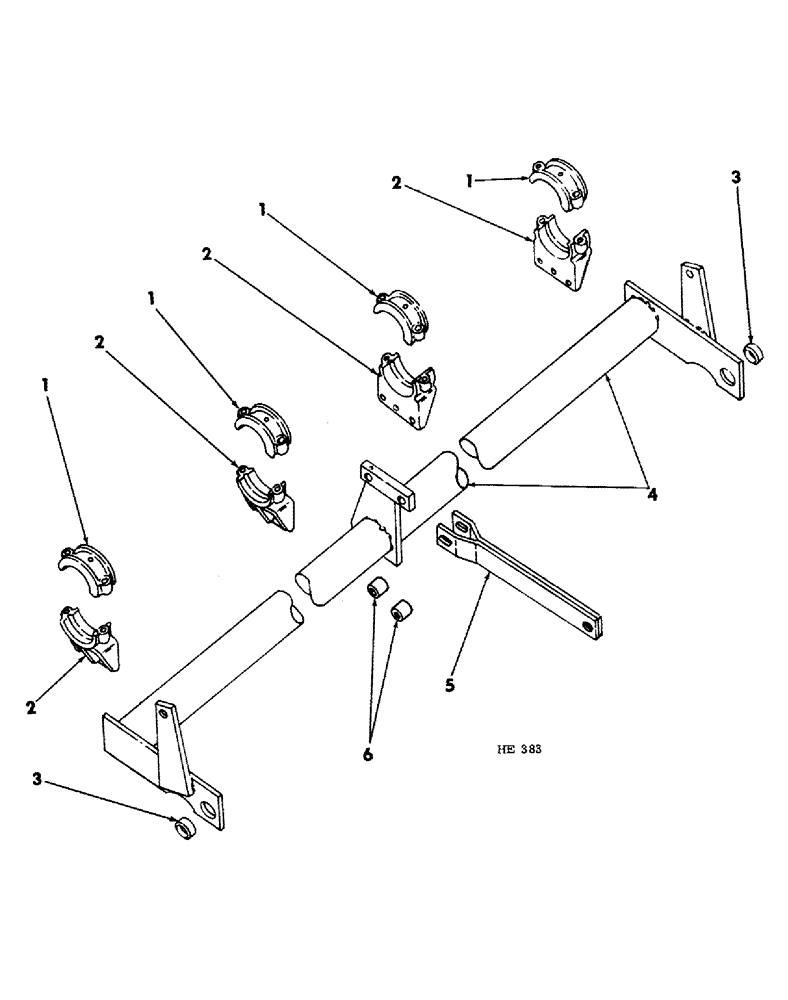

Запчасти Case IH 55 (12-08) - ROCKSHAFT (22 FT. MACHINE)

1

605664R1

CAP

rockshaft brg

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

8шт.

2

605663R2

BRACKET

BEARING, rockshaft

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" TYPE 2 C-Z BOLT

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

6шт.

3

591525R1

BUSHING

main wheel lift bar

2шт.

4

597327R1

ROCKSHAFT (Includes 591525R1, bushings)

1шт.

271293

PULLEY

5/16" STRAIGHT LUB-FITTING

1шт.

5

597339R1

YOKE, rockshaft transport lk

1шт.

389103R1

PIN

1 X 2-3/4" STD-HD SPECIAL PIN

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

517843R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.

615227R1

WASHER

1-1/32 X 1-3/4 X 11 GA WASHER

4шт.

6

10710R1

SPACER, center brg

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 X 3-1/2" TYPE 2 C-Z BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

2шт.
