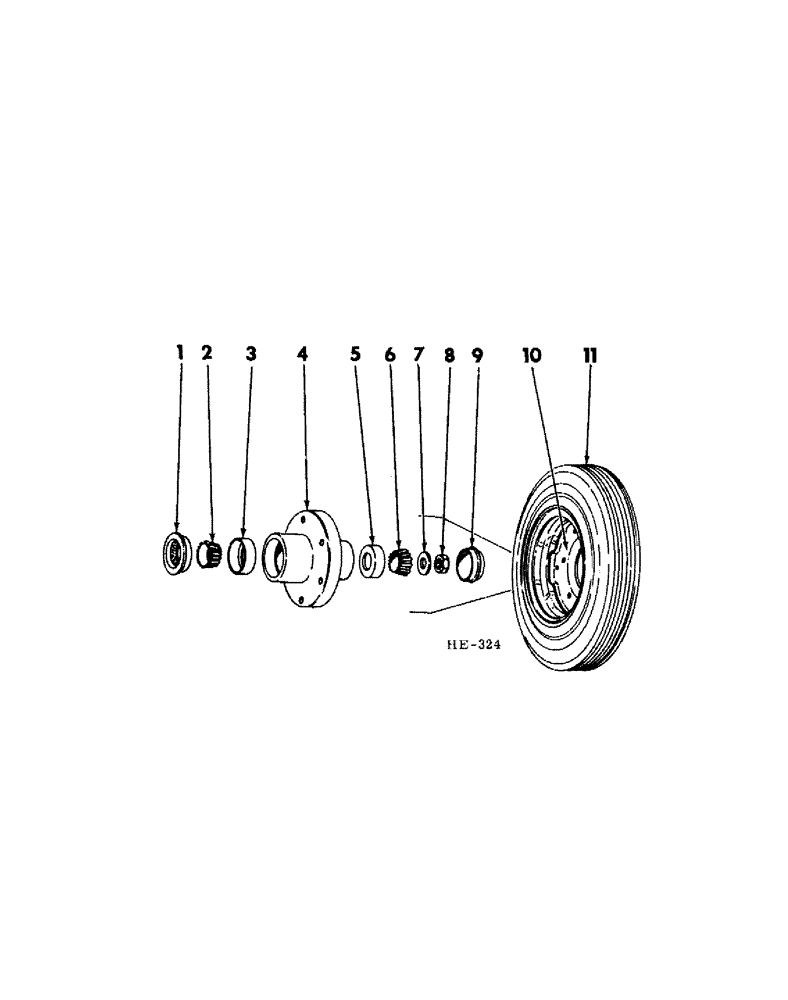

Запчасти Case IH 55 (12-07) - WHEEL

1

606556R91

OIL SEAL

SEAL, wheel hub oil (Opt w/594704R91 seal)

4шт.

1

594704R91

OIL SEAL

SEAL, wheel hub oil (Opt w/606556R91 seal)

4шт.

2

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner brg

4шт.

3

663558R1

BEARING CUP

CUP, wheel hub inner brg

4шт.

4

606468R11

HUB

axle wheel (Includes 651817R1 & 663558R1, cups)

4шт.

5

651817R1

BEARING CUP

CUP, wheel hub outer brg (Opt w/594871R1 cup)

4шт.

5

594871R1

BEARING, CUP,59.156 mm OD x 16.078 mm

CUP, wheel hub outer brg (Opt w/651817R1 cup)

4шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer brg (Opt w/594872R91, cone)

4шт.

6

594872R91

ROLLER BEARING,31.763 mm ID x 16.84 mm

CONE, wheel hub outer brg (Opt w/651818R91 cone)

4шт.

7

619373R1

WASHER

29/32 x 2 x 7 ga spindle

4шт.

8

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8" - NF slt spindle

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

9

663906R1

CAP

wheel hub

4шт.

10

622192R91

WHEEL

15 x 5 KB pneumatic (4-22 ft) (2-25 & 31 ft wing frames)

1шт.

10

481344R91

WHEEL

14 x 8 KB pneumatic (2-25 & 31 ft main frame)

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-NF X 7/8" WHEEL BOLT (6 per wheel)

1шт.

11

TIRE & TUBE, 7.60 x 15" ply implement rib tread (4-22 ft) (2-25 & 31 ft wing frames)

1шт.

11

TIRE & TUBE, 9.50 x 14" 6 ply implement rib tread (2-25 & 31 ft main frame)

1шт.
