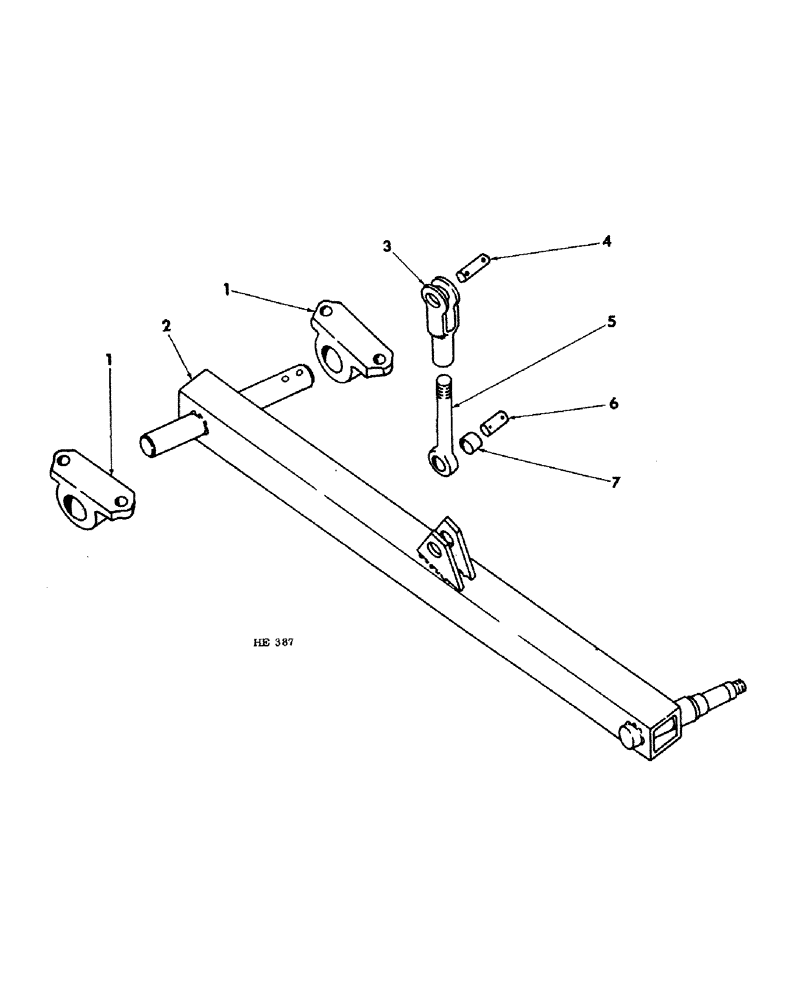

Запчасти Case IH 55 (12-06) - MAIN FRAME AXLE

1

597346R1

BEARING CARRIER

axle hanger bracket

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 X 1-1/2" TYPE 2 C-Z BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

2

597347R1

AXLE, main frame LH shown (22 ft machine)

1шт.

2

597383R1

AXLE, main frame LH (25 & 31 ft machine)

1шт.

2

597348R1

AXLE, main frame RH (22 ft machine)

1шт.

2

597384R1

AXLE, main frame RH (25 & 31 ft machine)

1шт.

Q3491

2-1/32 X 2-3/4 X 14 GA WASHER

2шт.

617978R1

PIN,3/8" x 2 1/2", Coiled

2шт.

3

591536R1

YOKE

lift link eye bolt

2шт.

4

591537R2

PIN

eye bolt yoke

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

5

597354R1

BOLT, axle lift link eye (Regular)

2шт.

5

598857R1

BOLT, axle lift link eye (High clearance)

2шт.

6

597356R1

PIN

BAR, lift link eye bolt

2шт.

119198

COTTER PIN,3/8" x 2 1/2"

PIN SPLIT (COTTER), 3/8" x 2 1/2"

2шт.

7

597355R1

BUSHING

lift link eye bolt

2шт.
