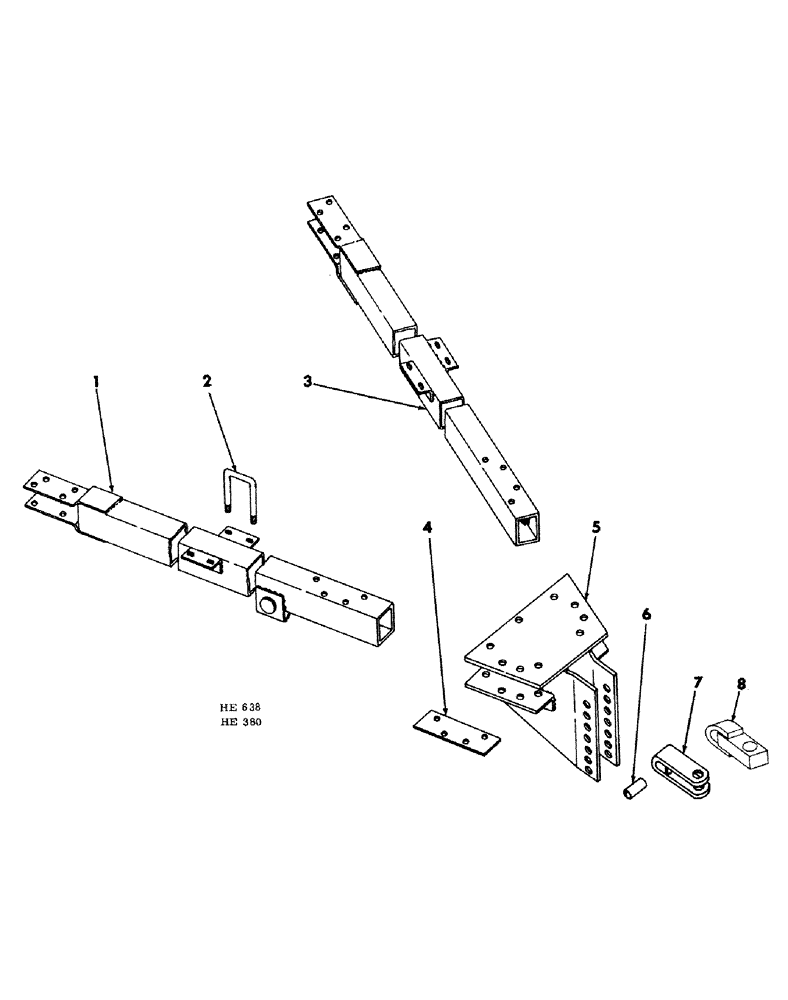

Запчасти Case IH 55 (12-05) - HITCH (25 & 31 FT MACHINE)

1

597302R1

TUBE, hitch RH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" TYPE 2 C-Z BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

2

597308R1

BOLT

U-BOLT, hitch tube clamping

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

8шт.

3

597301R1

TUBE, hitch LH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" TYPE 2 C-Z BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

4

597323R1

BAR, clevis hitch shim

1шт.

5

597316R1

HITCH, clevis

1шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

3/4 X 8" TYPE 2 C-Z BOLT

8шт.

280954

NUT,3/4"-10, G5

8шт.

6

597326R1

SPACER

hitch clevis bolt

1шт.

7

597324R1

CLEVIS

hitch

1шт.

608501R1

BOLT

1 X 5-1/2" C-Z DLD BOLT

1шт.

427649

SLOTTED NUT,1"-8, G5

1" C-Z SLOTTED NUT

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

8

605866R91

TOW BAR

TONGUE, hitch (For use w/tractors w/hitch pin over 1-1/2" dia.. to 1-3/4" dia.)

1шт.
