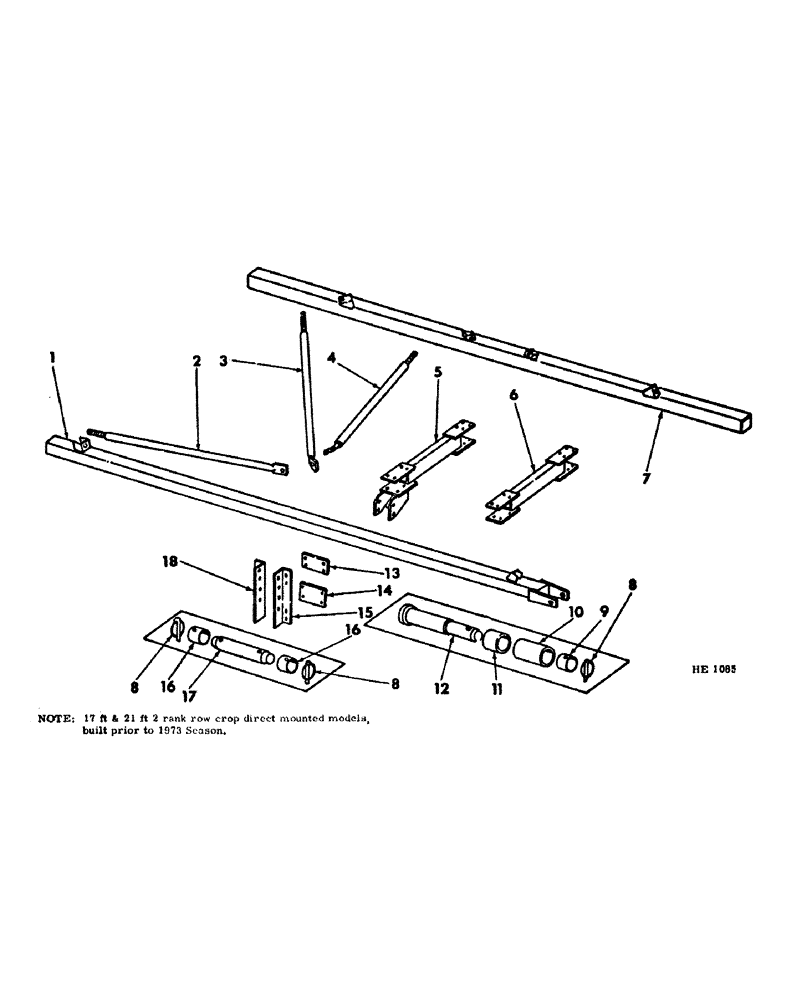

Запчасти Case IH 55 (07-05) - FRAME AND TRACTOR HITCH
№
Артикул
Название
Примечание
Количество
1
599763R2
BEAM, main frame front (17 ft.)
1шт.
1
599765R1
BEAM, main frame front (21 ft.)
1шт.
2
599782R1
ROD, front truss (2 used 17 ft.)
1шт.
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
1 X 3" BOLT
2шт.
9849633
NUT,1"-8, G5
6шт.
2
599783R1
ROD, front truss (2 used 21 ft.)
1шт.
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
1 X 3" BOLT
2шт.
9849633
NUT,1"-8, G5
2шт.
9849649
NUT,1 1/4"-7, G5
4шт.
3
599789R1
ROD, rear truss outer
2шт.
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
1 X 3" BOLT
2шт.
9849633
NUT,1"-8, G5
6шт.
4
599788R1
ROD, rear truss inner
2шт.
9849633
NUT,1"-8, G5
8шт.
5
599774R1
CROSSMEMBER, frame inner
2шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
3/4 X 6" BOLT
16шт.
6
599755R1
CROSSMEMBER, frame outer (2 used 17 ft.) (4 used 21 ft.)
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
3/4 X 6" BOLT (16 used 17 ft.) (32 used 21 ft.)
1шт.
7
599764R1
BEAM, main frame rear (17 ft.)
1шт.
7
599766R1
BEAM, main frame rear (21 ft.)
1шт.
8
392181R91
PIN
pin locking
4шт.
9
599800R1
BUSHING
hitch pin
2шт.
10
599801R1
SPACER
outer pin inner
2шт.
11
599802R1
SPACER
outer pin outer
2шт.
12
599799R1
PIN
hitch outer
2шт.
13
599798R1
BAR, hitch center angle tie
1шт.
14
599795R1
BAR, hitch center angle support
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
3/4 X 6" BOLT
4шт.
15
599796R1
ANGLE, hitch center LH
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
3/4 X 6" BOLT
2шт.
16
599804R1
BUSHING
pin (Three point hitch for tractors w/category II hitch)
2шт.
17
599803R1
PIN
hitch center (Three point hitch for tractors w/category II hitch)
1шт.
17
392211R1
AXLE PIN
PIN, hitch center (Three point hitch for tractors w/category III hitch) (Also for use w/tractors w/category II or category III hitch w/quick coupler)
1шт.
18
599797R1
ANGLE, hitch center RH
1шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
3/4 X 6" BOLT
2шт.
Выбрано товаров: 40
