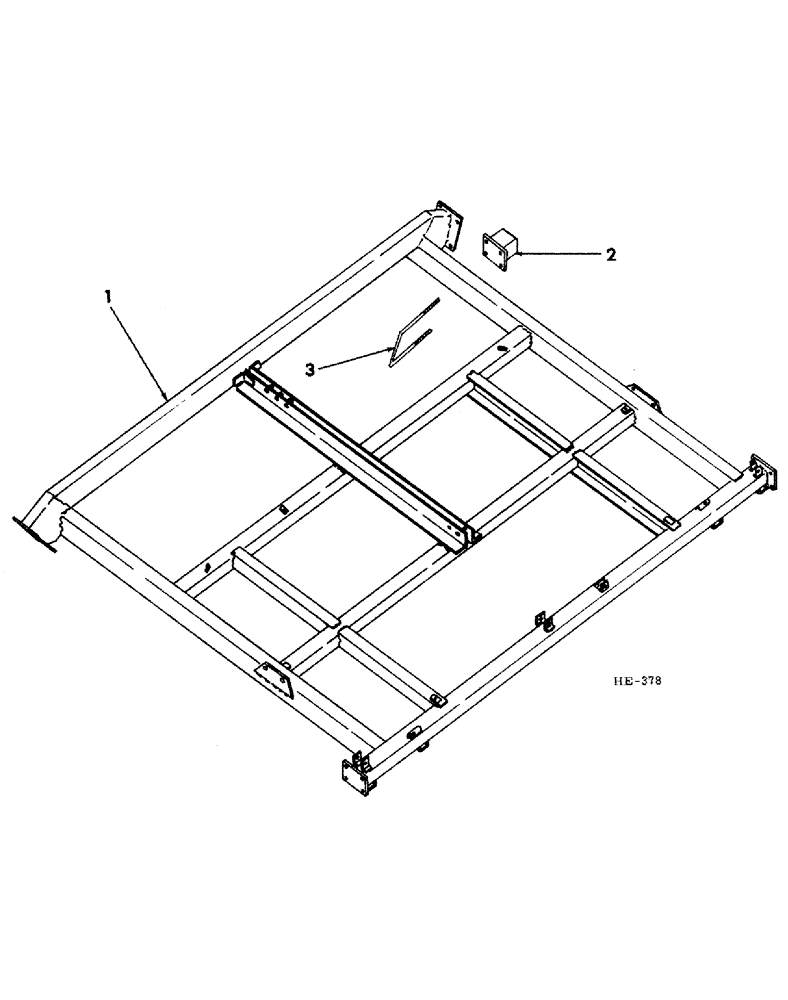

Запчасти Case IH 55 (12-03) - MAIN FRAME (25 & 31 FT MACHINE)

1

FRAME, main (Prior to 1968 order 1 - 598520R1 frame w/2 - 598494R1 shaft assembly, 4 - 597307R1 u-bolt, 8 - 124489 nut, 8 - 12154 lk-washer)

1шт.

1

598520R1

FRAME, main (1968 & since)

1шт.

2

598494R1

SHAFT ASSEMBLY, stub

2шт.

3

597307R1

BOLT,U, 5/8" - 11 x 4.31"

U-BOLT, shaft

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" C-Z NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
