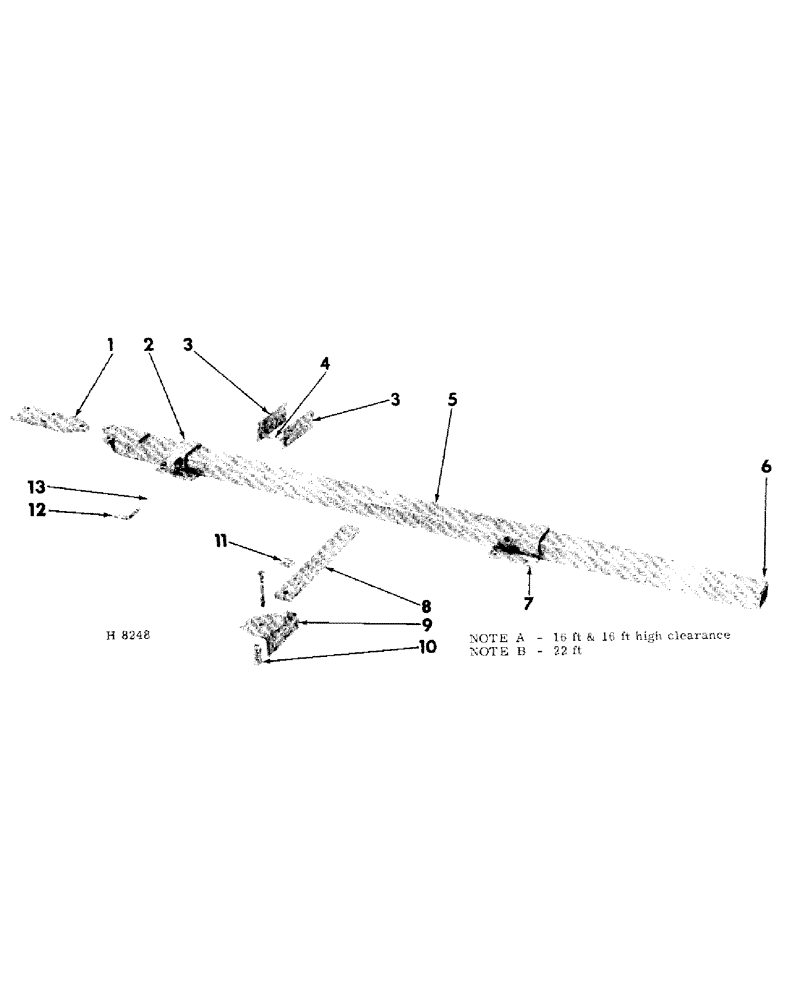

Запчасти Case IH 55 (08-08) - TRANSPORT UNIT

1

608572R1

BAR, draw beam connecting

1шт.

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

CONNECTING BAR "U" BOLT

2шт.

5/8" NUT

4шт.

5/8" LK-WASH

4шт.

3/4 X 2-3/8" STD-HD DLD PIN

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.

2

608577R91

BRACKET, draw beam front

1шт.

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BRACKET CLAMPING "U" BOLT

2шт.

5/8" NUT

4шт.

5/8" LK-WASH.

4шт.

3

608586R1

BAR, stabilizer lockout

2шт.

5/8 X 5-1/2" MACH BOLT W/NUT

2шт.

5/8" LK-WASH.

2шт.

4

608587R1

PIN, stabilizer lockout

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.

5

608573R11

BEAM, transport draw (Note A)

1шт.

5

609423R11

BEAM, transport draw (Note B)

1шт.

6

608576R1

BAR, draw beam stop

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

2шт.

1/2" LK-WASH.

2шт.

7

608582R11

BRACKET, draw beam rear

1шт.

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BRACKET CLAMP "U" BOLT

2шт.

5/8" NUT

4шт.

5/8" LK-WASH.

4шт.

8

608585R11

BAR, transport bumper (Includes block, 602419R1 & rivets, 104089)

1шт.

5/8 X 4-1/4" MACH BOLT W/NUT

1шт.

5/8" JAM NUT

1шт.

21/32 X 1-1/4 X 16 GA WASH.

1шт.

9

608584R1

ANGLE, transport bumper bar

1шт.

5/8 X 3" CRG BOLT W/NUT

2шт.

5/8" LK-WASH.

1шт.

10

2258N

SPRING, bumper bar swivel bolt

1шт.

11

602419R1

BLOCK, bumper bar stop

1шт.

1/4 X 1-1/2" B-HD RIVET

2шт.

12

608581R1

PIN, front bracket locating

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

QUICK-ATTACHABLE C-PIN

1шт.

21/32 X 1 X 16 GA WASH.

1шт.

1/8 X 1" C-PIN

1шт.

13

PO22

SPRING

bracket locating pin

1шт.

608354R91

MOUNTING PARTS

MOUNTING, safety light (Composed of all parts listed below)

1шт.
