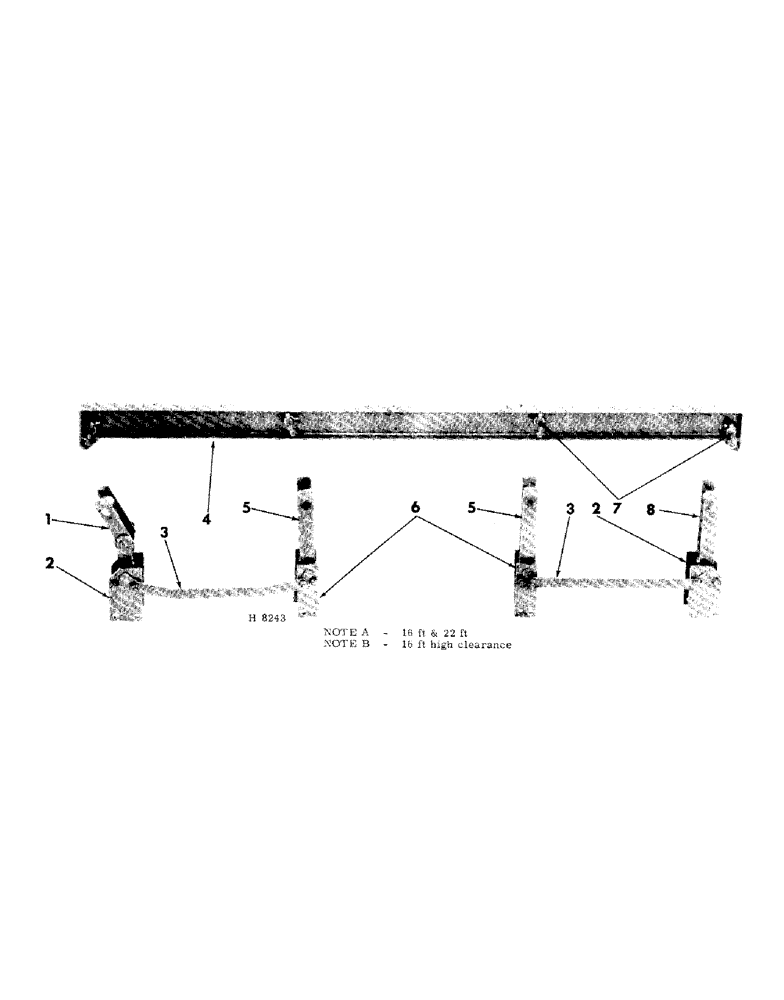

Запчасти Case IH 55 (08-07) - REAR STABILIZER

1

608557R91

ADJUSTER, stabilizer

1шт.

608563R21

ADJUSTER PIVOT PIN

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1/8" - 45 DEGREE ELBOW LUB-FTG

1шт.

5/8 X 6-1/4" MACH BOLT W/NUT

1шт.

5/8" LK-WASH.

1шт.

2

608568R1

BLOCK, anchor outer

4шт.

5/8 X 5-3/4" MACH BOLT W/NUT

6шт.

5/8 X 6-1/4" MACH BOLT W/NUT

2шт.

5/8" LK-WASH.

8шт.

3

608566R1

SUPPORT, locating LH

1шт.

3

608567R1

SUPPORT, locating RH

1шт.

5/8 X 6" MACH BOLT W/NUT (2 - note B)

1шт.

5/8 X 6-1/4" MACH BOLT W/NUT (4 - note A, 2 - note B)

1шт.

5/8" LK-WASH.

4шт.

4

608544R91

BEAM, stabilizer cross

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1/8" - 45 DEGREE ELBOW LUB-FTG

4шт.

5

608551R91

PIVOT, inner rigid (Note A)

2шт.

5

608552R91

PIVOT, inner rigid (Note B)

2шт.

608563R21

RIGID PIVOT PIN

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1/8" - 45 DEGREE ELBOW LUB-FTG

1шт.

5/8 X 6-1/4" MACH BOLT W/NUT

2шт.

5/8" LK-WASH.

2шт.

6

608565R1

BAR, anchor inner (Note A)

4шт.

6

592236R1

BAR, anchor inner (Note B)

4шт.

5/8 X 5-3/4" MACH BOLT W/NUT

6шт.

5/8 X 6-1/4" MACH BOLT W/NUT

2шт.

5/8" LK-WASH.

8шт.

7

608548R92

PIN, beam pivot

4шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

2шт.

3/16 X 1-7/8" C-PIN

2шт.

8

608552R91

PIVOT, outer rigid

1шт.

608563R21

PIVOT PLOW PIN

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1/8" - 45 DEGREE ELBOW LUB-FTG

1шт.

5/8 X 6-1/4" MACH BOLT W/NUT

1шт.

5/8" LK-WASH.

1шт.

608340R91

CLAMP & SHANK, rigid (Composed of parts listed below) (16 - 16 ft & 22 - 22 ft)

1шт.
