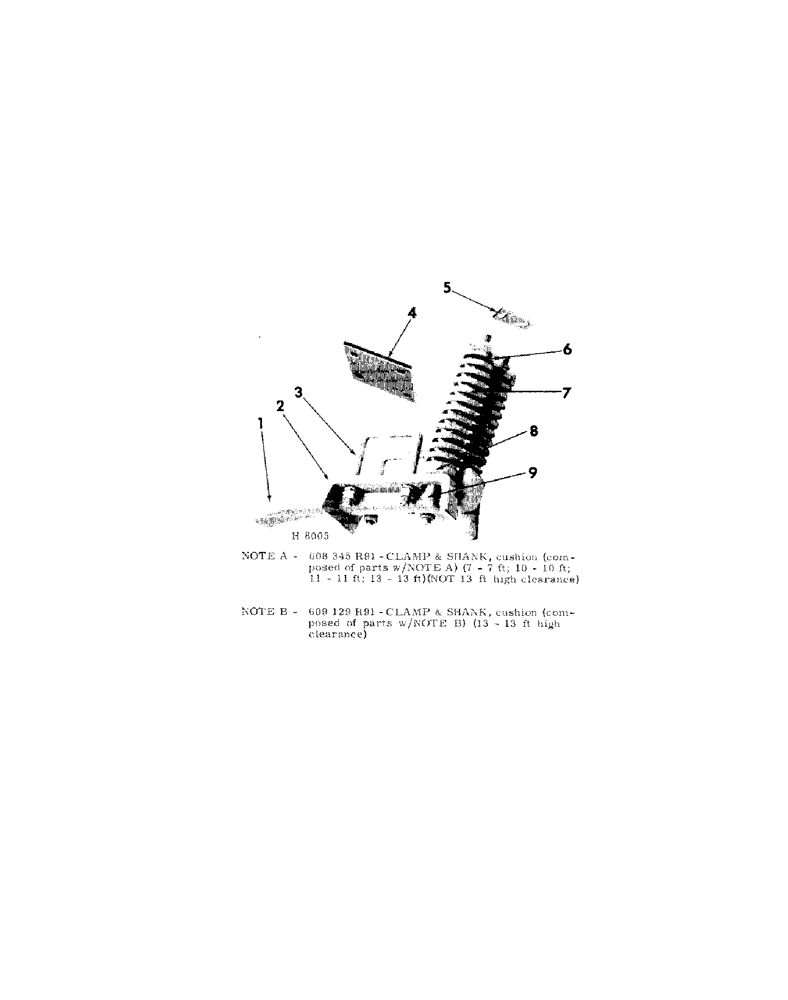

Запчасти Case IH 55 (08-06[A]) - CUSHION CLAMP AND SHANK

1

608341R1

SHANK

tooth (Note A)

1шт.

1

609130R1

SHANK

tooth (Note B)

1шт.

2

608346R1

BRACKET

clamping (Note A)

1шт.

2

609131R1

BRACKET

clamping (Note B)

1шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

"U" BOLT, clamping bracket (Note A)

2шт.

5/8" CD-PLTD NUT

4шт.

5/8" CD-PLTD LK-WASH.

4шт.

4

592239R1

BLOCK

shank clamping (Note B)

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" CD-PLTD HEX-HD BOLT

4шт.

5/8" CD-PLTD NUT

4шт.

5/8" CD-PLTD LK-WASH.

4шт.

5

591755R1

STRIP

cushion spg tie

1шт.

6

608348R1

RETAINER

spg upr (Note A & B)

1шт.

7

608347R1

SPRING

trip (Note A)

2шт.

7

609133R1

VALVE SPRING

SPRING, trip (Note B)

2шт.

8

608349R1

RETAINER

spg lower (Note A & B)

2шт.

9

602331R1

BOLT,U, 3/4" - 10 x 13.20"

"U" BOLT, trip spg (Note A)

1шт.

9

609132R1

U-BOLT,U, 3/4" - 10 x 14.6"

"U" BOLT, trip spg (Note B)

1шт.

3/4" NUT

2шт.
