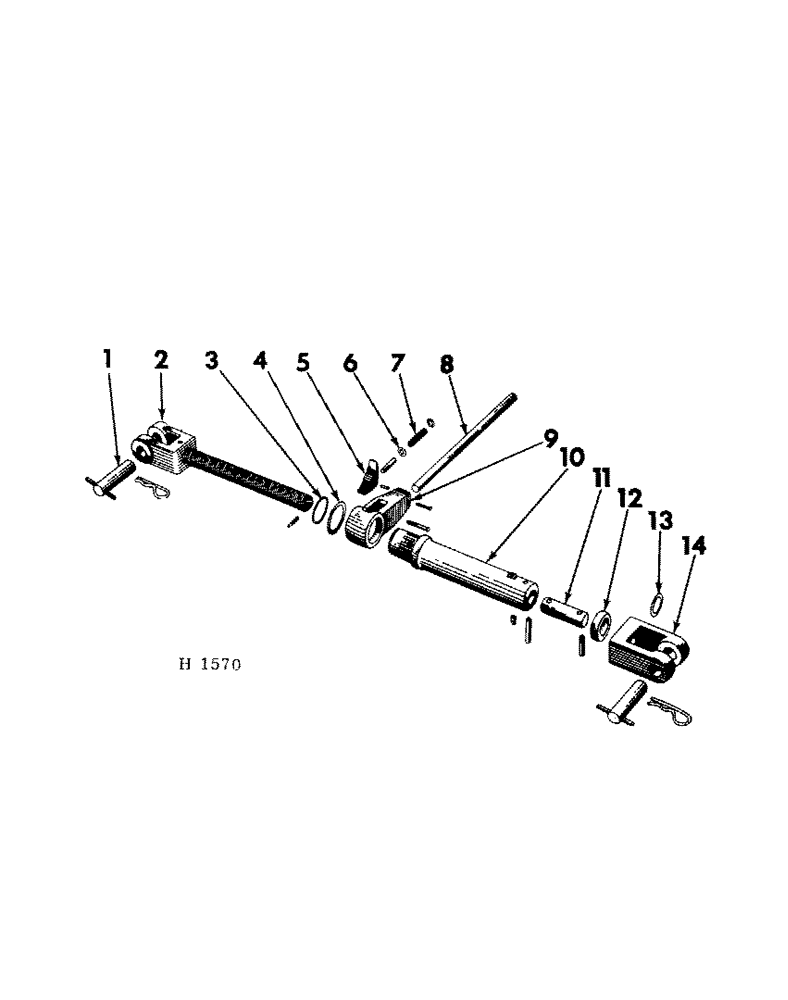

Запчасти Case IH 55 (08-05) - HAND LIFT (RATCHET TYPE)

1

591104R1

PIN

screw & yoke locking

2шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

2шт.

3/8 X 2-3/4" GROOVE PIN

2шт.

2

591117R91

CAPSCREW

HEAD & SCREW, adjusting

1шт.

3

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING, adjusting tube retaining

1шт.

4

WASHER, 2-1/32 x 2-3/4 x 14 ga

1шт.

5

591108R1

PAWL

RATCHET, hand lift

1шт.

591102R1

PIN

RATCHET ARM PIN

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

6

WASHER, 13/32 x 3/4 x 16 ga

2шт.

7

M296

SPRING

ratchet arm pin

1шт.

8

591103R1

ROD

ARM, ratchet lever

1шт.

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

9

591109R1

SUPPORT

ratchet lever

1шт.

591101R1

PIN

SUPPORT STOP PIN

1шт.

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

10

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

adjusting

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

103865

1/8" PIPE PLUG

1шт.

11

591105R1

ANCHOR

adjusting screw

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

12

50738V

THRUST BEARING

adjusting tube

1шт.

13

591174R1

COLLAR, tube anchor

1шт.

14

591110R1

YOKE

adjusting screw

1шт.
