(08-04[A]) - PNEUMATIC TIRE AND WHEEL

Запчасти Case IH 55 (08-04[A]) - PNEUMATIC TIRE AND WHEEL

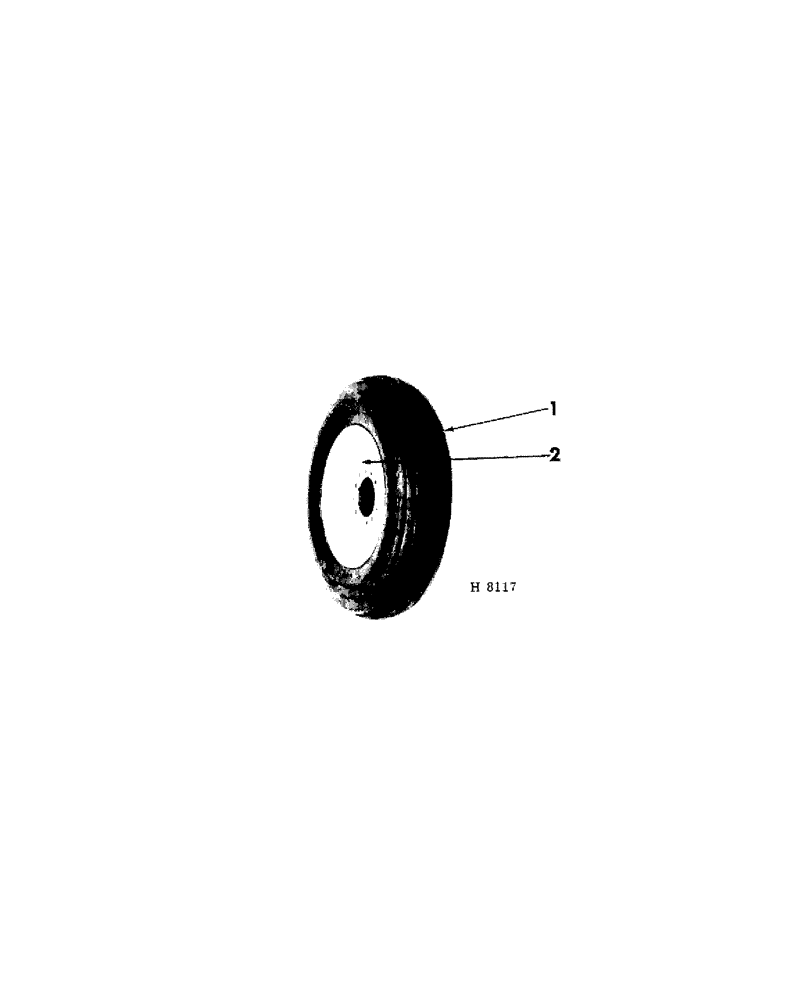

Схема запчастей Case IH 55 - (08-04[A]) - PNEUMATIC TIRE AND WHEEL
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

TIRE & TUBE, 6.70 x 15" 6-ply rib tread pneumatic

4шт.

1

TIRE & TUBE, 7.60 x 15" 6-ply rib tread pneumatic

4шт.

1

TIRE & TUBE, 7.50 X 14" 4-ply auto-type tread pnuematic

4шт.

2

622192R91

WHEEL

DISK & RIM, 15" pneumatic

4шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

24шт.

2

608814R91

WHEEL

DISK & RIM, 14" pneumatic

4шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

WHEEL BOLT

24шт.
