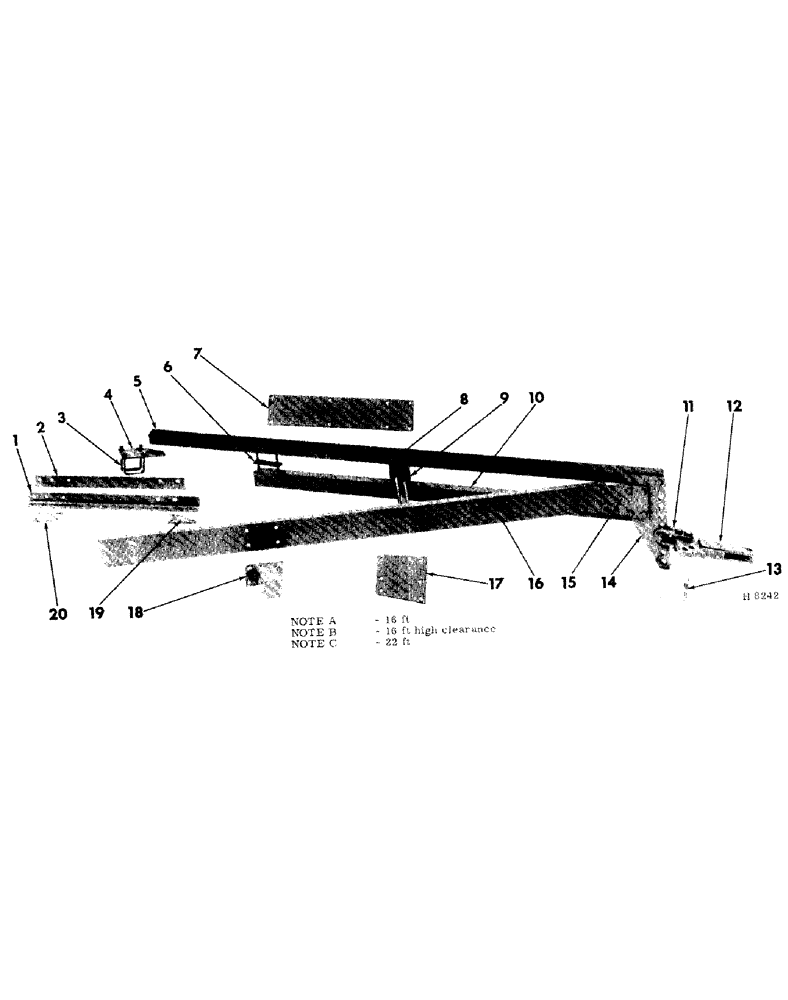

Запчасти Case IH 55 (08-02) - TRACTOR HITCH

1

608537R1

ANGLE, hyd-cyl inner LH (Note A & B)

1шт.

1

609419R1

ANGLE, hyd-cyl inner LH (Note C)

1шт.

1

608538R1

ANGLE, hyd-cyl inner RH (Note A & B)

1шт.

1

608540R1

ANGLE, hyd-cyl inner RH (Note C)

1шт.

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

CLAMPING, "U" bolt (Note C)

4шт.

5/8 X 5-3/4" MACH BOLT W/NUT (Note A & B)

4шт.

5/8" CD-PLTD NUT (Note C)

8шт.

5/8" CD-PLTD LK-WASH (Note C)

8шт.

5/8" LK-WASH (Note A & B)

4шт.

2

608539R1

ANGLE, hyd-cyl outer LH (Note A & B)

1шт.

2

609419R1

ANGLE, hyd-cyl outer LH (Note C)

1шт.

2

608540R1

ANGLE, hyd-cyl outer RH (Note A & B)

1шт.

2

609420R1

ANGLE, hyd-cyl outer RH (Note C)

1шт.

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

CLAMPING "U" BOLT (Note C)

4шт.

5/8 X 5-3/4" MACH BOLT W/NUT (Note A & B)

3шт.

5/8" CD-PLTD NUT (Note C)

8шт.

5/8" CD-PLTD LK-WASH (Note C)

1шт.

5/8" LK-WASH (Note A & B)

2шт.

3

608528R1

BOLT,U, 5/8" - 11 x 5.75"

"U" BOLT, clamping (Long)

2шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

"U" BOLT, clamping (Short)

2шт.

5/8" CD-PLTD NUT

8шт.

5/8" CD-PLTD LK-WASH

8шт.

4

608527R1

BAR, hitch rear (Note A & B)

1шт.

4

609411R1

BAR, hitch rear (Note C)

1шт.

5/8 X 1-5/8" MACH BOLT W/NUT

2шт.

5/8" LK-WASH

2шт.

5

608522R1

ANGLE, upper LH (Note A)

1шт.

5

592225R1

ANGLE, upper LH (Note B)

1шт.

5

609406R1

ANGLE, upper LH (Note C)

1шт.

5

608523R1

ANGLE, upper RH (Note A)

1шт.

5

592226R1

ANGLE, upper RH (Note B)

1шт.

5

609407R1

ANGLE, upper RH (Note C)

1шт.

5/8 X 1-5/8" MACH BOLT W/NUT

2шт.

3/4 X 2" TYPE 2 BOLT W/NUT

4шт.

5/8" LK-WASH

2шт.

3/4" LK-WASH

4шт.

6

608526R1

BAR, angle spacer (Note A & B)

2шт.

6

609410R1

BAR, angle spacer (Note C)

2шт.

5/8 X 6" MACH BOLT W/NUT

4шт.

5/8" LK-WASH

4шт.

7

609418R1

PLATE, hitch brace tie (Note C)

2шт.

5/8 X 1-3/8" MACH BOLT W/NUT

8шт.

5/8" LK-WASH

8шт.

8

608543R1

REINFORCEMENT, hyd hose clamp

2шт.

5/8 X 1-3/4" MACH BOLT W/NUT (Note A & B)

2шт.

5/8 X 2" MACH BOLT W/NUT (Note C)

2шт.

5/8" LK-WASH

2шт.

9

608533R91

BRACE, tie LH (Note A)

1шт.

9

592233R91

BRACE, tie LH (Note B)

1шт.

9

609415R91

BRACE, tie LH (Note C)

1шт.

9

608534R91

BRACE, tie RH (Note A)

1шт.

9

592234R91

BRACE, tie RH (Note B)

1шт.

9

609416R91

BRACE, tie RH (Note C)

1шт.

5/8 X 1-5/8" MACH BOLT W/NUT (Note A & B)

14шт.

5/8 X 1-3/4" MACH BOLT W/NUT (2-note A & B, 8-note C)

1шт.

5/8 X 1-7/8" MACH BOLT W/NUT (Note C)

6шт.

5/8 X 2" MACH BOLT W/NUT (Note C)

2шт.

5/8" LK-WASH

16шт.

10

608524R1

ANGLE, lower LH (Note A)

1шт.

10

592227R1

ANGLE, lower LH (Note B)

1шт.

10

609408R1

ANGLE, lower LH (Note C)

1шт.

10

608525R1

ANGLE, lower RH (Note A)

1шт.

10

592228R1

ANGLE, lower RH (Note B)

1шт.

10

609409R1

ANGLE, lower RH (Note C)

1шт.

5/8 X 6" MACH BOLT W/NUT

4шт.

3/4 X 2-3/4" TYPE 2 BOLT W/NUT

4шт.

5/8" LK-WASH

4шт.

3/4" LK-WASH

4шт.

11

608519R1

CLEVIS, hitch tongue

2шт.

608520R1

BUSHING

CLEVIS HITCH BUSHING

4шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

1 X 4-1/2" DLD CD-PLTD TYPE 2 BOLT

2шт.

427648

NUT

1" SLT NUT

2шт.

1-1/32 X 1-1/2 X 11 GA WASH

2шт.

1/8 X 1-1/2" C-PIN

2шт.

12

608514R91

TONGUE (Regular) (Note A & B)

1шт.

12

608569R91

TONGUE (Special) (Note A & b)

1шт.

12

609404R91

TONGUE (Regular) (Note C)

1шт.

12

609421R91

TONGUE (Special) (Note C)

1шт.

608517R1

1 X 4-1/4" DLD TYPE 2 BOLT

2шт.

427648

NUT

1" SLT NUT

2шт.

1/8 X 1-1/2" C-PIN

2шт.

13

608518R11

PIN, tractor hitch

2шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

2шт.

14

608521R1

PLATE, hitch

2шт.

3/4 X 2" TYPE 2 BOLT W/NUT

4шт.

3/4 X 2-1/4" TYPE 2 BOLT W/NUT

4шт.

3/4 X 2-3/4" TYPE 2 BOLT W/NUT

4шт.

3/4" LK-WASH

16шт.

15

608529R1

SUPPORT, connecting LH (Note A)

1шт.

15

592229R1

SUPPORT, connecting LH (Note B)

1шт.

15

609412R1

SUPPORT, connecting LH (Note C)

1шт.

15

608530R1

SUPPORT, connecting RH (Note A)

1шт.

15

592230R1

SUPPORT, connecting RH (Note B)

1шт.

15

609413R1

SUPPORT, connecting RH (Note C)

1шт.

3/4 X 2-1/4" TYPE 2 BOLT W/NUT

4шт.

3/4 X 2-3/4" TYPE 2 BOLT W/NUT

4шт.

3/4" LK-WASH

8шт.

16

608531R1

CHANNEL, hitch center (Note A)

2шт.

16

609414R1

CHANNEL, hitch center (Note C)

2шт.

16

592231R1

CHANNEL, hitch center LH (Note B)

1шт.

16

592232R1

CHANNEL, hitch center RH (Note B)

1шт.

5/8 X 1-3/4" TYPE 2 BOLT W/NUT (Note A & C)

8шт.

608532R1

SCREW,Short NK, 5/8"-11 x 3 1/2", G5

5/8 X 3-1/2" TYPE 2 CD-PLTD CRG BOLT W/NUT

8шт.

3/4 X 2" TYPE 2 BOLT W/NUT (Note B)

8шт.

5/8" LK-WASH (Note A & C)

8шт.

5/8" CD-PLTD LK-WASH

8шт.

3/4" LK-WASH (Note B)

8шт.

17

592237R1

BLOCK, frame extension (Note B)

1шт.

5/8 X 2-1/4" MACH BOLT W/NUT

2шт.

5/8 X 2-3/4" CD-PLTD TYPE 2 BOLT W/NUT

2шт.

21/32 X 1 X 11 GA WASH

4шт.

5/8" CD-PLTD LK-WASH

4шт.

18

608331R91

EXTENSION

main frame

2шт.

5/8 X 2" CD-PLTD TYPE 2 BOLT W/NUT (2-note B)

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

5/8 X 3-1/4" TYPE 2 CD-PLTD CRG BOLT W/NUT (8-note A, 6-note B)

1шт.

5/8" CD-PLTD LK-WASH

8шт.

19

608541R1

BLOCK, front clamping (Note A & B)

2шт.

20

608542R1

BLOCK, rear clamping

2шт.
