Запчасти Case IH 55 (07-21) - HEAVY DUTY TRAILING HITCH ATTACHMENT, (7 FT, 10 FT & 13 FT

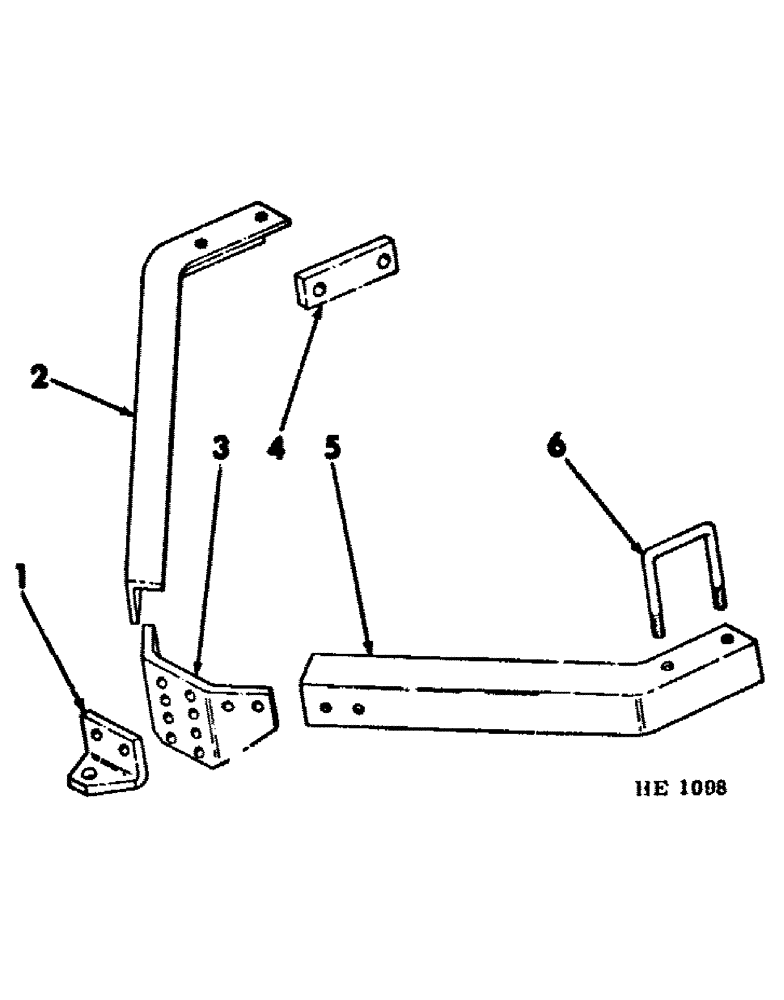

Схема запчастей Case IH 55 - (07-21) - HEAVY DUTY TRAILING HITCH ATTACHMENT, (7 FT, 10 FT & 13 FT

Артикул

Название

Примечание

Количество

1

598072R1

ANGLE

hitch

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

2

598068R1

ANGLE, trailing hitch LH (1967 season)

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 X 1-3/4" BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

598843R2

ANGLE

trailing hitch LH (1968 season & since)

1шт.

3

598071R1

SUPPORT

hitch

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 X 1-3/4" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

4

598070R1

BAR, clamping (1967 season)

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

5

598069R1

ANGLE, trailing hitch RH (1967 season)

1шт.

NLS

NO LONGER SERVICED

5/8 X 1-3/4" BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

598844R2

ANGLE

trailing hitch RH (1968 season & since)

1шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

mounting (1968 season & since)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

Выбрано товаров: 24
