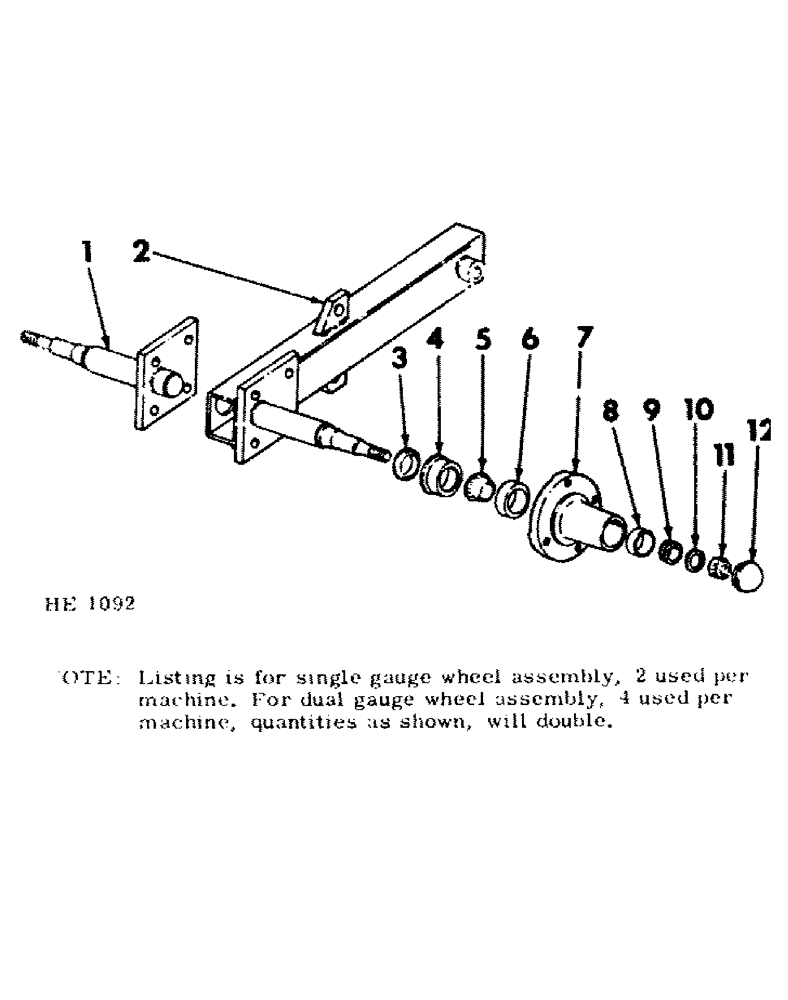

Запчасти Case IH 55 (07-20) - CRANK ADJUSTING GAUGE WHEEL

.

599823R11

SPINDLE

gauge wheel axle (2 used w/single gauge wheel) (4 used w/dual gauge wheel), Composed of:

1шт.

.

AXLE (NSS)

1шт.

.

467750R1

WASHER

1шт.

.

427640

SLOTTED NUT,3/4"-16, G5

NUT

1шт.

.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 X 3-1/2" BOLT (Spindle to axle when machine equipped w/dual gauge wheels)

8шт.

.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

599819R1

AXLE

gauge wheel (For mounting parts refer to "gauge wheel axle mounting" in section 7 of this catalog)

1шт.

.

17756R1

3/4 X 4-1/4" DLD MACHINE BOLT

2шт.

.

427637

SLOTTED NUT,3/4"-10, G5

3/4" C-Z HEX-SLT NUT

2шт.

.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

.

23245R1

WASHER

25/32 X 1-3/4 X 7 GA

4шт.

3

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

2шт.

4

472222R1

SLEEVE

oil seal wear (Opt w/ 472224R1, sleeve)

2шт.

4

472224R1

SLEEVE

oil seal wear (Opt w/ 472222R1, sleeve)

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub inner brg

2шт.

6

651817R1

BEARING CUP

CUP, wheel hub inner brg

2шт.

7

591535R1

HUB

wheel

2шт.

8

651814R1

BEARING CUP

CUP, wheel hub outer brg

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer brg

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

10

467750R1

WASHER

25/32 x 1-1/2 x 11 ga axle spindle

2шт.

11

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4"-NF hex slt

2шт.

.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

12

602959R1

PLUG

CAP, wheel hub

2шт.
