Запчасти Case IH 55 (07-20[A]) - PNEUMATIC TIRE AND WHEEL (TRAIL BEHIND MODEL)

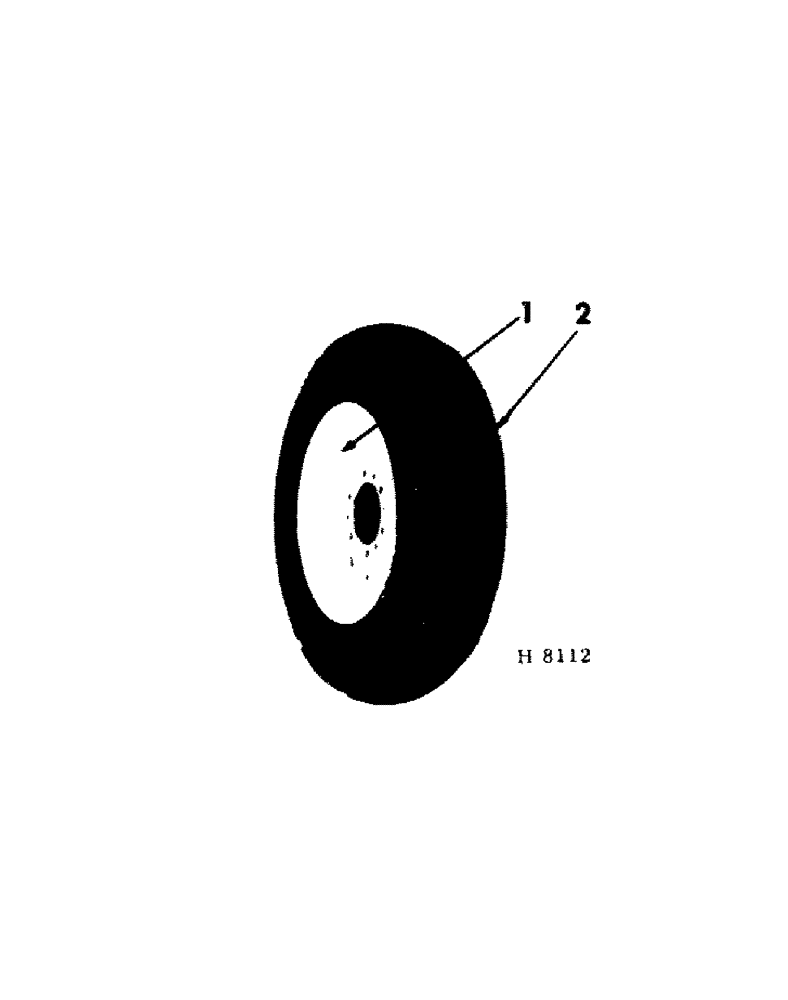

Схема запчастей Case IH 55 - (07-20[A]) - PNEUMATIC TIRE AND WHEEL (TRAIL BEHIND MODEL)

Артикул

Название

Примечание

Количество

1

481344R91

WHEEL

14" pneumatic 14 x 8 KB

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 - NF X 7/8" WHEEL BOLT

12шт.

1

463034R1

RIM

WHEEL, 14" pneumatic 14 x 5 KB

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 - NF X 7/8" WHEEL BOLT

12шт.

1

622192R91

WHEEL

15" pneumatic 15 x 5 KB (For use w/6.70 x 15" and 7.60 x 15" rib implement tire)

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 - NF X 7/8" WHEEL BOLT

12шт.

2

TIRE & TUBE, 9.5L - 14 - 6 ply W1

1шт.

2

TIRE & TUBE, 6.70 x 15" - 6 ply code I-1 rib tread type

2шт.

2

TIRE & TUBE, 7.60 x 15" - 6 ply code I-1 rib tread type

2шт.

Выбрано товаров: 9
