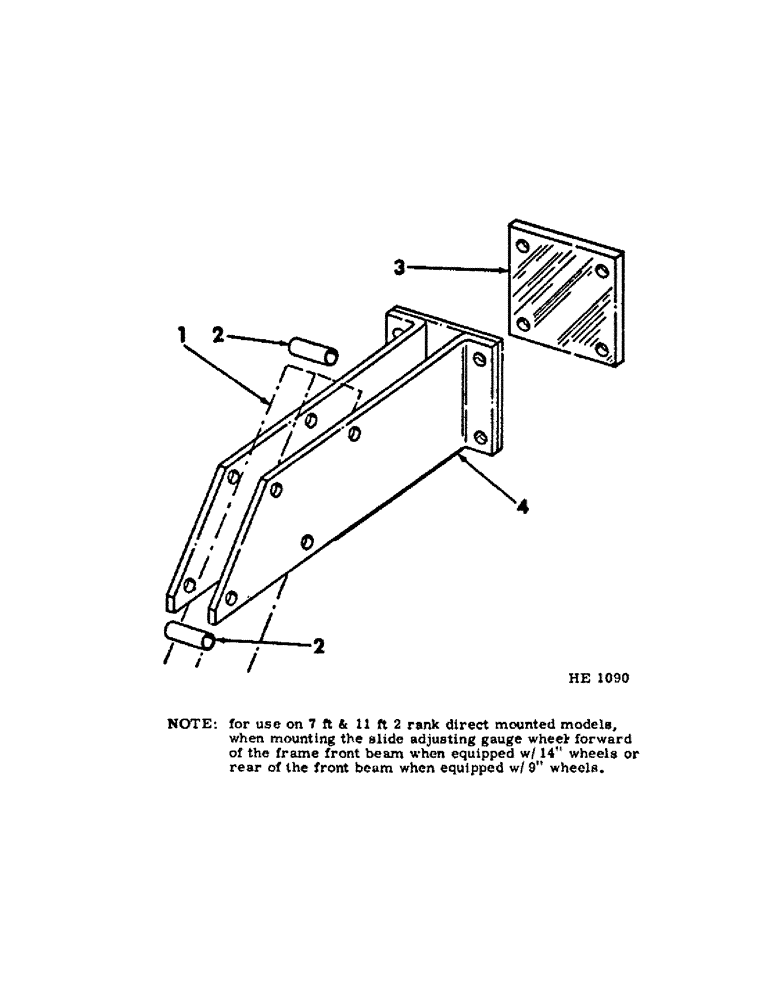

Запчасти Case IH 55 (07-18) - SLIDE ADJUSTING GAUGE WHEEL MOUNTING

1

812163C1

AXLE

gauge wheel (For component parts of this assembly, refer to "gauge wheel axle & spindle" in section 7 of this catalog)

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 X 3-3/4" BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

868828R1

SPACER,3/4" X-Strng Pipe x 1 7/8"

axle holding bolt

4шт.

3

608466R1

BLOCK

BAR, gauge wheel support anchor

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

4

608462R92

SUPPORT

gauge wheel mounting

2шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

8шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.
