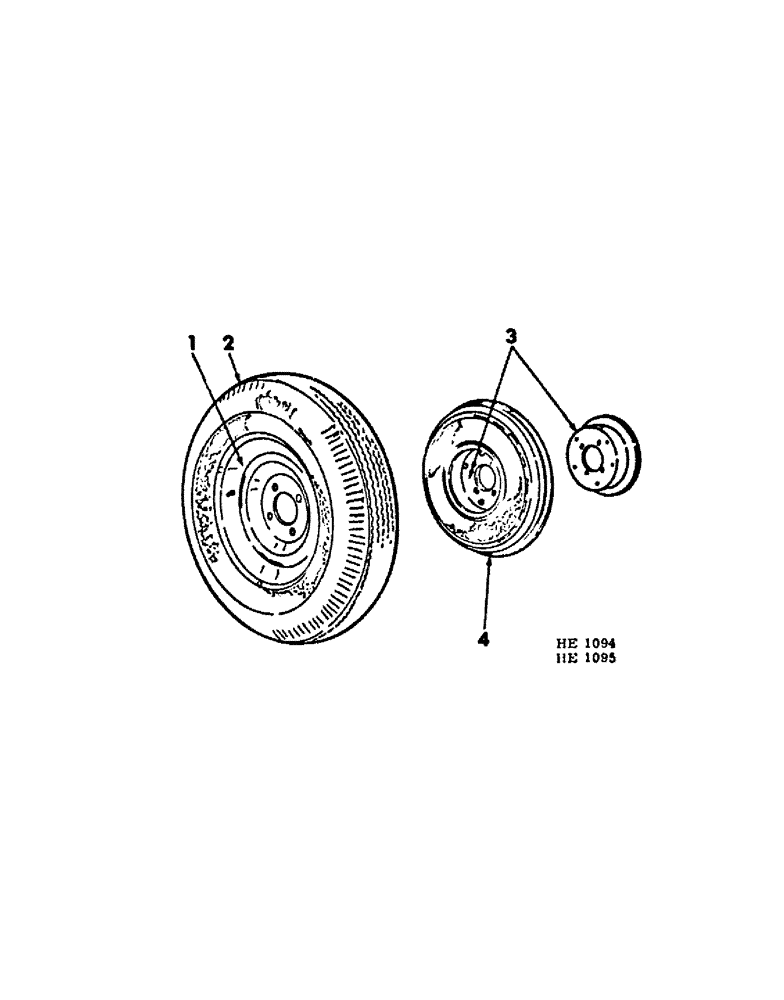

Запчасти Case IH 55 (07-18[A]) - GAUGE WHEEL, TIRE & TUBE

1

463036R1

WHEEL (STEERING)

WHEEL, 14 x 5 KB (Opt to use 608780R91, wheel) (Also for use w/7.50 x 14" used auto tires)

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-NF X 7/8" WHEEL BOLT

8шт.

1

608780R91

RIM

WHEEL, 14 x 5 KB (Opt to use 463036R1, wheel) (Also for use w/7.50 x 14" used auto tires)

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-NF X 7/8" WHEEL BOLT

8шт.

2

TIRE & TUBE, 7.50 x 14" 4 ply I-1

2шт.

3

609377R1

RIM

inner split (Motor wheel)

2шт.

3

609378R1

NO LONGER SERVICED

RIM, outer split (Motor wheel)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT (Rims together)

8шт.

86837293

SHAFT

1/2-NF X 1" BOLT (Rims to hub)

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

490311R1

WHEEL

RIM, inner split (French & Hecht)

1шт.

3

490312R1

WHEEL

RIM, outer split (French & Hecht)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT (Rims together)

5шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

1/2-NF X 7/8" BOLT, Serial Range: (Rims-hub)

4шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

4

TIRE & TUBE, 6.00 x 9" 4 ply type I-1 rib implement

1шт.
