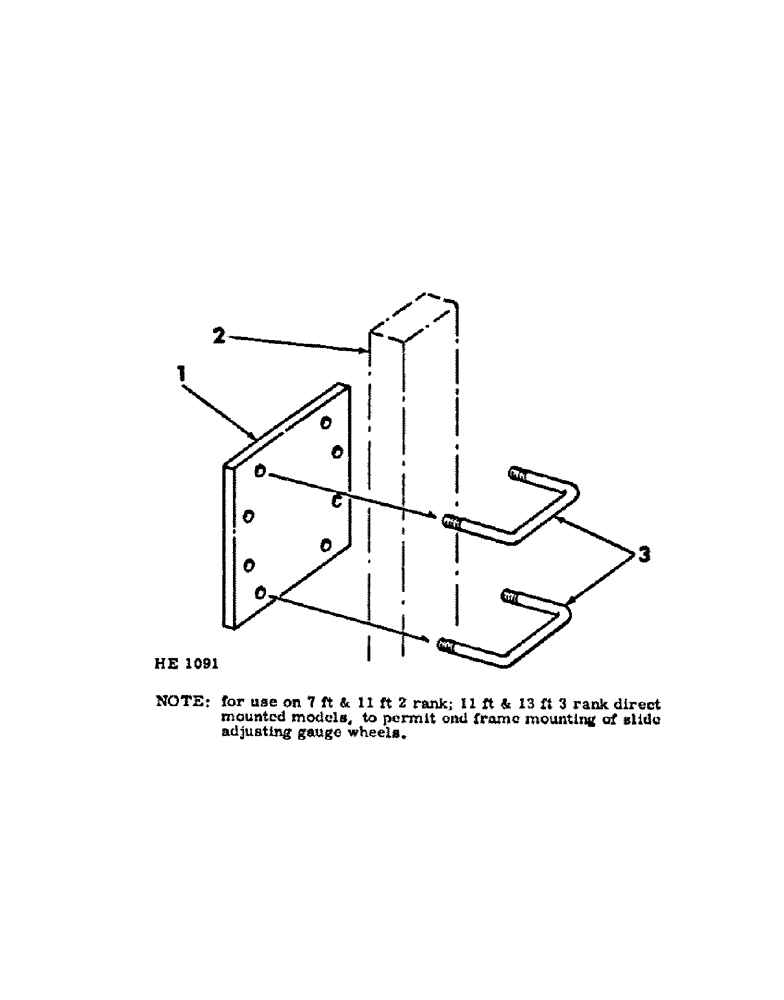

Запчасти Case IH 55 (07-17) - SLIDE ADJUSTING GAUGE WHEEL MOUNTING

1

609872R1

BAR, gauge wheel axle mounting (Prior to 1972 season)

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

5/8 X 3-1/2" BOLT

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 X 4" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

1

811064C1

BAR

gauge wheel axle mounting (1972 season & since)

2шт.

811627C1

BOLT

MOUNTING BAR U-BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

812163C1

AXLE

gauge wheel (For parts, refer to "gauge wheel axle & spindle")

2шт.

3

609871R1

BOLT,Wheel, 5/8" - 11 x 3 3/8", Class 2

U-BOLT, gauge wheel mounting plate

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
