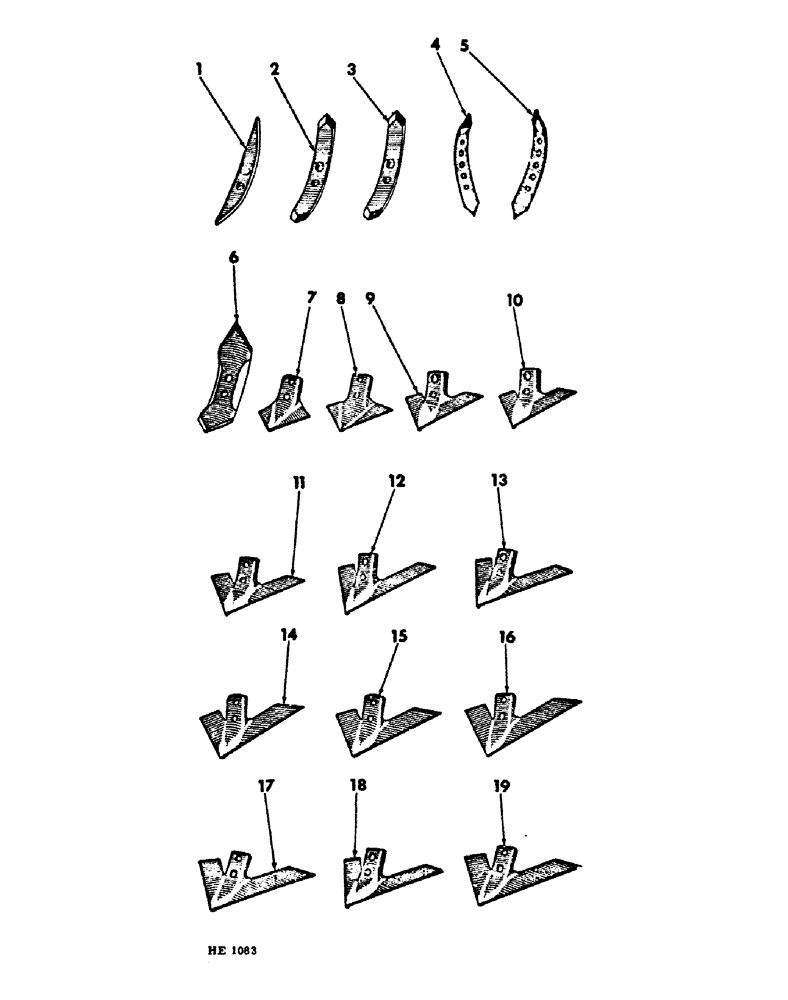

Запчасти Case IH 55 (07-16) - GROUND WORKING TOOLS

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 used per bolt) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 used per bolt 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (1 used per bolt) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 used per bolt 1/2"

1шт.

1

602594R1

POINT

2" reversible spike

1шт.

2

601986R1

POINT

2" reversible chisel (Regular)

1шт.

3

602862R1

POINT

2" hard-surfaced chisel

1шт.

4

594545R1

SHOVEL

3" twisted LH

1шт.

5

594546R1

SHOVEL

3" twisted RH

1шт.

6

602595R1

TIP

SHOVEL, 4-1/2" reversible

1шт.

7

602276R2

SWEEP

SHOVEL, 8"

1шт.

8

602596R2

TIP

SHOVEL, 10"

1шт.

9

603054R3

TIP

SWEEP, 12" (1/4" thick)

1шт.

10

602257R3

TOOTH

SWEEP, 12" (5/16" thick)

1шт.

11

596624R1

SHOVEL

SWEEP, 13-1/2" high lift

1шт.

12

603055R3

TIP

SWEEP, 14" (1/4" thick)

1шт.

13

601988R3

SWEEP

14" (5/16" thick)

1шт.

14

596625R1

SHOVEL

SWEEP, 15-1/2" high lift (NOTE: When applied to the trail behind models, restricted for use on 2 rear ranks only - balance of sweeps to be made up of 596624R1, sweep)

1шт.

15

602592R3

TIP

SWEEP, 16" (1/4" thick) (NOTE: When applied to the trail behind models, restricted for use on 2 rear ranks only - balance of sweeps to be made up of 603055R3, sweep)

1шт.

16

602207R3

TOOTH

SWEEP, 16" (5/16" thick) (NOTE: When applied to the trail behind models, restricted for use on 2 rear ranks only - balance of sweeps to be made up of 601988R2, sweep)

1шт.

17

596626R1

SHOVEL

SWEEP, 17-1/2" high lift (NOTE: When applied to the trail behind models restricted for use on 2 rear ranks only - balance of sweeps to be made up of 596624R1, sweep)

1шт.

18

602593R3

TIP

SWEEP, 18" (1/4" thick) (NOTE: When applied to the trail behind models, restricted for use on 2 rear ranks only - balance of sweeps to be made up of 603055R3, sweep)

1шт.

19

603891R3

SWEEP

18" (5/16" thick) (NOTE: When applied to the trail behind models, restricted for use on 2 rear ranks only - balance of sweeps to be made up of 601988R2, sweep)

1шт.

594242R1

BOLT,#3, 7/16" x 1 3/4"

7/16 X 1-3/4" TYPE 5 NO. 3 PLOW BOLT (Sweeps)

1шт.

594243R1

PLOW BOLT,#3, 7/16" x 2 1/4"

7/16 X 2-1/4" TYPE 5 NO. 3 PLOW BOLT (Points & chisels)

1шт.

271501

SOCKET

7/16" NUT (1 per bolt)

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per bolt 7/16"

1шт.
