Запчасти Case IH 55 (07-15) - TRANSPORT WHEEL ATTACHMENT

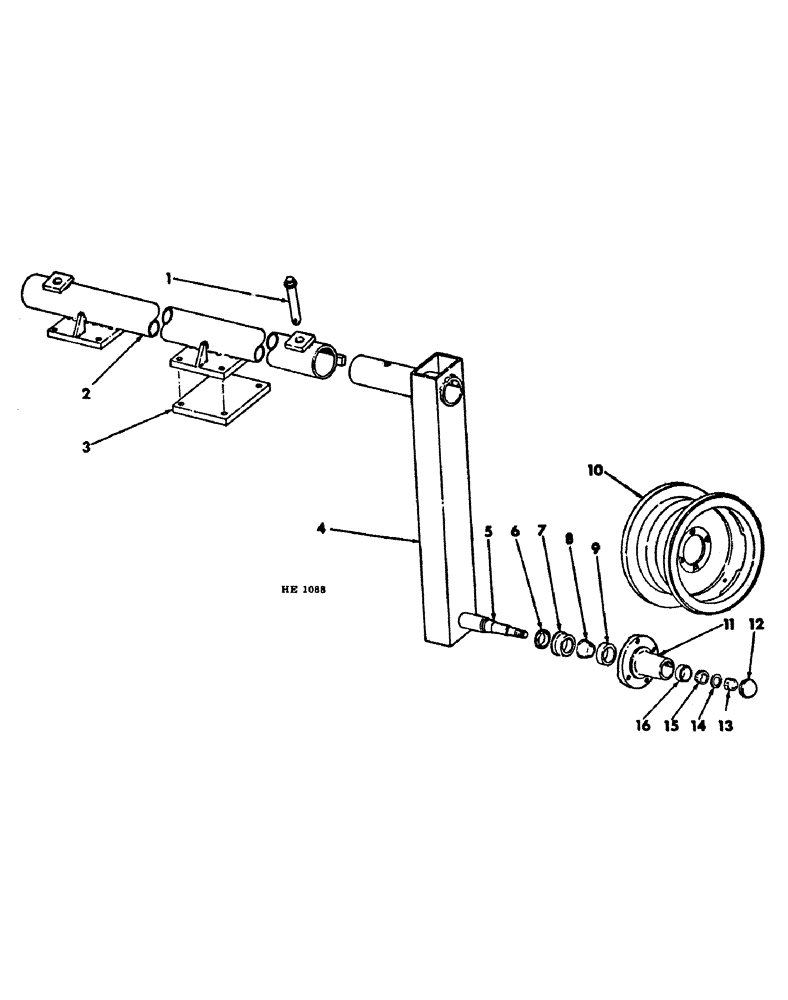

Схема запчастей Case IH 55 - (07-15) - TRANSPORT WHEEL ATTACHMENT

Артикул

Название

Примечание

Количество

1

599843R1

PIN, axle retaining

2шт.

.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

2шт.

2

599826R1

TUBE, wheel support 30, 2.25" Length

1шт.

.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 X 6-1/2" BOLT

8шт.

.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

599828R1

BAR, tube support

2шт.

.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

5/8 X 6-1/2" BOLT

8шт.

.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

599832R1

AXLE, transport wheel

2шт.

5

599847R11

SPINDLE

axle, Composed of

2шт.

.

AXLE (NSS)

1шт.

.

467750R1

WASHER

1шт.

.

427640

SLOTTED NUT,3/4"-16, G5

NUT

1шт.

.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

6

472222R1

SLEEVE

oil seal wear (Opt w/ 472224R1, sleeve)

2шт.

6

472224R1

SLEEVE

oil seal wear (Opt w/ 472222R1, sleeve)

2шт.

7

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

axle spindle oil

2шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub inner brg

2шт.

9

651817R1

BEARING CUP

CUP, wheel hub inner brg

2шт.

10

463036R1

WHEEL (STEERING)

DISK & RIM, 14 x 5 KB (Opt w/ 608780R91, wheel)

2шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-NF X 7/8" WHEEL BOLT

8шт.

10

608780R91

RIM

DISK & RIM, 14 x 5 KB (Opt w/ 463036R1, wheel)

2шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-NF X 7/8" WHEEL BOLT

8шт.

11

591535R1

HUB

wheel

2шт.

12

602959R1

PLUG

CAP, wheel hub

2шт.

13

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4"-NF slt hex

2шт.

.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

14

467750R1

WASHER

25/32 x 1-1/2 x 11 ga axle spindle

2шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, wheel hub outer brg

2шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

16

651814R1

BEARING CUP

CUP, wheel hub outer brg

2шт.

.

TIRE & TUBE, 7.00 x 14" used auto

2шт.

.

TIRE & TUBE, 7.50 x 14" implement tread

2шт.

Выбрано товаров: 35
