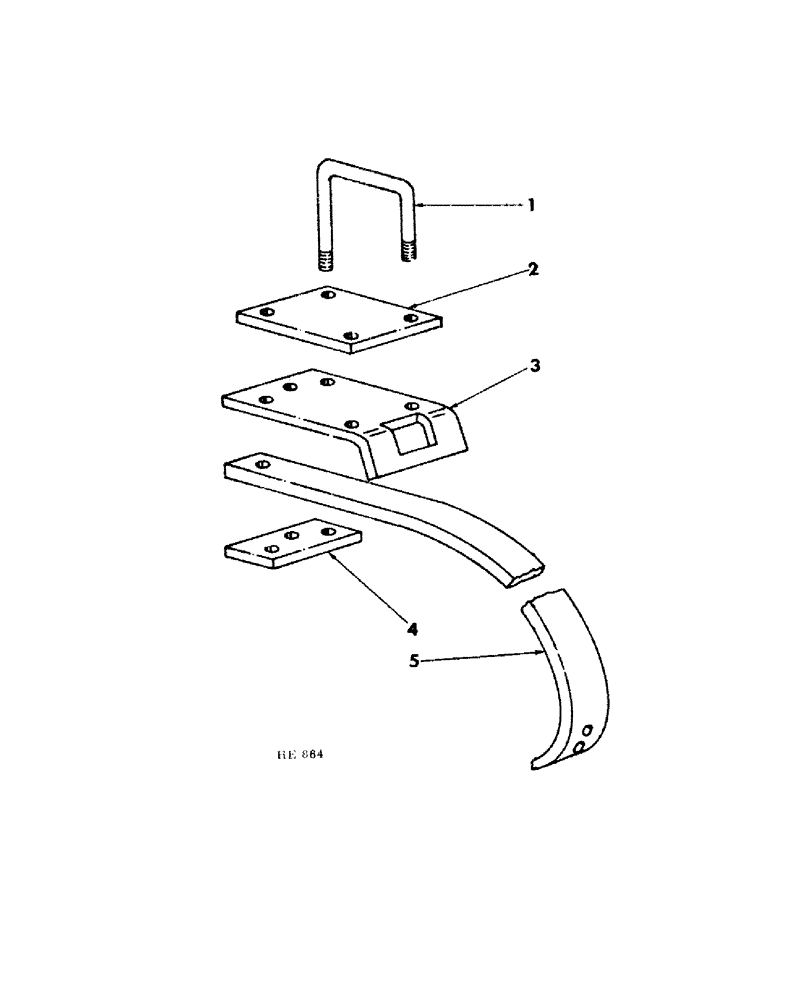

Запчасти Case IH 55 (07-12) - RIGID CLAMP AND SHANK

1

608344R1

U-BOLT,U, 5/8" - 11 x 7"

clamping bracket (For use on machines built prior to 1969 season)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

592239R1

BLOCK

clamping bracket (For use on machines built 1969 season & since)

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

2шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

5/8 X 7-1/2" BOLT (25" clearance)

2шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

5/8 X 8" BOLT (32" clearance)

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

3

608342R1

BRACKET

shank clamping (For use on machines built prior to 1969 season)

1шт.

3

598938R1

BRACKET

25" clearance shank clamping (For use on machines built 1969 season & since)

1шт.

3

609131R1

BRACKET

32" clearance shank clamping

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 X 3" BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

4

608343R1

BAR

clamping bracket (For use on machines built prior to 1969 season)

1шт.

4

598937R1

BAR

clamping bracket (For use on machines built 1969 season & since)

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 X 3" BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

5

608341R1

SHANK

ground working tool (For use on machines built prior to 1969 season)

1шт.

5

598939R1

FINGER

SHANK, 25" clearance ground working tool (For use on machines built 1969 season & since)

1шт.

5

609130R1

SHANK

32" clearance ground working tool

1шт.
