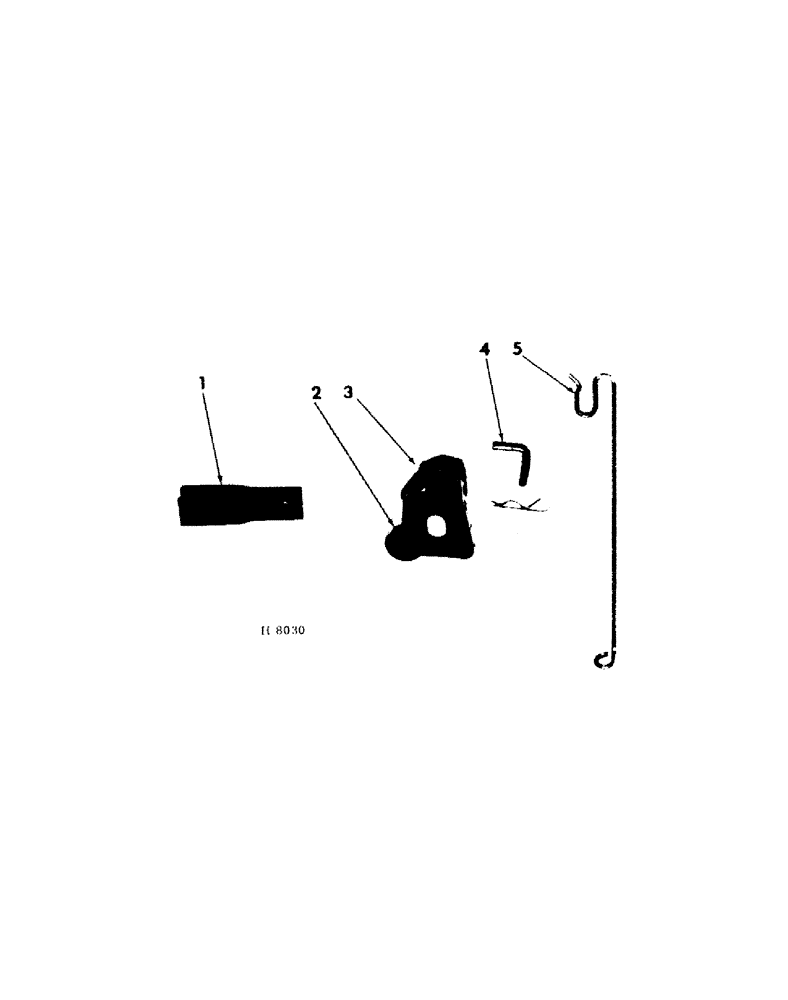

Запчасти Case IH 55 (07-12[A]) - HYDRAULIC LIFT PARTS (7 FT, 10 FT & 10 FT HIGH CLEARANCE, 13 FT & 13 FT HIGH CLEARANCE TRAIL BEHIND MODELS)

1

608313R11

YOKE

hydraulic locking

1шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN, 3/4 x 2-1/6" std-hd-dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

602800R2

BRACKET

ANCHOR, hyd cyl front

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

3

526263R1

RETAINER

hyd cyl

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

602801R1

PIN

ROD, retainer locking

1шт.

591107R1

COTTER PIN

QUICK-ATTACHABLE C-PIN

1шт.

5

651793R1

SUPPORT

ROD, hyd hose support

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 X 2-1/4" BOLT

1шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
