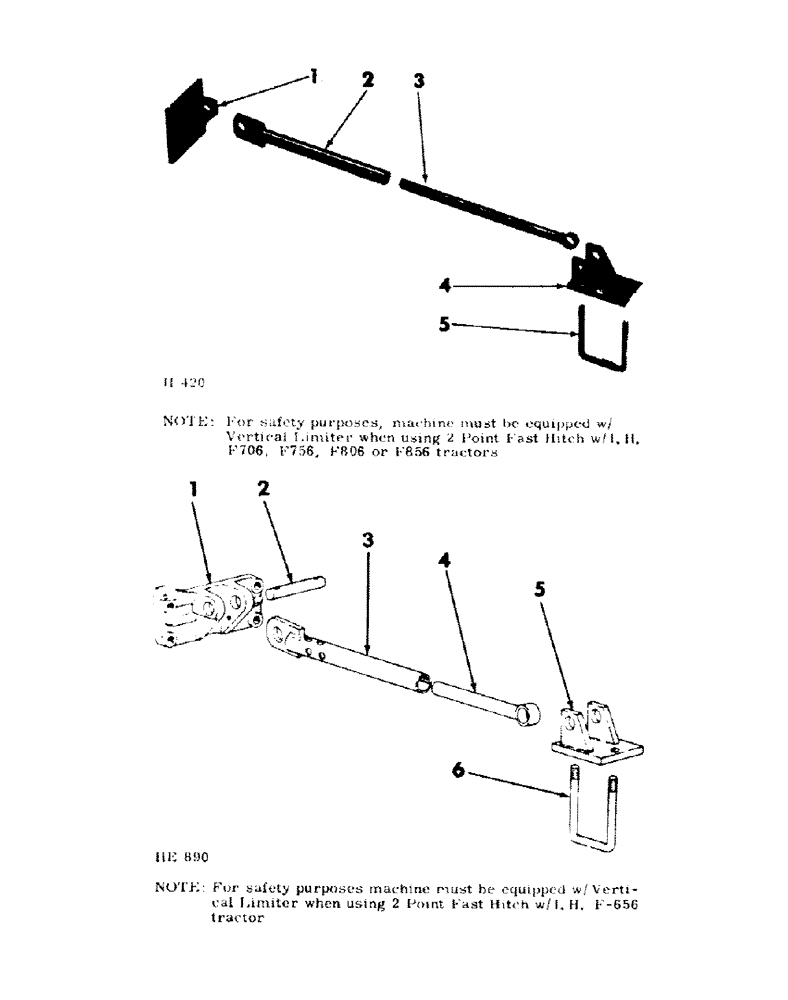

Запчасти Case IH 55 (07-11) - VERTICAL LIMITER, (7 FT & 11 FT DIRECT MOUNTED MODEL, BUILT

1

473168R91

BRACKET

anchor upper

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" BOLT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

473172R92

PIPE, restrictor

1шт.

722344R1

1 X 3-3/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

3

473175R1

ROD, restrictor

1шт.

722344R1

1 X 3-3/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

4

609894R91

BRACKET, anchor lower

1шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

anchor bracket lower

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

1

389372R21

BRACKET

anchor upper (Includes 1 - 20024R1, pin)

1шт.

20024R1

PIN

BRACKET DOWEL PIN

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" BOLT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

481985R1

PIN, anchor

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

1шт.

3

473172R92

PIPE, restrictor

1шт.

722344R1

1 X 3-3/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

4

473175R11

ROD, vertical limiter

1шт.

722344R1

1 X 3-3/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

5

609894R91

BRACKET, anchor lower

1шт.

6

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

anchor bracket lower

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
