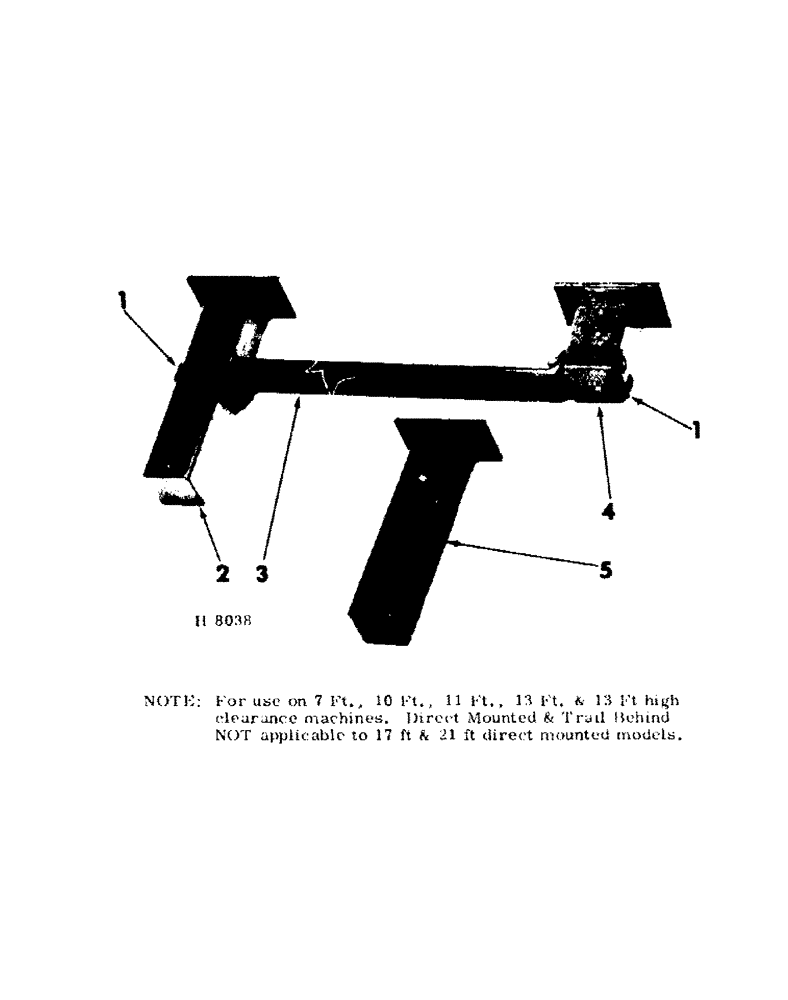

Запчасти Case IH 55 (07-10) - FRAME EXTENSIONS

1

608339R1

BLOCK

extension support (When machine equipped w/long extension)

4шт.

18728R1

5/8 X 6" CRG BOLT Short NK, 5/8"-11 x 6", G2

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

608332R91

EXTENSION

frame long (Machine must be equipped w/short extension)

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

5/8 X 3-1/4" CRG BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

608338R1

STRAP

extension connecting (When machine equipped w/long extension)

2шт.

18728R1

5/8 X 6" CRG BOLT Short NK, 5/8"-11 x 6", G2

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

608331R91

EXTENSION

frame short (Not applicable for 7 ft 2 rank direct mounted machine when gauge wheel attachment is to be mounted on the outside of main frame)

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

5/8 X 3-1/4" CRG BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608473R91

EXTENSION

long (For use on 7 ft 2 rank direct mounted machine when gauge wheel is to be mounted outside of main frame)

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

5/8 X 3-1/4" CRG BOLT

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
