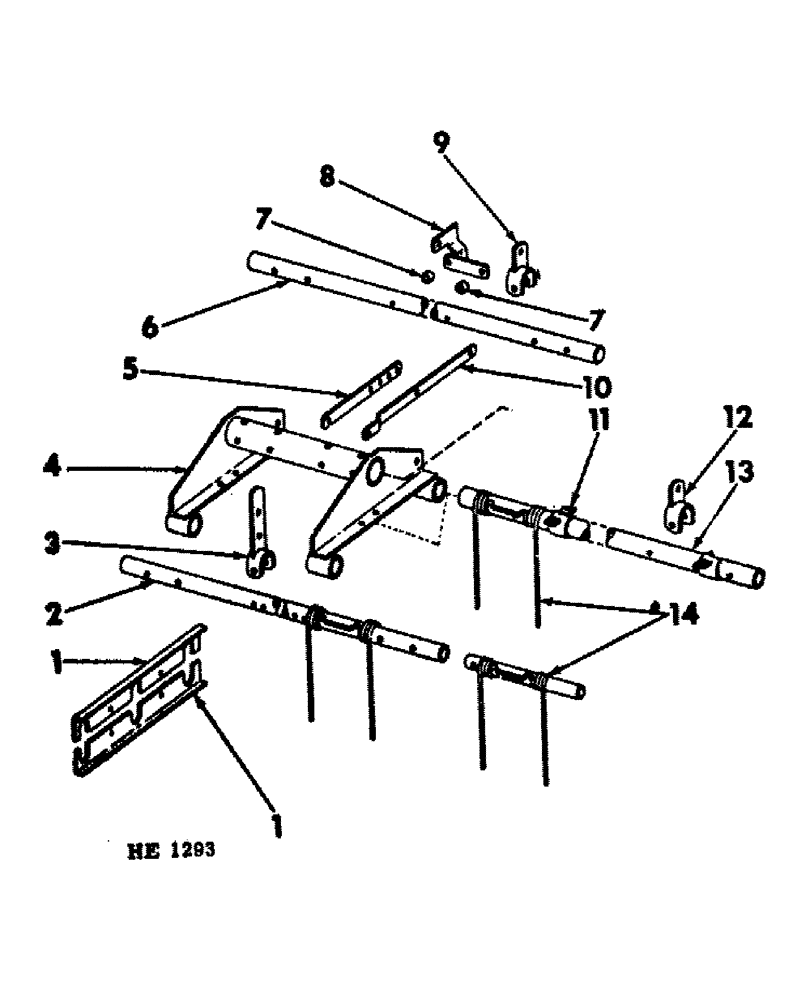

Запчасти Case IH 55 (13-16) - MULCHER ATTACHMENT FRAME AND HEADS

1

485598R1

SUPPORT

RAIL, centre (4-3/4 ft; 6 ft & 7-1/4 ft)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

485590R1

TUBE

BAR, 3-1/2 ft third tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

2

485597R1

TUBE

BAR, 4-3/4 ft third tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

2

485600R1

TUBE

BAR, 6 ft third tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

2

490551R1

TUBE

BAR, 7-1/4 ft third tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

3

485592R1

ARM

HANDLE, frame

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 X 2-3/4" BOLT (1 used 3-1/2 ft) (2 used 4-3/4 ft; 6 ft & 7-1/4 ft)

1шт.

473213R1

LOCK NUT,7/16"-14, GB

7/16" TWO-WAY LK-NUT (1 used per bolt)

1шт.

4

485614R2

FRAME

3-1/2 ft mulcher head

1шт.

4

485615R2

FRAME

4-3/4 ft mulcher head

1шт.

4

485616R2

FRAME

6 ft mulcher head

1шт.

4

490549R1

FRAME

7-1/4 ft mulcher head

1шт.

5

485594R1

BAR

REACH, adjusting

1шт.

21658R1

HEADED PIN,7/16" x 1"

7/16 X 1" STD-HD-DLD PIN

1шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

6

485589R1

TUBE

BAR, 3-1/2 ft first tooth

1шт.

6

485596R1

TUBE

BAR, 4-3/4 ft first tooth

1шт.

6

485599R1

TUBE

BAR, 6 ft first tooth

1шт.

6

490550R1

TUBE

BAR, 7-1/4 ft first tooth

1шт.

7

485591R1

SPACER

BUSHING, 3-1/2 ft spg tooth

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 X 3" BOLT

2шт.

472144R1

NUT

3/8" TWO-WAY LK-NUT

2шт.

8

485595R1

SUPPORT

POST, front (3-1/2 ft)

1шт.

9

485601R1

ARM

POST, second tooth centre bar

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

7/16 X 1-1/2" STD-HD-DLD PIN

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

10

485593R1

SUPPORT

REACH, handle

1шт.

21658R1

HEADED PIN,7/16" x 1"

7/16 X 1" STD-HD-DLD PIN

2шт.

21331R1

WASHER

15/32 X 1-1/4 X 16 GA WASHER

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

11

485603R1

BUSHING

centre bar

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

485601R1

ARM

POST, centre

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

7/16 X 2-3/4" BOLT

1шт.

473213R1

LOCK NUT,7/16"-14, GB

7/16" TWO-WAY LK-NUT

1шт.

13

485602R1

TUBE

BAR, 3-1/2 ft second tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

13

485604R1

TUBE

BAR, 4-3/4 ft second tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

13

485605R1

TUBE

BAR, 6 ft second tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

13

490552R1

TUBE

BAR, 7-1/4 ft second tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

14

485613R1

TOOTH

3-1/2 ft frame spg

9шт.

485591R1

SPACER

SPG TOOTH BUSHING

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 X 3" BOLT

2шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

TOOTH SHOULDER BOLT

16шт.

472144R1

NUT

3/8" TWO-WAY LK-NUT

18шт.

14

485613R1

TOOTH

4-3/4 ft frame spg

12шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

TOOTH SHOULDER BOLT

24шт.

472144R1

NUT

3/8" TWO-WAY LK-NUT

24шт.

14

485613R1

TOOTH

6 ft frame spg

15шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

TOOTH SHOULDER BOLT

30шт.

472144R1

NUT

3/8" TWO-WAY LK-NUT

30шт.

14

485613R1

TOOTH

7-1/4 fr frame spg

18шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

TOOTH SHOULDER BOLT

36шт.

472144R1

NUT

3/8" TWO-WAY LK-NUT

36шт.
