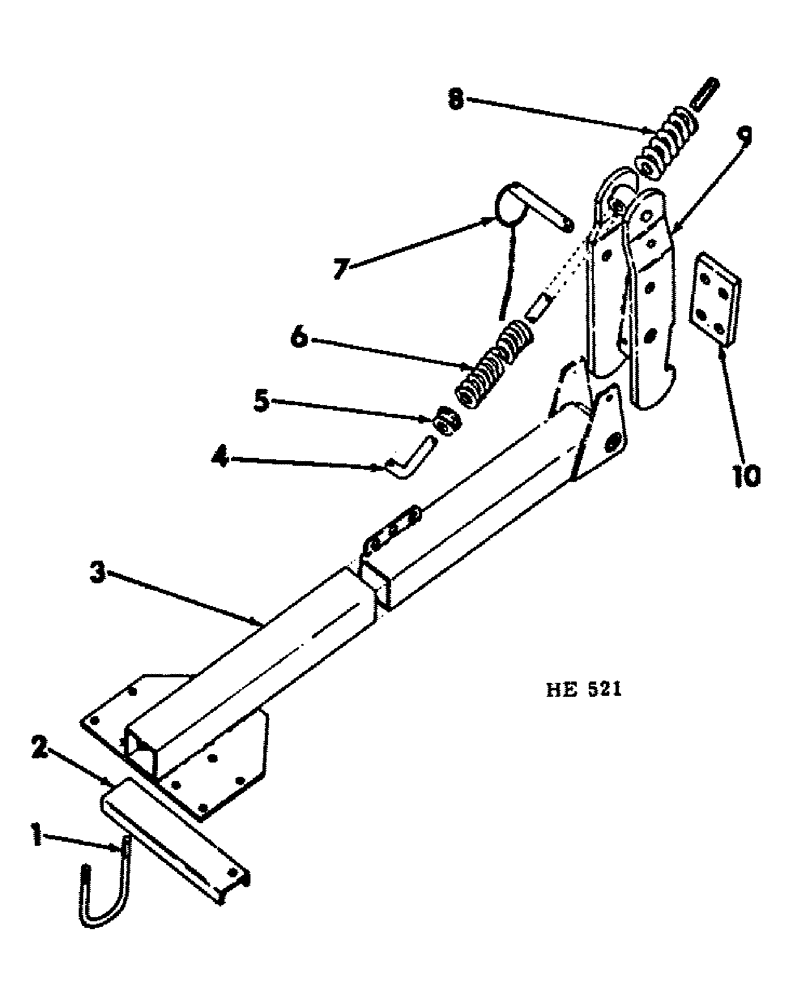

Запчасти Case IH 55 (13-15) - MULCHER ATTACHMENT CARRIER ARM

1

485582R1

BOLT

U-BOLT, carrier arm

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

485581R1

CLAMP

tube

1шт.

3

596575R91

ARM

carrier

1шт.

4

596580R1

ROD

compression

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21753R1

WASHER

25/32 X 1-1/2 X 16 GA WASHER

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" JAM NUT

2шт.

5

1431BX

COLLAR CLAMP

COLLAR, rod

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 X 3/4" SQ-HD-CUP-PT SET SCREW

1шт.

6

596574R1

SPRING

compression lower

1шт.

7

596581R91

PIN, locking

1шт.

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

7/32 X 7/16 X .036" WASHER

1шт.

480523

QUICK-ATTACHABLE C-PIN

1шт.

8

485611R1

SPRING

compression upper

1шт.

9

596577R91

BRACKET

attaching

1шт.

271803

BOLT,Hex, 3/4" - 16 x 4 1/2", Gr 5

3/4 X 4-1/2"

1шт.

473244R1

LOCK NUT,3/4"-10, GB

3/4" LK-NUT

1шт.

10

596579R1

CLAMP

bracket mounting

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

4шт.

589068R1

WASHER

21/32 X 1-1/4 X 11 GA WASHER

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
