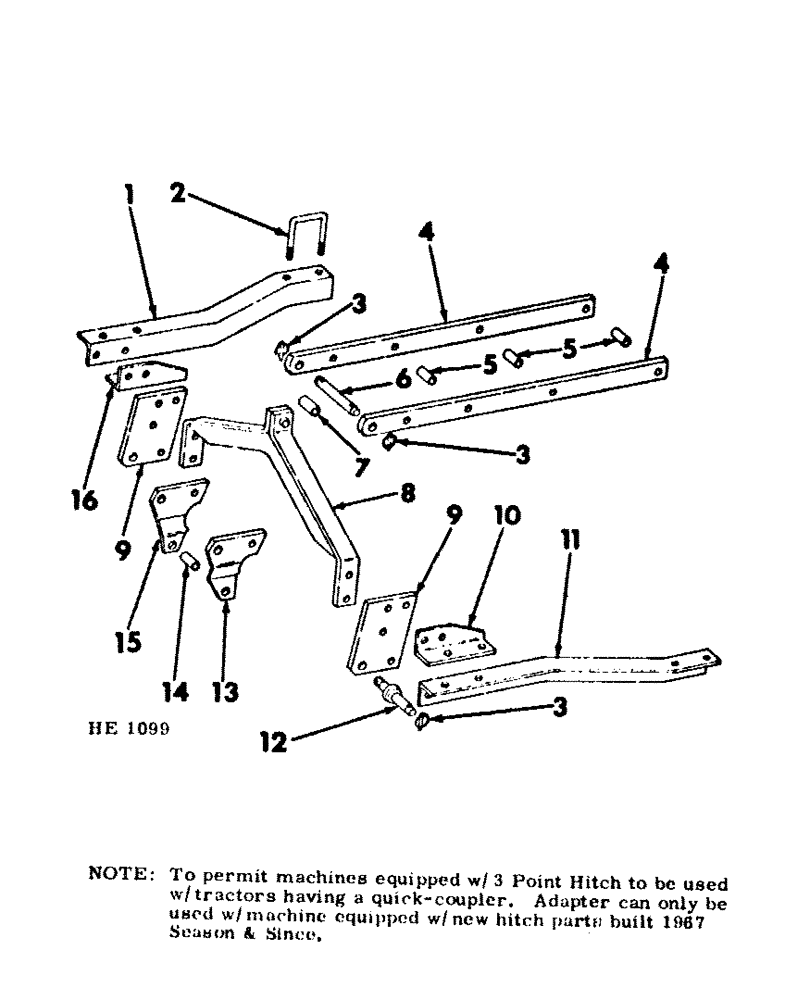

Запчасти Case IH 55 (07-09) - THREE POINT CATEGORY II HITCH (7 FT & 11 FT DIRECT MOUNTED

1

608453R2

ANGLE

main frame cross RH

1шт.

17391R1

3/4 X 5-3/4" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

cross angle clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

392181R91

PIN

hitch centre & block connecting pin locking

4шт.

4

608461R1

BAR, hitch connecting (For use on machines built prior to 1967 season)

2шт.

271937

3/4 X 4-1/4" BOLT

3шт.

271940

GUIDE RING

3/4 X 5" BOLT

1шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

4

597795R1

BAR

hitch connecting (For use on machines built 1967 season & since)

2шт.

NLS

NO LONGER SERVICED

3/4 X 4-1/2" BOLT

3шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3/4 X 5" BOLT , Course threads

1шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

5

608460R1

SPACER

TUBE, hitch connecting bar spacer

3шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

3/4 X 4-1/2" BOLT

3шт.

280954

NUT,3/4"-10, G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

6

812032C1

PIN

hitch centre

1шт.

7

PO27260

SPACER,1" Pipe x 2"

quick coupler hitch connecting bar (Refer to note)

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

1 X 6" BOLT

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

8

608457R91

TRAILER HITCH

HITCH, direct mounted

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4 X 2-1/4" TYPE 8 BOLT

2шт.

22854R1

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

3/4 X 2-3/4" TYPE 8 BOLT

2шт.

22049R1

NUT,3/4"-10, G8

3/4" TYPE 8 NUT

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

9

608456R1

BAR, hitch angle support (For use on machines built prior to 1967 season)

2шт.

271928

CONTROL

3/4 X 2" BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

9

597798R1

BAR

hitch angle support (For use on machines built 1967 season & since)

2шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 X 2" TYPE 8 BOLT

4шт.

22049R1

NUT,3/4"-10, G8

3/4" TYPE 8 NUT

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

10

608454R1

ANGLE, hitch anchor LH (For use on machines built prior to 1967 season)

1шт.

17391R1

3/4 X 5-3/4" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

10

597799R1

ANGLE

hitch anchor LH (For use on machines built 1967 season & since)

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

11

608452R2

ANGLE

main frame cross LH

1шт.

17391R1

3/4 X 5-3/4" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

12

472790R1

STUD

PIN, hitch block connecting

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8" - NF NUT

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8" LK-WASHER

2шт.

13

597796R1

PLATE

quick-coupler hitch adapter LH, Serial Range: (Refer-note)

1шт.

191808

BOLT

3/4 X 6" BOLT

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

1 X 6" BOLT

1шт.

280954

NUT,3/4"-10, G5

1шт.

9849633

NUT,1"-8, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

14

597801R1

SPACER

BUSHING, adapter plate, Serial Range: (Refer-note)

1шт.

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

1 X 4-1/2" BOLT

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

15

597797R1

PLATE

quick-coupler hitch adjusting RH, Serial Range: (Refer-note)

1шт.

191808

BOLT

3/4 X 6" BOLT

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

1 X 6" BOLT

1шт.

280954

NUT,3/4"-10, G5

1шт.

9849633

NUT,1"-8, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

16

608455R1

ANGLE, hitch anchor RH (For use on machines built prior to 1967 season)

1шт.

17391R1

3/4 X 5-3/4" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

16

597800R1

ANGLE

hitch anchor RH (For use on machines built 1967 season & since)

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.
