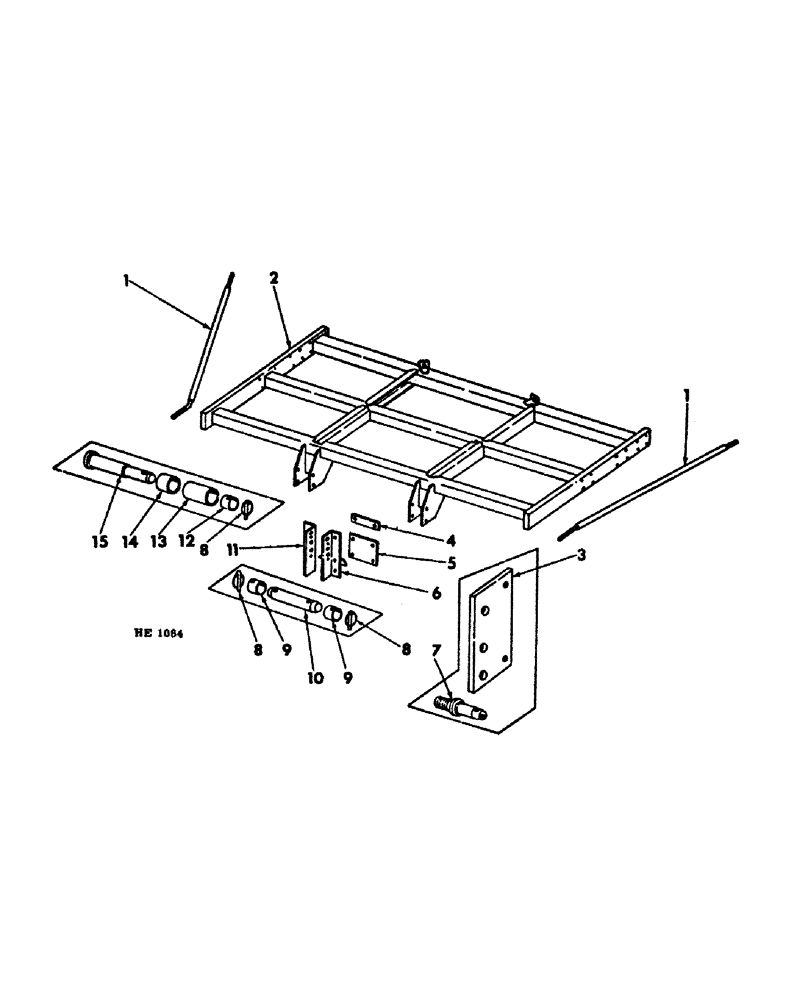

Запчасти Case IH 55 (07-03[A]) - FRAME (2 RANK DIRECT MOUNTED MODEL)

1

608262R91

FRAME

7 ft. trail behind model

1шт.

1

608263R91

FRAME

10 ft. trail behind model

1шт.

1

608264R91

FRAME

13 ft. trail behind model

1шт.

1

608264R91

FRAME

13 ft. high clearance trail behind model

1шт.

1

608263R91

FRAME

10 ft. high clearance trail behind model

1шт.

1

608445R91

FRAME

7 ft. 2 rank direct mounted model

1шт.

1

608450R91

FRAME

11 ft. 2 rank direct mounted model

1шт.

1

812015C1

ROD

frame truss

2шт.

9849633

NUT,1"-8, G5

8шт.

2

812022C1

FRAME

7 ft. 3 rank direct mounted model (Not illustrated)

1шт.

2

812001C4

FRAME

13 ft. 3 rank direct mounted model (Illustrated)

1шт.

3

812031C1

BAR

hitch centre pin (For 7 ft. models w/three point hitch for tractors w/category 2 quick coupler) (For 13 ft. models w/three point hitch for tractors w/category 2 or category 3 quick coupler)

1шт.

18731R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2", Gr 2

3/4 X 2" TYPE 2 CRG BOLT

4шт.

280954

NUT,3/4"-10, G5

4шт.

4

812024C1

BAR

truss rod & hitch tie

1шт.

5

812007C1

BAR

hitch centre angle back

1шт.

6

812002C1

ANGLE

hitch centre LH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

472790R1

STUD

PIN, hitch outer (7 ft. model)

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8" NUT

2шт.

478258R1

WASHER

1-5/32 X 1-3/4 X 11 GA. WASHER

4шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8" LK-WASHER

2шт.

8

392181R91

PIN

locking

4шт.

9

599804R1

BUSHING

hitch centre pin (For 7 ft. or 13 ft. models w/three point hitch and tractors equipped w/category 2 hitch)

2шт.

10

812032C1

PIN

hitch centre (For 7 ft. models w/three point hitch for tractors w/category 2 quick coupler) (For 13 ft. models w/three point hitch for tractors w/category 2 or category 3 quick coupler)

1шт.

10

599803R1

PIN

hitch centre (For 7 ft. or 13 ft. models w/three point hitch and tractors equipped w/category 2 hitch)

1шт.

392181R91

PIN

LOCKING PIN

2шт.

10

392211R1

AXLE PIN

PIN, hitch centre (For 7 ft. & 13 ft. models) w/three point hitch and tractors w/category 3 hitch

1шт.

392181R91

PIN

LOCKING PIN

2шт.

11

812011C1

ANGLE

hitch centre RH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4 X 6" BOLT

2шт.

280954

NUT,3/4"-10, G5

2шт.

12

599800R1

BUSHING

hitch pin (13 ft. model)

2шт.

13

599801R1

SPACER

pin inner (13 ft. model)

2шт.

14

599802R1

SPACER

pin outer (13 ft. model)

2шт.

15

599799R1

PIN

hitch outer (13 ft. model)

2шт.
