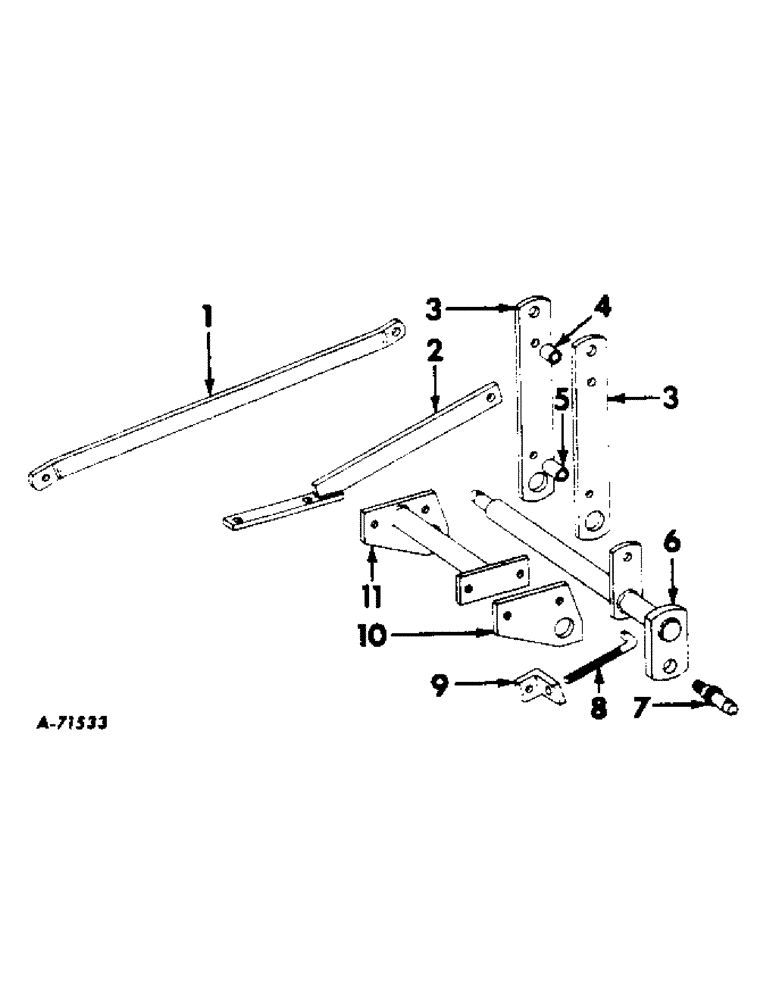

Запчасти Case IH 520 (Y-15) - THREE POINT HITCH, CATEGORY II, PRODUCT GRAPHICS

1

467156R1

BRACE, mast LH

1шт.

5/8 NUT

1шт.

3/4 NUT

1шт.

5/8 x 2-1/2 CAP SCREW

1шт.

3/4 x 4-3/4 CAP SCREW

1шт.

5/8 LOCK WASHER

1шт.

3/4 LOCK WASHER

1шт.

2

467152R11

BRACE, mast RH

1шт.

519724R2

5/8 x 5-1/2 CRG BOLT

1шт.

3

467154R1

MAST, upper

2шт.

4

467159R1

SPACER, mast upper

1шт.

5

462425R1

SPACER

mast lower

1шт.

5/8 UNF NUT

2шт.

5/8UNF x 3-3/4 CAP SCREW

1шт.

5/8UNF x 6-1/2 CAP SCREW

1шт.

5/8 LOCK WASHER

2шт.

6

467150R11

BAR, lateral cross

1шт.

5/16 x 2-1/4 SELF-OPENING COT PIN

2шт.

7

472790R1

STUD

lower

1шт.

218407

NUT

1-1/8UNF NUT

1шт.

120731

WASHER,1 1/8"

1 1/8"

1шт.

8

466939R1

ROD,3/4" - 10 x 7", Steel

BOLT, landing

1шт.

3/4 NUT

2шт.

1/4 x 1-1/4 SELF-OPENING COT PIN

1шт.

9

466938R1

ANCHOR, landing bolt

1шт.

10

467155R1

PLATE, cross bar bearing

1шт.

11

467157R91

SPREADER, front

1шт.

1001412R2

DECAL

IH, above model designation

1шт.

2751047R1

PRODUCT GRAPHIC

IH MCCORMICK, on main frame

1шт.

1000693R3

IH CO, of Canada

1шт.

2751059R2

520 MOLDBOARD PLOW

1шт.

2751060R2

530 MOLDBOARD PLOW

1шт.
