Запчасти Case IH 50 (J-7[B]) - PRODUCT GRAPHICS

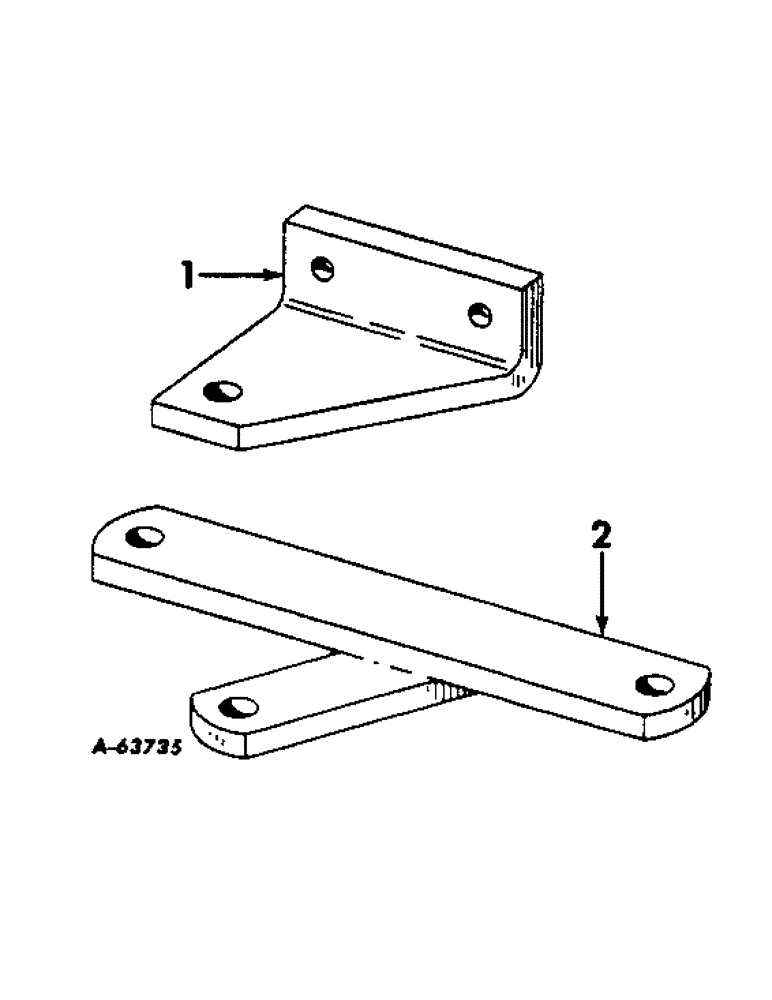

1

464845R1

BRACKET, mounting

1шт.

BOLT W/NUT, 3/4 x 2 hex-hd mach

2шт.

WASHER, 3/4 lock

2шт.

2

464846R11

ARM, cylinder

1шт.

BOLT, 1 x 2-3/4 dld-hex-hd mach

2шт.

427648

NUT

1 in. slt

2шт.

PIN, 1/8 x 2 cotter

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

4шт.

395149R1

QUICK MALE COUPLING

COUPLING, self-sealing male

2шт.

371292R95

CYLINDER

double action hydraulic, 3-1/2 x 8 in. stroke, refer to cyl, 1 for components

1шт.

664581R91

HOSE

hydraulic, 102 in. long

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

2750847

PRODUCT GRAPHIC, model designation, on rear frame angle rear right

1шт.

1001412R2

DECAL

PRODUCT GRAPHIC, IH

1шт.

2751047R1

PRODUCT GRAPHIC

MC Cormick International

1шт.
