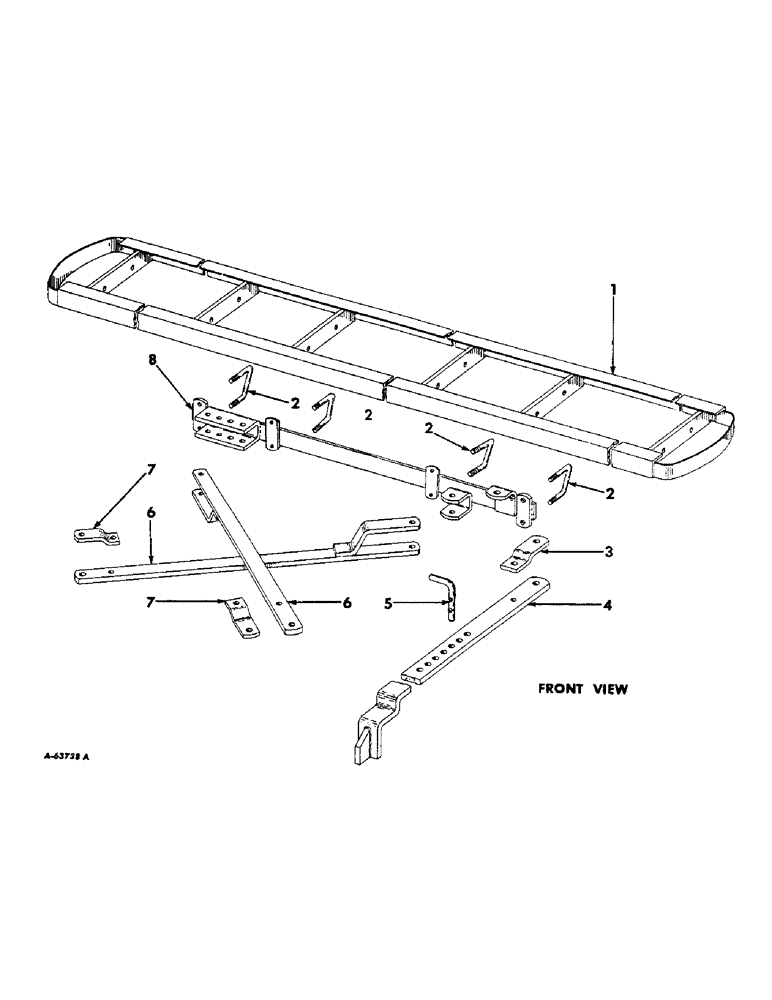

Запчасти Case IH 50 (J-6) - REAR FRAME AND CONNECTING LINKS

1

464804R91

FRAME, rear, unit A

1шт.

1

464806R91

FRAME, rear, unit B

1шт.

2

464822R1

U-CLAP

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

464844R1

STRAP, hammer

1шт.

BOLT W/NUT, 3/4 x 2-1/2 hex-hd mxch

1шт.

BOLT, 7/8 x 3-1/4 dld hex-hd mach

1шт.

NUT, 7/8 slt

1шт.

427642

SLOTTED NUT,7/8"-9, G5

NUT, 7/8 slt

1шт.

PIN, 5/32 x 1-3/4 cotter

1шт.

WASHER, 3/4 lock

1шт.

656049R1

WASHER

29/32 x 1-1/2 x 7 ga

1шт.

4

464841R11

LINK, connecting, unit A

1шт.

4

464843R11

LINK, connecting, unit B

1шт.

5

653592R91

PIN, adjusting, use for manual angling only

1шт.

6

464837R11

LINK, cross, unit A

2шт.

6

464840R11

LINK, cross, unit B

2шт.

PIN, 3/4 x 5 dld std-hd

2шт.

PIN, 1/4 x 1-1/2 cotter

1шт.

520175R1

CLIP

PIN, quick-attachable

1шт.

7

464839R1

STRAP, hammer

2шт.

BOLT W/NUT, 3/4 x 2 hex-hd mach

2шт.

BOLT, 3/4 x 2-3/4 dld hex-hd mach

2шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 slt

2шт.

PIN, 5/32 x 1-1/2 cotter

2шт.

WASHER, 3/4 lock

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

8

464808R91

BAR, adjsuting, unit A

1шт.

8

464816R91

BAR, adjsuting, unit B

1шт.
