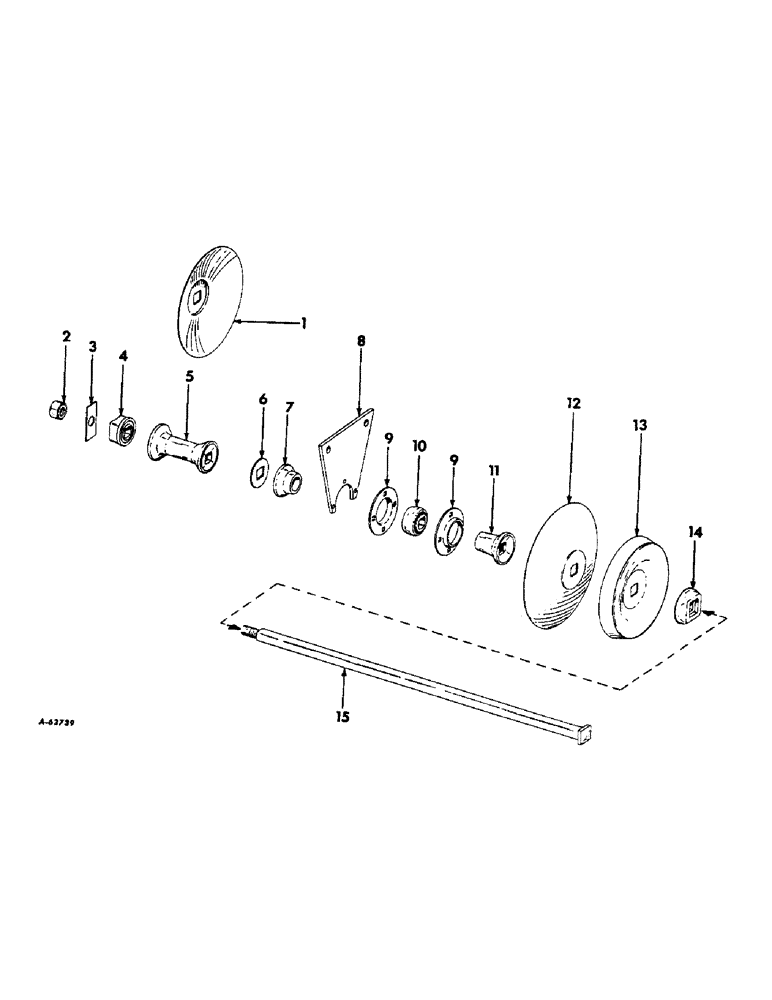

Запчасти Case IH 50 (J-4) - GANG UNIT

1

P24904

DISC

BLADE, disk, 14 in., used for 16 in. blade only

1шт.

2

220089

DISC,1 1/8"-7, G5

1-1/8 hex, 4 for unit A, 6 for unit B

1шт.

3

P34101

LOCK

nut, 4 for unit A, 6 for unit B

1шт.

4

PA4167

WASHER

nut, 4 for unit A, 6 for unit B

1шт.

5

P1650

SPOOL

spacing, 14 for unit A, 20 for unit B

1шт.

6

P14920

WASHER

sq-hole, 8 for unit A, 12 for unit B

1шт.

7

652385R1

SPOOL

bearing short, 8 for unit A, 12 for unit B, order 472592R1

1шт.

7

472592R2

SPOOL

bearing short, 8 for unit A, 12 for unit B

1шт.

8

464836R1

STANDARD, bearing, 8 for unit A, 12 for unit B

1шт.

BOLT W/NUT, 3/4 x 2 hex-hd mach, 16 for unit A, 24 for unit B

1шт.

WASHER, 3/4 lock, 16 for unit A, 24 for unit B

1шт.

9

652386R1

FLANGE

RETAINER, bearing, 16 for unit A, 24 for unit B

1шт.

BOLT W/NUT, 3/8 x 1-1/4 crg, 24 for unit A, 36 for unit B

1шт.

BOLT W/NUT, 3/8 x 1 crg, 8 for unit A, 12 for unit B

1шт.

WASHER, 3/8 lock, 32 for unit A, 48 for unit B

1шт.

10

ST682

BEARING ASSY

BEARING, 8 for unit A, 12 for unit B

1шт.

11

464835R1

SPOOL, bearing long, 8 for unit A, 12 for unit B

1шт.

12

140551/2

BLADE, disk, 16 in., 25 for unit A, 37 for unit B

1шт.

12

L13144

HOSE

BLADE, disk, 18 in., order 140561/2

1шт.

12

140561/2

DISC

BLADE, disk, 18 in., 26 for unit A, 38 for unit B

1шт.

13

650998R2

GAUGE, depth, 16 in., 17 for unit A, 25 for unit B

1шт.

13

650999R2

GAUGE, depth, 18 in., 13 for unit A, 25 for unit B

1шт.

14

P4165

WASHER, head, 4 for unit A, 6 for unit B

1шт.

15

P14915

BOLT, arbor

2шт.

15

P14914

BOLT, arbor, 2 for unit A 7-1/2 ft.

1шт.

GANG, 4 for unit B 10-1/2 ft. gang

1шт.
