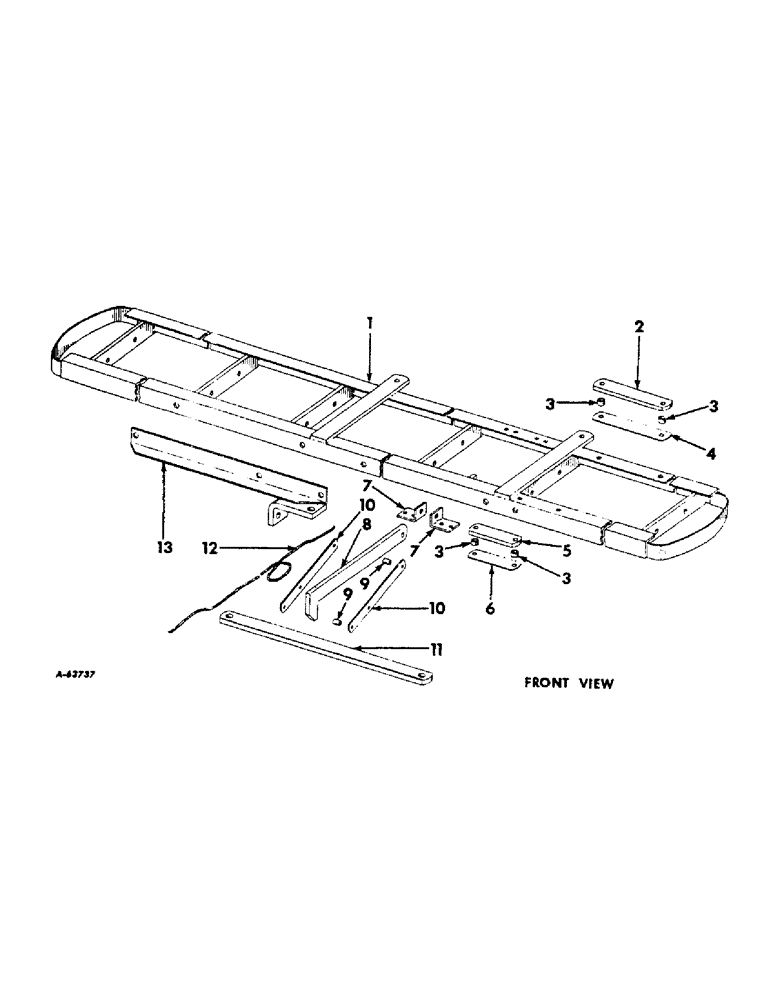

Запчасти Case IH 50 (J-3) - FRONT FRAME AND MANUAL ANGLING

1

464801R91

FRAME, front unit A

1шт.

1

464794R91

FRAME, front, unit B

1шт.

2

464818R1

BAR, retainer, unit A

1шт.

2

464820R1

BAR, retainer, unit B

1шт.

17629R1

BOLT,Hex, 5/8" - 11 x 3"

5/8-11 x 3 hex-hd mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

M42263

SPACER,3/4" X-Strng Pipe x 1"

4шт.

4

464819R1

PLATE, wear, unit A

1шт.

4

464821R1

PLATE, wear, unit B

1шт.

5

464854R1

BAR, retainer, unit A

1шт.

5

464856R1

BAR, retainer, unit B

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17629R1

BOLT,Hex, 5/8" - 11 x 3"

5/8-11 x 3 hex-hd mach

2шт.

102639

NUT,5/8"-11, G5

2шт.

6

464855R1

PLATE, wear, unit A

1шт.

6

456857R1

PLATE, wear, unit B

1шт.

7

464850R1

ANGLE, latch

2шт.

BOLT W/NUT, 1/2 x 1-1/4 hex-hd mach

4шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

PO26455

LARGE PIN,5/8" x 1 7/8"

PIN, 5/8 x 1-7/8 dld-std-hd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

464848R11

BAR, latch

1шт.

9

464852R1

SPACER

2шт.

10

464851R1

BAR, rope

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2-13 x 1-3/4 hex-hd mach

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

D3373

DISC

PIN, 1/2 x 1-1/2 dld-std-hd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

11

464853R1

BRACE, hitch

1шт.

19778R1

BOLT, 1-8 x 2-3/4 dld-hex-hd mach

2шт.

427648

NUT

1-8 slt hex.

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

4шт.

12

ROPE, latch, 5/16 x 150 in., purchase locally

1шт.

13

464866R91

ANGLE, support, unit A

1шт.

13

464867R91

ANGLE, support, unit B

1шт.

17501R1

BOLT, 3/4-10 x 1-3/4 hex-hd mach

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

220081

NUT

3/4-10 hex.

3шт.
