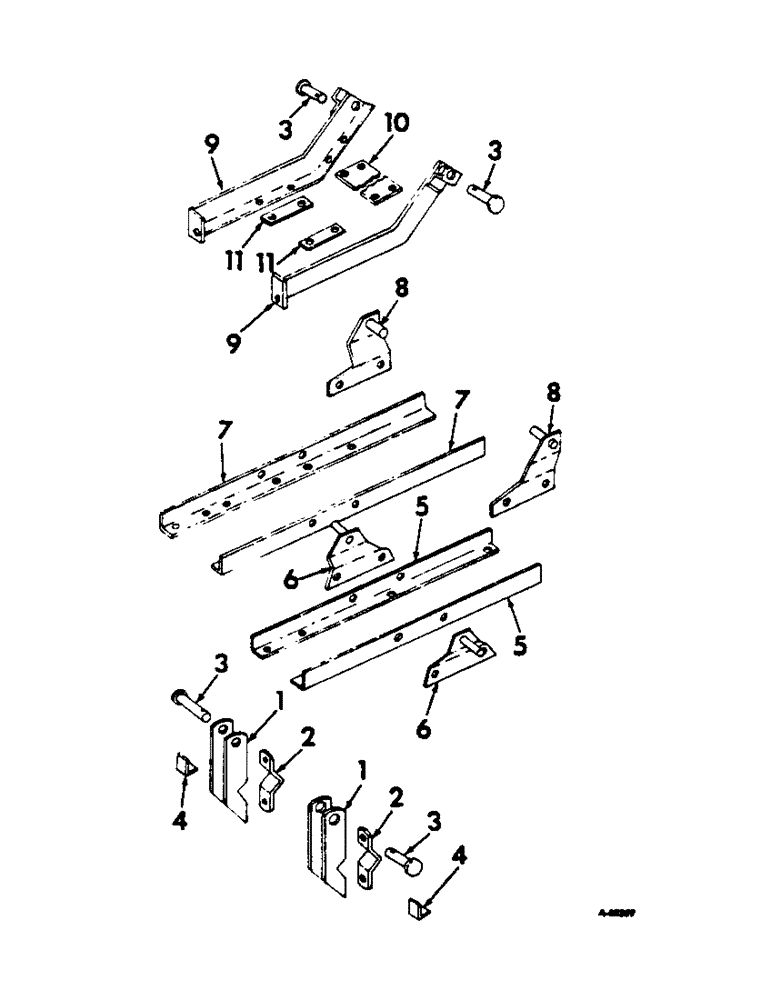

Запчасти Case IH 5 (M-4) - FRONT MOUNTING BRACKET, COMPLETE PACKAGE

1

480646R91

BRACKET ASSY, mounting, 2 for units A and B

1шт.

20795R1

BOLT, 5/8 x 3-3/4 C-Z sq-nk crg, 4 for units A and B

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 C-Z sq-nk crg, 4 for unit A

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 8 for Unit A, 4 for Unit B 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 8 for unit A, 4 for unit B

1шт.

2

480650R1

CLAMP, mounting bracket, 2 for units A and B

1шт.

3

22063R1

PIN, 7/8 x 4-1/4 C-Z std-hd, 2 for units A, B and E

1шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

4

486941R1

ANGLE, spacer, 2 for unit B

1шт.

5

486953R1

ANGLE, hitch support LH, unit C

1шт.

5

486954R1

ANGLE, hitch support RH, unit C

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

413-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

SCREW, 7/8-9 x 5 C-Z hex-hd cap

2шт.

462250R1

NUT

7/8-9 CDP hex.

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

2шт.

6

486942R1

SUPPORT ASSY, hitch pivot, 2 for unit C

1шт.

7

486955R1

ANGLE, hitch support LH, unit D

1шт.

7

486956R1

ANGLE, hitch support RH, unit D

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

4шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

608595R1

NUT

5/8-11 Gripco hex. top lock

4шт.

8

486949R1

SUPPORT ASSY, hitch pivot LH, unit D

1шт.

8

486950R1

SUPPORT ASSY, hitch pivot RH, unit D

1шт.

9

486957R1

SUPPORT ASSY, hitch LH, unit E

1шт.

9

486958R1

SUPPORT ASSY, hitch RH, unit E

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

10

486963R1

BAR, hitch support, unit E

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

11

486964R1

BAR, support clamp, 2 for unit E

1шт.

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

SCREW, 5/8-11 x 4-3/4 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.
