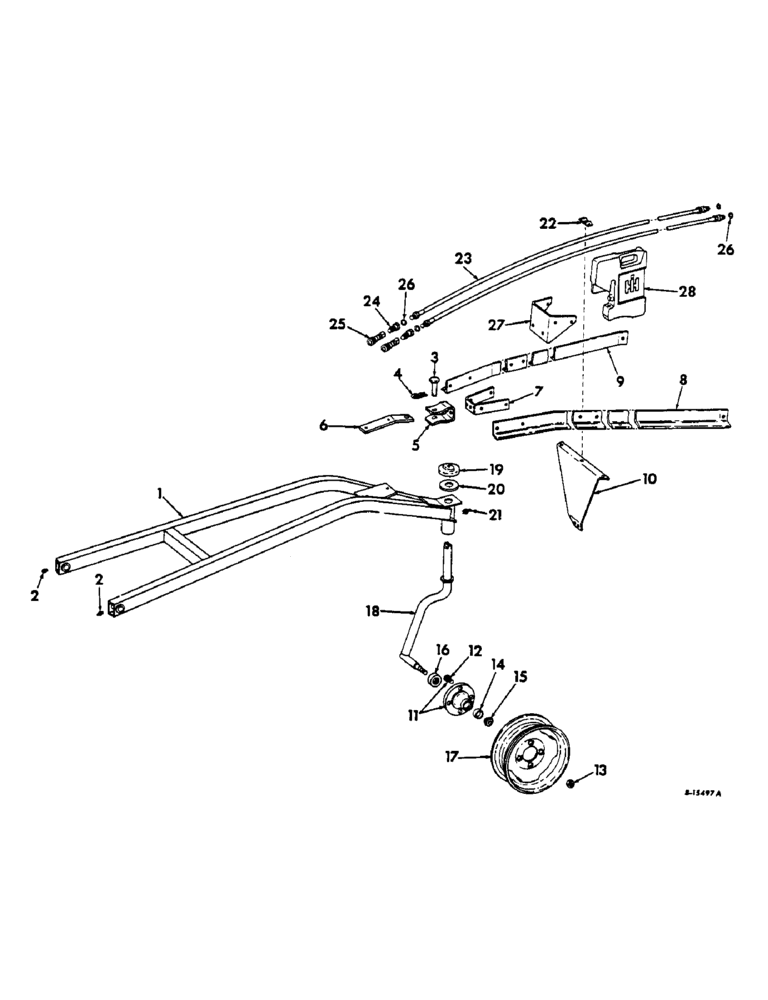

Запчасти Case IH 5 (M-2) - HITCH AND RELATED PARTS

1

480637R91

FRAME ASSY, main

1шт.

2

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, drive type 3/16 str lub, in pivot spacer

2шт.

3

480791R1

PIN

hitch, supplied w/planter

1шт.

4

520175R1

CLIP

PIN, quick attachable cot., supplies w/planter

1шт.

5

484505R1

YOKE

CLEVIS, hitch bracket

1шт.

102639

NUT,5/8"-11, G5

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

480651R1

BRACKET, hitch

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

7

472232R1

BRACKET, hitch clevis

1шт.

8

480652R1

ANGLE, tongue RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

478820R1

WASHER

21/32 x 1-3/4 x 3 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

9

480653R1

ANGLE, tongue LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

478820R1

WASHER

21/32 x 1-3/4 x 3 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

10

480654R1

PLATE, tongue brace

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

11

465870R21

HUB

ASSY, wheel

1шт.

12

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

1/2-20 x 1-5/8 wheel

4шт.

453770R1

WHEEL NUT

1/2-20 spec. hex.

4шт.

13

651194R1

CAP

wheel hub

1шт.

14

651814R1

BEARING CUP

BEARING, outer cup

1шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

1шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

16

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, inner

1шт.

17

455169R92

WHEEL

ASSY, 15 x 4-1/2KB rim for 6.70 x 15 tire, optional with 463036R1 and 608780R91

1шт.

17

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5KB rim for 7.50 x 14 or 8.00 x 14 tire, optional with 455169R92 and 608780R91

1шт.

17

608780R91

RIM

WHEEL ASSY, 14 in. electric wheel, optional with 463036R1 and 455169R92

1шт.

18

480689R91

AXLE ASSY, caster wheel

1шт.

462997R1

WASHER

wear

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

69442D

NUT

3/4-16 slt-hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

19

480659R1

CAP, axle

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

480660R1

WASHER, caster wheel rubber

1шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In caster wheel bearing pipe 1/8"-27 x .66 lg

1шт.

22

515030R1

CLAMP

hose

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

23

480663R91

HOSE ASSY.

HOSE ASSY, hydraulic, 1/2 ID x 168 in. long, for 45 mounted vibra shank cultivator. 63 series 4 row rear mounted cultivator, 26, 27 and 28 carriers w/tool bar and tillage equipment, 340 spring tooth harrow

1шт.

23

486946R1

HOSE

ASSY, hydraulic, 1/2 ID x 230 in. long, for 45 trailing vibra shank cultivator, 37, 370, 46 and 350 disk harrow

1шт.

24

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

2шт.

25

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

2шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

27

480661R1

CHANNEL, weight

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2-13 x 1-1/2 crg

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

28

383392R1

WEIGHT

67 lbs, (or as required)

3шт.

105608

NUT

1/2-13 sq

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 hex-hd cap

1шт.

480657R1

PLATE, upper hitch pivot LH, see note A

1шт.

480658R1

PLATE, upper hitch point RH, see note A

1шт.

272725

SNAP RING

SCREW, 3/4-10 x 5-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

1шт.

21218R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 5

SCREW, 3/4-10 x 5-1/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

53924D

SPACER, upper hitch point plate, see note

1шт.

18861R1

BOLT,Hex, .100 x 5.5, G2

1/8 x 5-1/2 C-Z hex-hd mach

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

9849633

NUT,1"-8, G5

1шт.
