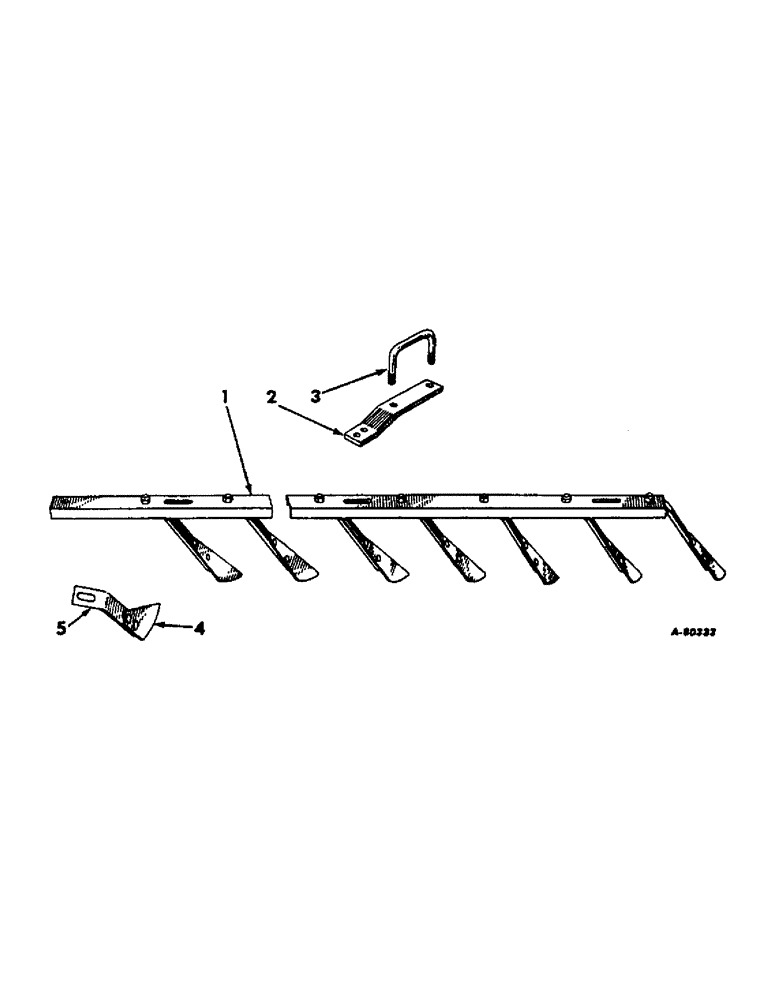

Запчасти Case IH 46 (G-08) - SCRAPERS AND SCRAPER ANGLES

1

471009R2

ANGLE

scraper LH front, will work for 472559R1, 1 for unit A

1шт.

1

474426R2

ANGLE

scraper LH front, will work for 472576R1, 1 for units B and C

1шт.

1

472561R3

BAR

ANGLE, scraper LH front, 1 for unit K

1шт.

1

472563R2

ANGLE, scraper LH front, 1 for unit M

1шт.

1

468551R2

ANGLE

scraper LH front, will work for 472565R1, 1 for unit P

1шт.

1

474428R2

ANGLE

scraper LH front, will work for 474007R1, 1 for unit B

1шт.

1

471010R2

ANGLE

scraper RH front, will work for 472560R1, 1 for unit A

1шт.

1

474427R2

ANGLE

scraper RH front, will work for 472577R1, 1 used units B and C

1шт.

1

472562R3

BAR

ANGLE, scraper RH front, 1 used unit K

1шт.

1

472564R2

ANGLE

scraper RH front, 1 used unit M

1шт.

1

468552R2

ANGLE

scraper RH front, will work for 472566R1, 1 used unit P

1шт.

1

474429R2

ANGLE

scraper RH front, will work for 474008R1, 1 used unit B

1шт.

1

479287R2

ANGLE

scraper LH front, 1 used unit D

1шт.

1

479295R2

ANGLE, scraper LH front, 1 used units E and F

1шт.

1

479289R2

ANGLE

scraper LH front, 1 used unit G

1шт.

1

479293R2

ANGLE

scraper LH front, 1 used units H and J

1шт.

1

479288R2

ANGLE

scraper RH front, 1 used unit D

1шт.

1

479296R2

ANGLE, scraper RH front, 1 used units E and F

1шт.

1

479290R2

ANGLE

scraper RH front, 1 used unit G

1шт.

1

479294R2

ANGLE, scraper RH front, 1 used units H and J

1шт.

1

479323R2

ANGLE

scraper LH front, 1 used unit L

1шт.

1

479308R2

ANGLE

scraper LH front, 1 used units N and Q

1шт.

1

479324R2

ANGLE

scraper RH front, 1 used unit L

1шт.

1

479309R2

ANGLE

scraper RH front, 1 used units N and Q

1шт.

15043R1

BOLT, 5/8 x 1-1/2 crg, 4 used units A thru J, 6 used units K thru Q

1шт.

458188R1

NUT

5/8MF uni-torque lock, 4 used units A thru J, 6 used units K thru Q

1шт.

1

468560R2

BAR

ANGLE, scraper LH rear, will work for 472568R1, 1 used units A and C

1шт.

1

472570R2

BAR

ANGLE, scraper LH rear, 1 used unit K

1шт.

1

472572R2

ANGLE

scraper LH rear, 1 used unit M

1шт.

1

472574R2

ANGLE

scraper LH rear, 1 used units P and Q

1шт.

1

468560R2

BAR

ANGLE, scraper RH rear, will work for 472569R1, 1 used units A and C

1шт.

1

472570R2

BAR

ANGLE, scraper RH rear, will work for 472571R1, 1 used unit K

1шт.

1

472573R2

ANGLE

scraper RH rear, 1 used unit M

1шт.

1

472574R2

ANGLE

scraper RH rear, will work for 474575R1, 1 used units B, P and Q

1шт.

1

479291R2

ANGLE

scraper LH rear, 1 used unit H

1шт.

1

479292R2

ANGLE

scraper RH rear, 1 used unit H

1шт.

1

479297R2

BAR

ANGLE, scraper LH rear, 1 used units D and F

1шт.

1

479299R2

BAR

ANGLE, scraper LH rear, 1 used unit E

1шт.

1

479301R2

BAR

ANGLE, scraper rear, 2 used unit G and J

1шт.

1

479297R2

BAR

ANGLE, scraper RH rear, will work for 479298R1, 1 used unit D and F

1шт.

1

479300R2

BAR

ANGLE, scraper RH rear, 1 used unit E

1шт.

1

479304R2

ANGLE, scraper LH rear, 1 used unit L

1шт.

1

479305R2

ANGLE, scraper RH rear, 1 used unit L

1шт.

1

479306R2

ANGLE

scraper LH rear, 1 used unit N

1шт.

1

479307R2

ANGLE, scraper RH rear, 1 used unit N

1шт.

15043R1

BOLT, 5/8 x 1-1/2 crg, 4 used units A thru J, 6 used units K thru Q

1шт.

458188R1

NUT

5/7MF uni-torque lock, 4 used units A thru J, 6 used units K thru Q

1шт.

2

472589R1

SUPPORT, scraper bar, 2 used on 10 bearing harrows only, 4 used units K thru Q

1шт.

3

472590R1

BOLT,3/4" - 10 x 4"

U-BOLT, gang, 2 used on 10 bearing harrows only, 4 used units K thru Q

1шт.

NUT, 3/4, 4 used on 10 bearing harrows only, 8 used units K thru Q

1шт.

WASHER, 3/4 lock, 4 used on 10 bearing harrows only, 8 used units K thru Q

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga, between scraper bar support and gang bar, 2 used on 10, bearing harrows only, 4 used units K thru Q

1шт.

4

465062R1

BLADE

scraper, 8 for unit B, 9 for unit C, 10 for units A and E, 11 for unit F, 12 for units D and H, 13 for unit J, 14 for units G and L, 16 for units K and N, 18 for units M and Q, 20 for unit P

1шт.

49-614

RIVET,Tr Hd, 3/8" x 7/8"

1шт.

RIVET, 3/8 x 7/8 truss-hd, 16 for unit B, 18 for unit C, 20 for units A and E, 22 for unit F, 24 for units A and E, 22 for unit F, 24 for units D and H, 26 for unit J, 28 for unit G and L, 32 for units K an dN, 36 for units M and Q, 40 for unit P

1шт.

5

465061R92

SCRAPER

ASSY, RH, 8 for unit B, 9 for unit C, 10 for units A and E, 11 for unit F, 12 for units D and H, 13 for unit J, 14 for unit G and L, 16 for units K and N, 18 for units M and Q, 20 for unit P

1шт.

5

465060R92

SCRAPER

ASSY LH, 8 for unit B, 9 for unit C, 10 for units A and C, 10 for units A and E, 11 for unit F, 12 for units D and H, 13 for unit J, 14 for unit G and L, 16 for units K and N, 18 for units M and Q, 20 for unit P

1шт.

618502R1

BOLT, scraper bracket, 8 for unit B, 9 for unit C, 10 for units A and E, 11 for unit F, 12 for units D and H, 13 for unit J, 14 for unit G and L, 16 for units K and N, 18 for units M and Q, 20 for unit P

1шт.

NUT, 1/2, 8 for unit B, 9 for unit C, 10 for units A and E, 11 for unit F, 12 for units D and H, 13 for unit J, 14 for unit G and L, 16 for units K and N, 18 for units M and Q, 20 for unit P

1шт.

WASHER, 1/2 lock, 8 for unit B, 9 for unit C, 10 for units A and E, 11 for unit F, 12 for units D and H, 13 for unit J, 14 for unit G and L, 16 for units K and N, 18 for units M and and Q, 20 for unit P

1шт.
