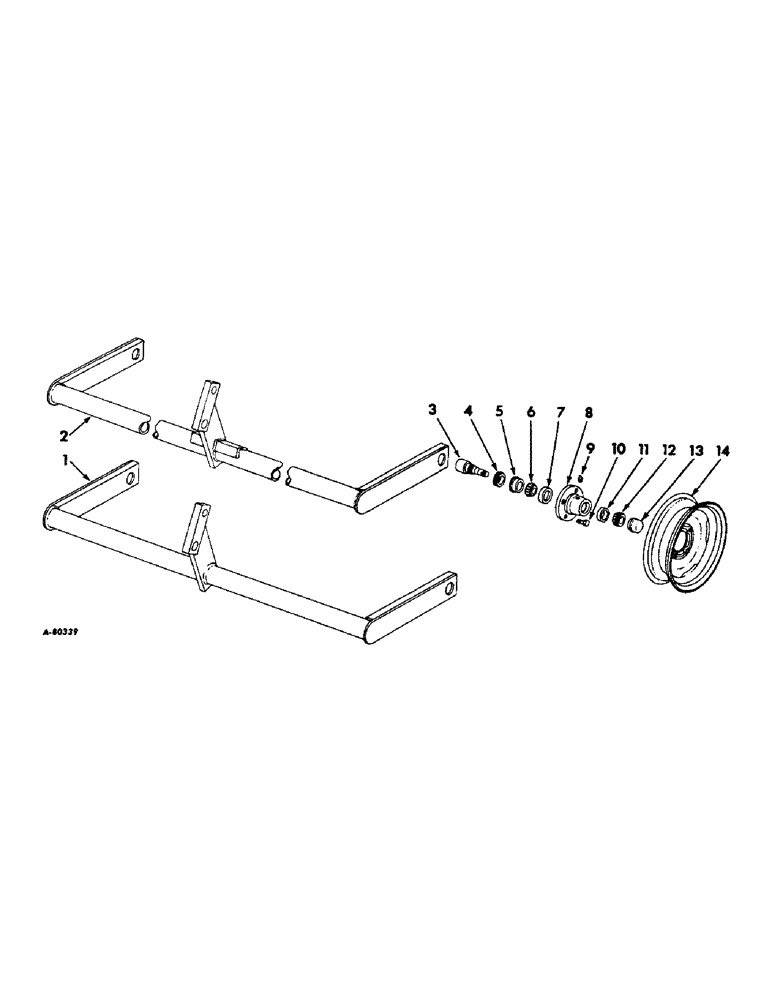

Запчасти Case IH 46 (G-07) - WHEEL AXLE, HUB AND WHEEL

1

472613R91

AXLE

ASSY, wheel, w/nuts, cotter pins and washers, 1 used for units A thru J

1шт.

.

69442D

NUT

3/4 slotted, 2 used for units A thru J

1шт.

.

PIN, 1/8 x 1-1/4 cotter, 2 used for units A thru J

1шт.

.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga, 2 used for units A thru J

1шт.

2

479344R1

AXLE ASSY, wheel w/nuts, cotter pins and washers, 80 in. wheel tread, 1 used for units L thru Q

1шт.

2

472614R91

AXLE ASSY, wheel w/nuts, cotter pins and washers, 1 used for units L thru Q

1шт.

.

69442D

NUT

3/4 slotted, 2 used for units L thru Q

1шт.

.

PIN, 1/8 x 1-1/4 cotter, 2 used for units L thru Q

1шт.

.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga, 2 used for units L thru Q

1шт.

3

472289R91

SPINDLE

W/NUTS, cotter pins and washer assy wheel

1шт.

.

69442D

NUT

3/4 slotted

1шт.

.

PIN, 1/8 x 1-1/4 cotter

1шт.

.

WASHER, 25/32 x 1-1/2 x 11 ga

1шт.

4

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

OIL SEAL, wheel hub

2шт.

5

472222R1

SLEEVE

oil seal

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE ASSY, wheel bearing inner

2шт.

7

651817R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

8

472220R11

HUB

W/SET SCREW ASSY

1шт.

.

443804

screw, 1/4UNF x 1/4 hdls-slt set

1шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 straight lub, for wheel hub

2шт.

10

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel lub, special

8шт.

11

651814R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE ASSY, wheel bearing outer

2шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

13

651194R1

CAP

wheel hub

2шт.

14

463036R1

WHEEL (STEERING)

WHEEL ASSY, disk and rim, 14 in.

2шт.

14

455169R92

WHEEL

ASSY, disk and rim, 15 in.

2шт.
