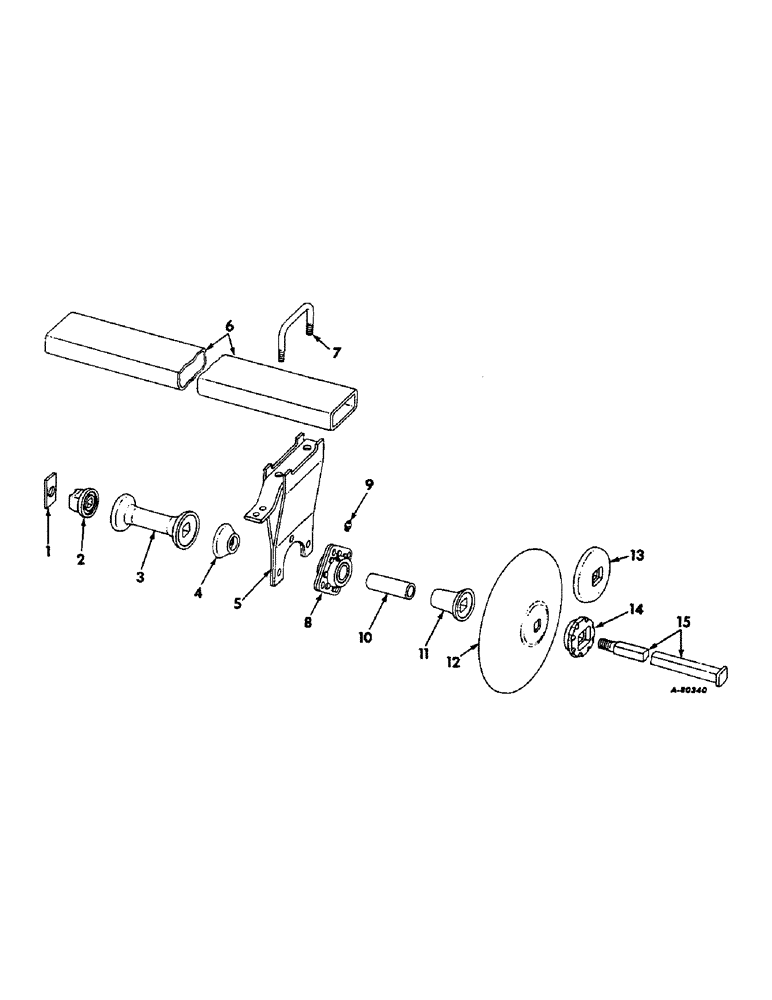

Запчасти Case IH 46 (G-05) - FRONT AND REAR GANG BARS AND DISKS

1

P34101

LOCK

arbor bolt nut

4шт.

2

PA4167

WASHER

arbor nut, 1 per arbot bolt, for units A thru H, 1 per arbor bolt

1шт.

2

481611R1

WASHER

arbor nut, for units J thru N

1шт.

3

481416R1

SPOOL

spacing, note A, will work for 468586R1, 6 for unit C, 8 for unit F, 10 for unit J, 12 for unit A, 16 for units D and Q, 20 for unit G, 22 for unit K, 26 for units M, 30 for unit P

1шт.

3

481417R1

SPOOL

spacing, note A, will work for PC3058, 4 for unit C, 6 for unit F, 8 for units B and J, 10 for unit Q, 12 for unit E, 16 for unit H, 18 for unit L and 22 for unit N

1шт.

4

472592R2

SPOOL

bearing, short, note A, 4 for units C, F, J and Q, 8 for units A, D, G, K, M and P

1шт.

4

472592R2

SPOOL

bearing, short, note B, 4 for unit Q, 10 for units K, M and P

1шт.

5

472587R91

STANDARD ASSY, bearing, note A

8шт.

5

472587R91

STANDARD ASSY, bearing, note B, 10 for units K thru Q

1шт.

6

472595R2

BAR, gang, 2 for units A, B and C

1шт.

6

472596R1

BAR, gang, 2 for units A, B, and C

1шт.

6

472597R2

TUBE

BAR, gang, 2 for units M, N and Q, 4 for units K and L

1шт.

6

472598R2

BAR, gang, 2 for units M and P

1шт.

6

472599R2

BAR, gang, 2 for units N, P and Q

1шт.

6

479302R1

TUBE

BAR, gang, 2 for units D thru J

1шт.

6

479303R2

TUBE

BAR, gang, 2 for units D thru J

1шт.

7

472590R1

BOLT,3/4" - 10 x 4"

U-BOLT, gang, 8 for units A thru J, 12 for units K thru Q

1шт.

NUT, 3/4 hex, 16 for units A thru J, 24 for units K thru Q

1шт.

WASHER, 3/4 lock, 16 for units A, thru J 24, for units K thru Q

1шт.

8

ST427A

BEARING

ASSY, 1 used per bearing

1шт.

8

ST491

BEARING

ASSY, 1 used per bearing, will work for ST427A

1шт.

BOLT, 1/2 x 1-1/2 mach

24шт.

NUT, 1/2 hex

24шт.

WASHER, 1/2 lock

24шт.

WASHER, 17/32 x 1 11 ga, 10 for units K thru Q

24шт.

BOLT, 1/2 x 1-1/2 mach, 30 for units K thru Q

1шт.

NUT, 1/2, 30 for units K thru Q

1шт.

WASHER, 1/2 lock, 30 for units K thru Q

1шт.

WASHER, 17/32 x 1 x 11 ga, 30 for units K thru Q

1шт.

9

441408R91

FITTING

1/4 tapered thd straight lub, 1 per bearing

1шт.

10

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, note A, 4 for units C, F, J and Q, 8 for units B, E, H, L and N

1шт.

10

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, note A, for units C, F, J and Q, 8 for units A, D, G, K, L, M, N and P

1шт.

10

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, note B, 6 for units K, L and N, 10 for unit Q

1шт.

10

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, note B, 4 for unit Q, 10 for unit Q, 10 fot units K, L and N

1шт.

11

472593R2

SPOOL

bearing, note A, 4 for units C, F and J, 8 for units B, E and H

1шт.

11

472591R2

SPOOL

bearing, note A

8шт.

11

472593R2

SPOOL

bearing, note B, 10 for units K thru Q

1шт.

11

472591R2

SPOOL

bearing, note B, 10 for units K thru Q

1шт.

12

651198R1

DISC

DISK, 16 in, ga notched, Serial Range: 1963-1964

1шт.

12

652761R1

DISK HARROW

DISK, 16 in. 10 ga solid alloy

1шт.

12

651197R1

DISK HARROW

DISK, 16 in. 10 ga solid alloy

1шт.

12

652762R1

DISC

DISK, 16 in. 10 ga solid alloy, Serial Range: 1963-1964

1шт.

12

143511/2

DISK, 16 in. 11 ga notched

1шт.

12

140551/2

DISK, 16 in. 11 ga solid

1шт.

12

651199R1

DISC

DISK, 18 in. 9 ga solid

1шт.

12

652763R1

DISC

DISK, 18 in. 9 ga solid alloy

1шт.

12

652764R1

DISC

DISK, 18 in. 9 ga solid alloy, order 482987R1

1шт.

12

482987R2

DISK HARROW

DISK, 18 in. 8 ga notched heavy duty

1шт.

12

143521/2

NOTCHED DISK

DISK, 18 in. 10 ga notched

1шт.

12

140561/2

DISC

DISK, 18 in. 10 ga solid

1шт.

12

651200R1

DISK HARROW

DISK, 18 in. 9 ga notched

1шт.

12

472217R1

DISK HARROW

DISK, 20 in. 8 ga solid heavy

1шт.

12

652765R1

DISC

DISK, 20 in. 8 ga solid alloy

1шт.

12

652766R1

DISC

DISK, 20 in. 8 ga solid alloy

1шт.

12

143531/2

NOTCHED DISK

DISK, 20 in. 9 ga notched

1шт.

12

31025R1

DISC

DISK, 20 in. 9 ga solid, 20 for unit B, 22 for unit C, 24 for units D and H, 30 for unit J, 32 for units G and L, 36 for units K and N, 40 for units M and Q and 44 for unit P

1шт.

13

468584R2

SQ HOLE WASHER

bumper, for front gangs only

2шт.

14

466950R2

WASHER

arbor bolt, for rear gangs only

2шт.

15

472586R2

BOLT,1 1/8"-7 x 71.9"

arbor, 4 for unit M

1шт.

15

472585R2

BOLT,1 1/8"-7 x 64.4"

arbor, 4 for unit K

1шт.

15

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor, 2 for unit C, 4 for unit B

1шт.

15

468608R1

BOLT,1 1/8"-7 x 41.3"

arbor, 2 for unit C, 4 for unit A

1шт.

15

468583R2

BOLT (SPREADER),1 1/8"-7 x 79.4"

BOLT, arbor, 2 for unit Q, 4 for unit P

1шт.

NUT, 1-1/8 hex

4шт.

15

471014R1

BOLT,1 1/8"-7 x 48.8"

arbor, 4 for units D, E and F

1шт.

15

471015R1

BOLT,1 1/8"-7 x 57.8"

arbor, 2 for unit J, 4 for unit H

1шт.

15

471013R1

BOLT,1 1/8"-7 x 56.3"

arbor, 2 for unit J, 4 for unit G

1шт.

15

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT, arbor, 2 for unit Q, 4 for unit N

1шт.

15

652939R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"

arbor, 67.4 inch, 4 for unit L

1шт.
