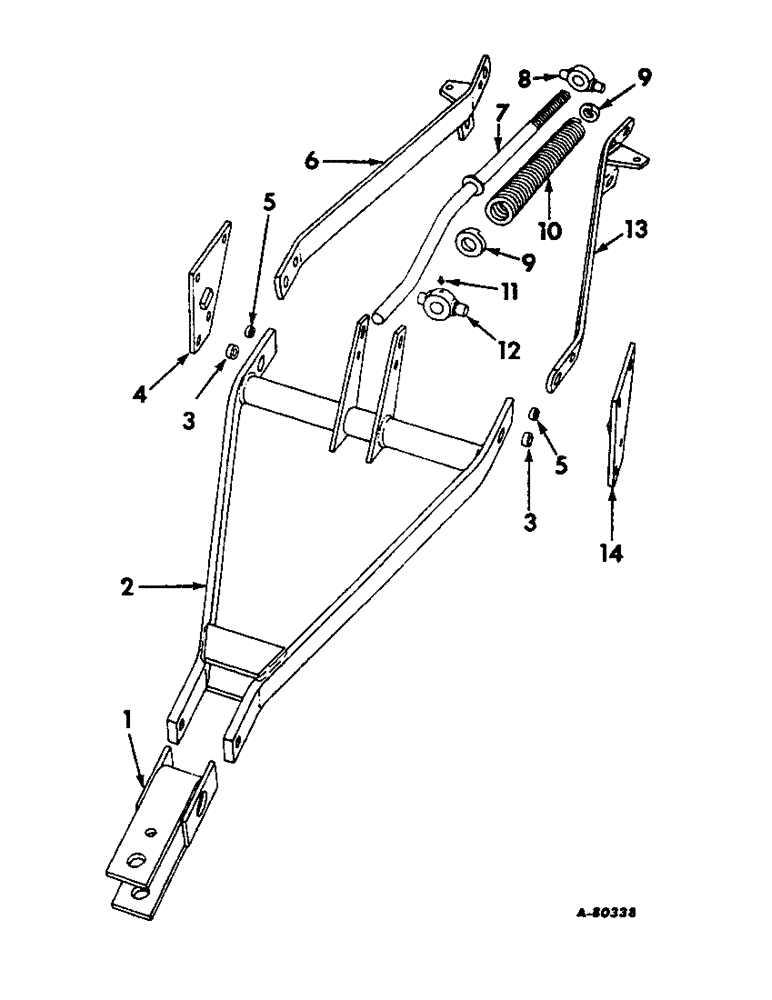

Запчасти Case IH 46 (G-04) - HITCH

1

468546R11

CLEVIS

hitch

1шт.

2

472542R91

FRAME

W/TRUNNION ASSY, hitch

1шт.

BOLT, 3/8 x 3-3/4 mach

1шт.

466715R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 5 1/4", Gr 5

BOLT, 3/4-10 x 5-1/4 special crg, hitch assy to clevis bushing

1шт.

NUT, 3/8

1шт.

NUT, 3/4

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 3/4 lock

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

3

472547R1

BUSHING

hitch pivot, frame side bar to side plate

2шт.

4

472549R91

PLATE

hitch RH

1шт.

BOLT, 5/8 x 1-1/2 mach

2шт.

BOLT, 5/8 x 2-1/2 mach

1шт.

NUT, 5/8

3шт.

NUT, 3/4

1шт.

SCREW, 3/4 x 2-1/2 cap

1шт.

WASHER, 5/8 lock

3шт.

WASHER, 3/4 lock

1шт.

5

PO11463

SPACER,3/4" Pipe x 11/16"

3/4 x .656 pipe

2шт.

6

472552R91

BRACKET, cylinder RH

1шт.

BOLT, 5/8 x 1-1/2 mach

1шт.

BOLT, 5/8 x 1-3/4 mach

1шт.

NUT, 5/8

2шт.

WASHER, 5/8 lock

2шт.

7

472556R91

CRANK

screw

1шт.

218445

NUT,Jam, 1"-8, G5

1 in. jam

2шт.

WASHER, 1-1/32 x 2 x 7 ga

1шт.

8

472558R1

PIVOT

TRUNNION

1шт.

9

PO2932

RETAINER

BLOCK, spring

2шт.

10

PO25835

SPRING

cushion

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

12

651894R3

PIVOT

TRUNNION

1шт.

13

472551R91

BRACKET, cylinder LH

1шт.

BOLT, 5/8 x 1-1/2 mach

1шт.

NUT, 5/8

1шт.

WASHER, 5/8 lock

1шт.

14

472548R91

PLATE, hitch LH

1шт.

BOLT, 5/8 x 1-1/2 mach, 1 used for units L, N and Q, 2 used for units A, B, C, D, E, F, G, H, J, K, M and P

1шт.

BOLT, 5/8 x 2-1/2 mach

1шт.

NUT, 5/8, 1 used units L, N and Q, 3 used units A, B, C, D, E, F, G, H, J, K, M and P

1шт.

NUT, 3/4

1шт.

SCREW, 3/4 x 2-1/2 cap

1шт.

WASHER, 5/8 lock, 1 used units L, N and Q, 3 used units A, B, C, D, E, F, G, H, J, K, M and P

1шт.

WASHER, 3/4 lock

1шт.
