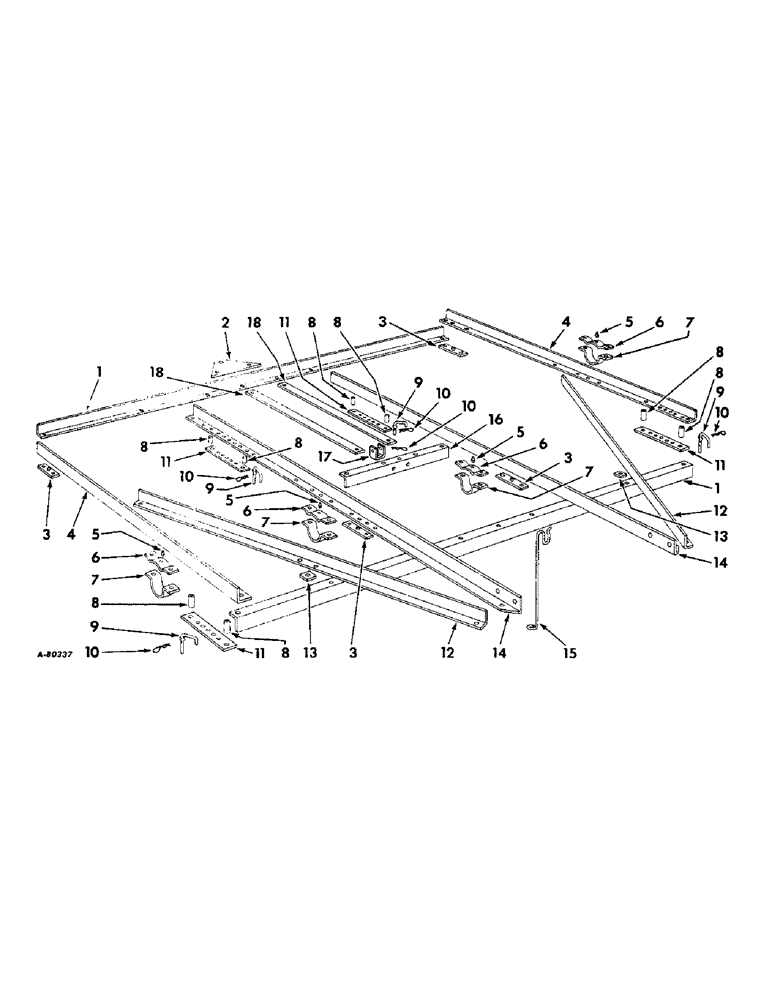

Запчасти Case IH 46 (G-02) - MAIN FRAME

1

472531R1

ANGLE

front and rear, frame, 2 used units A thru J

1шт.

1

472532R1

ANGLE, front and rear frame, 2 used units K thru Q

1шт.

1

479325R1

ANGLE, front and rear frame, 80 in. wheel tread, 2 used units K thru Q

1шт.

BOLT, 5/8 x 1-1/2 mach

8шт.

NUT, 5/8

8шт.

WASHER, 5/8 lock

8шт.

2

474006R1

PLATE, rear hitch

1шт.

3

472535R1

PLATE

STRAP, gang bar

4шт.

BOLT, 5/8 x 3-1/2 mach

8шт.

458188R1

NUT

5/8MF unitorque lock

8шт.

4

472527R2

ANGLE, outer frame LH, 1 used units A thru J

1шт.

4

472528R2

ANGLE, outer frame RH, 1 used units A thru J

1шт.

4

472529R1

ANGLE, outer frame LH, 1 used units K thru Q

1шт.

4

472530R1

ANGLE, outer frame RH, 1 used units K thru Q

1шт.

4

479313R1

ANGLE, outer frame LH, 80 in. wheel tread, 1 used units K thru Q

1шт.

4

479314R1

ANGLE, outer frame RH, 80 in. wheel tread, 1 used units K thru Q

1шт.

5

128274

LUBE NIPPLE,1/4"-28 NPT x 1.12" lg

FITTING, 1/4 straight lub

4шт.

6

652815R1

SUPPORT

BEARING, axle top

4шт.

7

652816R1

CLAMP

BEARING, axle bottom

4шт.

BOLT, 5/8 x 1-3/4 mach

6шт.

BOLT, 5/8 x 2-1/4 mach

2шт.

NUT, 5/8

8шт.

WASHER, 5/8 lock

8шт.

8

659932R1

BUSHING

stand, 8 used units A thru P

1шт.

9

472541R1

ROD

PIN, angling, 4 used unit A thru P

1шт.

10

520175R1

CLIP

PIN, quick attachable cotter, 5 used units A thru P

1шт.

11

472536R1

BAR

STRAP, gang bar, 4 used units A thru J

1шт.

11

472537R1

STRAP, gang bar, 4 used units K thru P

1шт.

BOLT, 5/8 x 3-3/4 mach, 8 used units A thru P

1шт.

NUT, 5/8, 8 used units A thru P

1шт.

WASHER, 5/8 lock, 8 used units A thru P

1шт.

12

472533R1

ANGLE

diagonal, 2 used units A thru J

1шт.

12

472534R1

ANGLE, diagonal, 2 used units K thru Q

1шт.

12

479316R1

ANGLE, diagonal, 80 in. wheel thread, 2 used units K thru Q

1шт.

BOLT, 5/8 x 1-1/2 mach

1шт.

BOLT, 5/8 x 1-3/4 mach

2шт.

NUT, 5/8

3шт.

WASHER, 5/8 lock

3шт.

13

454075R1

DRIVE CHAIN

SCRAPER, between front frame angle and diagonal angle

2шт.

14

472523R2

ANGLE

inner frame LH, 1 used units A thru J

1шт.

14

472524R2

ANGLE

inner frame RH, 1 used units A thru J

1шт.

14

472525R2

ANGLE, inner frame LH, 1 used units K thru Q

1шт.

14

472526R2

ANGLE, inner frame RH, 1 used units K thru Q

1шт.

14

479311R2

ANGLE, inner frame LH, 80 in. wheel thead, 1 used units K thru Q

1шт.

14

479312R2

ANGLE, inner frame RH, 80 in. wheel thrad, 1 used units K thru Q

1шт.

15

651793R1

SUPPORT

flexible hose

1шт.

BOLT, 5/8 x 2 mach

1шт.

NUT, 5/8

1шт.

WASHER, 5/8 lock

1шт.

WASHER, 21/32 x 1-1/2 x 11 ga

1шт.

16

472538R2

ANGLE, transport

1шт.

BOLT, 5/8 x 1-1/2 mach

2шт.

NUT, 5/8

2шт.

WASHER, 5/8 lock

2шт.

17

472540R1

CLEVIS

transport

1шт.

BOLT, 5/8 x mach

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

D3375

PIN

1/2 x 2-1/5 std-hd

1шт.

18

472539R1

BAR, weight support

2шт.

18

479317R1

BAR, weight support, 80 in. wheel tread, 2 used units K thru Q

1шт.

BOLT, 5/8 x 1-1/2 mach

2шт.

BOLT, 5/8 x 2 mach

2шт.

NUT, 5/8

4шт.

WASHER, 5/8 lock

4шт.
